SATO CL608e/CL612e - Label Cutter Kit Installation

Page 9-3
Section 9. Optional Accessories
SATO CL608e/CL612e Service Manual
PN 9001079
Rev. B
Label Cutter Kit Installation

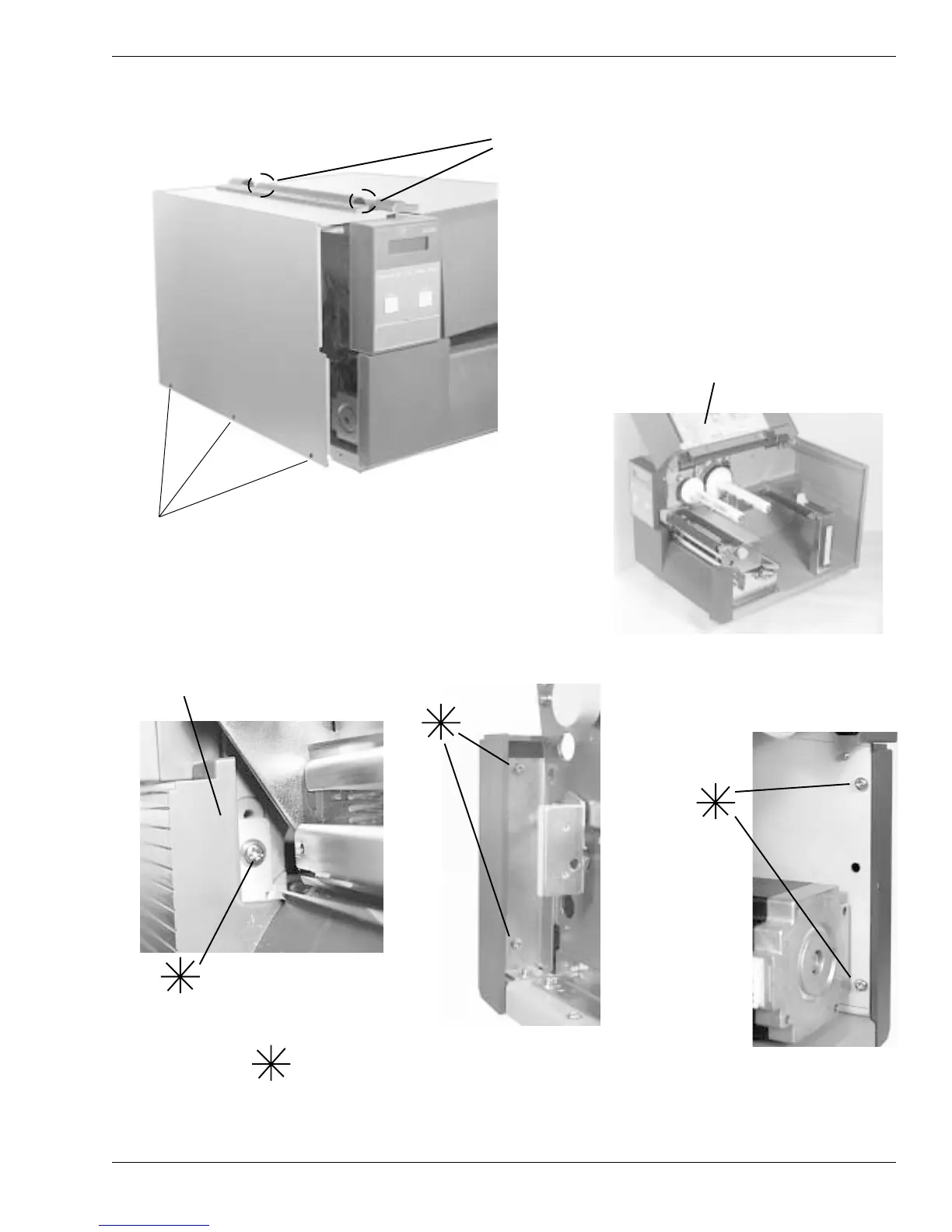

FRONT COVER
REMOVE SCREWS
AT (5) PLACES TO
DETACH FRONT
COVER
Figs. 9-2
REMOVE (3) SCREWS
Figs. 9-1
RAISE THE ACCESS
DOOR AND LOOSEN
(2) SCREWS ON THE
INSIDE TOP OF THE
PRINTER
REMOVE RIBBON AND
LABEL STOCK
