SA408 - User’s Manual
Interface Specification
This section presents the interface specifications of IO ports for
the printer. These include pin assignments, protocols and detailed
information about how to properly interface your printer with your
host or terminal.
USB Interface
T
Connector Terminal Pin Assignment
Pin
Signal
Description
1
VBUS
5V
2
D -
Differential data signaling pair -
3
D +
Differential data signaling pair +
4
GND
Ground
12
3 4
12
3 4

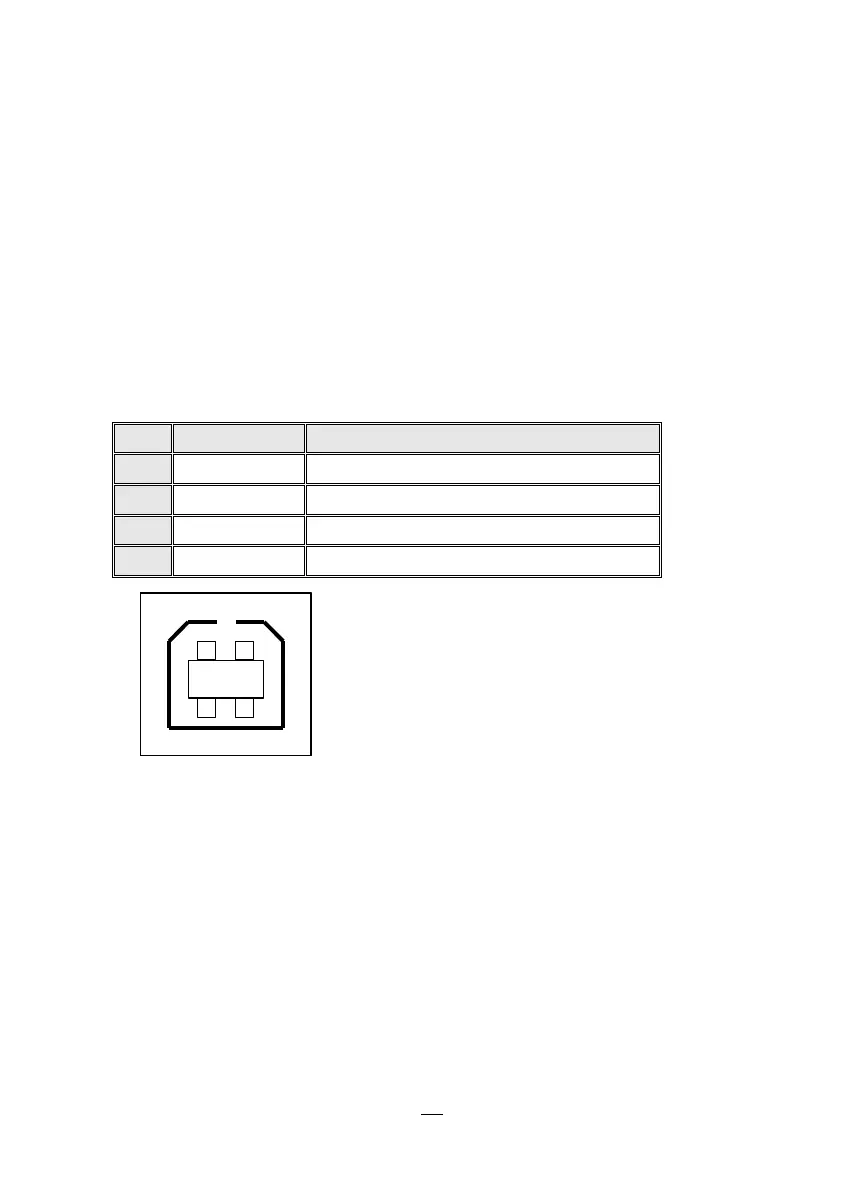

USB series “B” Receptacle Interface
