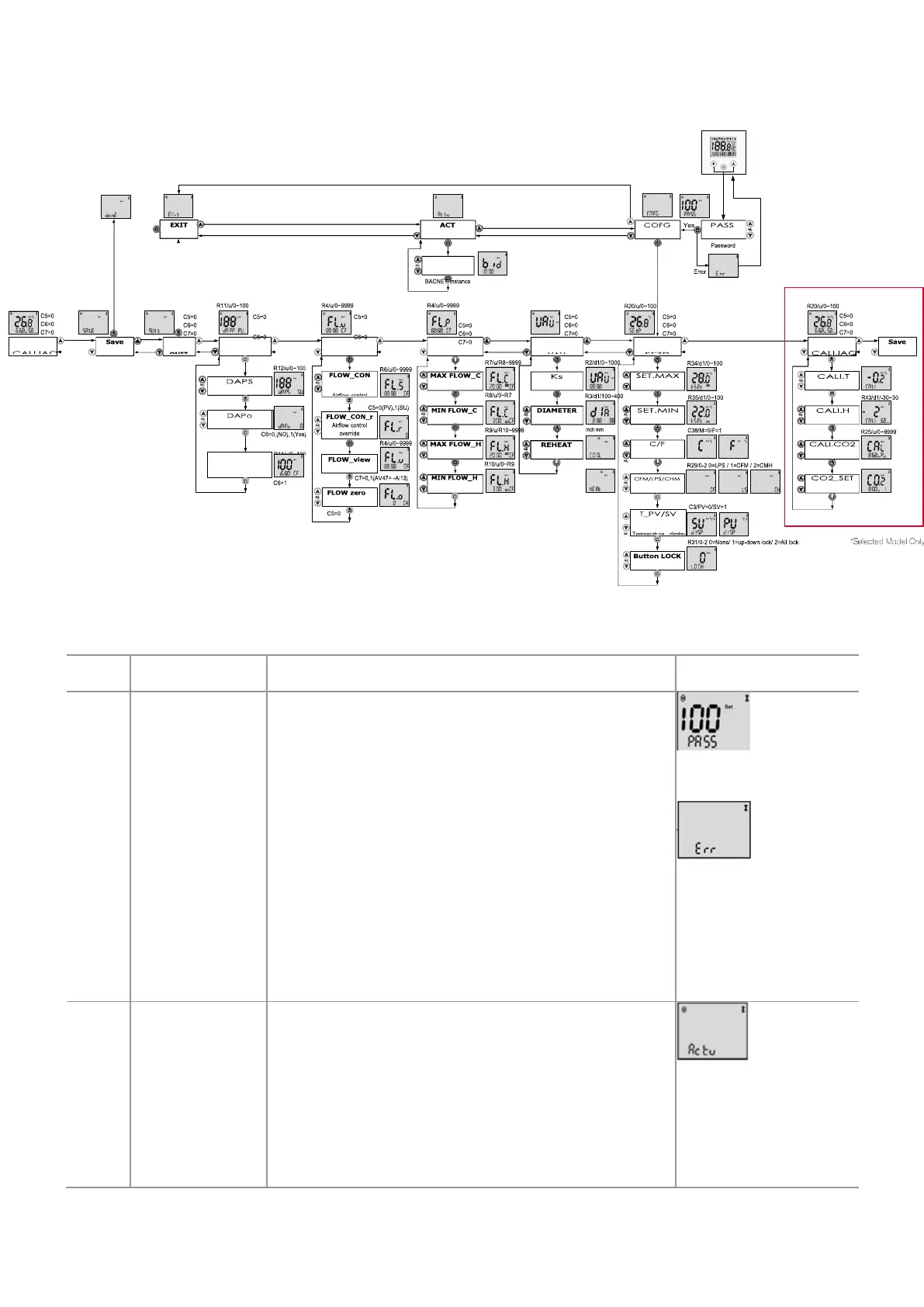

4.4 EY-RU305F700XW HMI Parameter Setting Flow Chart
4.5 Getting Started with Configuration
NO.
PROCEDURE
DETAIL STEPS
SENSOR DISPLAY
1
Entering Admin
Mode
1. Connect the EY-RU305F700XW thermostats
to ASV305BF7XXXW controller
2. Press the “UP” and “DOWN” buttons
together and hold for 3 secs.
3. If password is not changed, the password
is “100”
4. If display “ERR”, the password is wrong
5. If display “COFG”, you have successfully
entered the admin mode
Screen on password
Incorrect Password
Successfully entered
admin mode
2
Select a
configuration
function
1. Choose COFG for more configuration
setting
2. Choose “ACTu” for BACnet instance ID
configuration
3. Choose “Exit” to return to normal mode
For BACnet instance
ID
ID
Damper Position view
+
