4.8 Configuring the Airflow Set-points
The airflow set-points are to set the airflow limits for VAV terminal box. The airflow set-points include
the following functions:
1. Set Max Air flow for cooling mode
2. Set Min Air flow for cooling mode
3. Set Max Air flow for Heating mode
4. Set Min Air flow for Heating mode
Once the following procedure is set, please select “Save” or else the controller will not capture
the configuration.

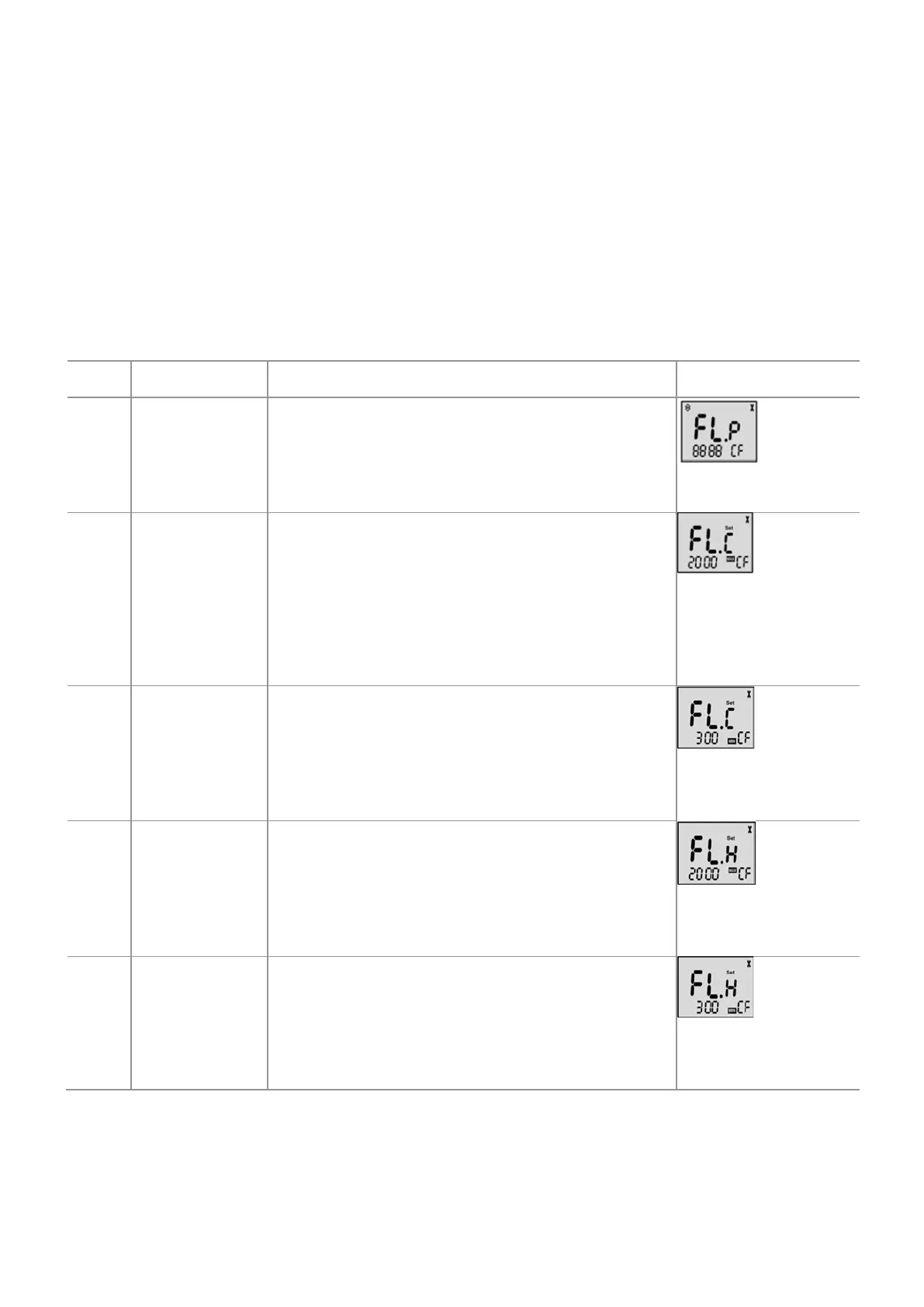

NO.
PROCEDURE
DETAIL STEPS
SENSOR DISPLAY
1
Enter Flow
parameter
configuration
1. Use the arrow to “FL.p”. Press the power
button to select it
FL. p on screen
2
Set Max Air flow
for cooling
mode
1. Once you press the power button on the
“FL. p”, you should enter “FL.C”
2. Adjustable using “up” and “down” button
from 0 to 9999 value
3. Press power button to move on to the next
function
Max Airflow for
cooling
3
Set Mom Air
flow for cooling
mode
1. Adjustable using “up” and “down” button
from 0 to 9999 value
2. Press power button to move on to the next
function
Min Airflow for
cooling
4
Set Max Air flow
for Heating
mode
1. Adjustable using “up” and “down” button
from 0 to 9999 value
2. Press power button to move on to the next
function
Max Airflow for
Heating
5
Set Min Air flow
for Heating
mode
1. Adjustable using “up” and “down” button
from 0 to 9999 value
2. Press power button to move on to the next
function
Min Airflow for
Heating
