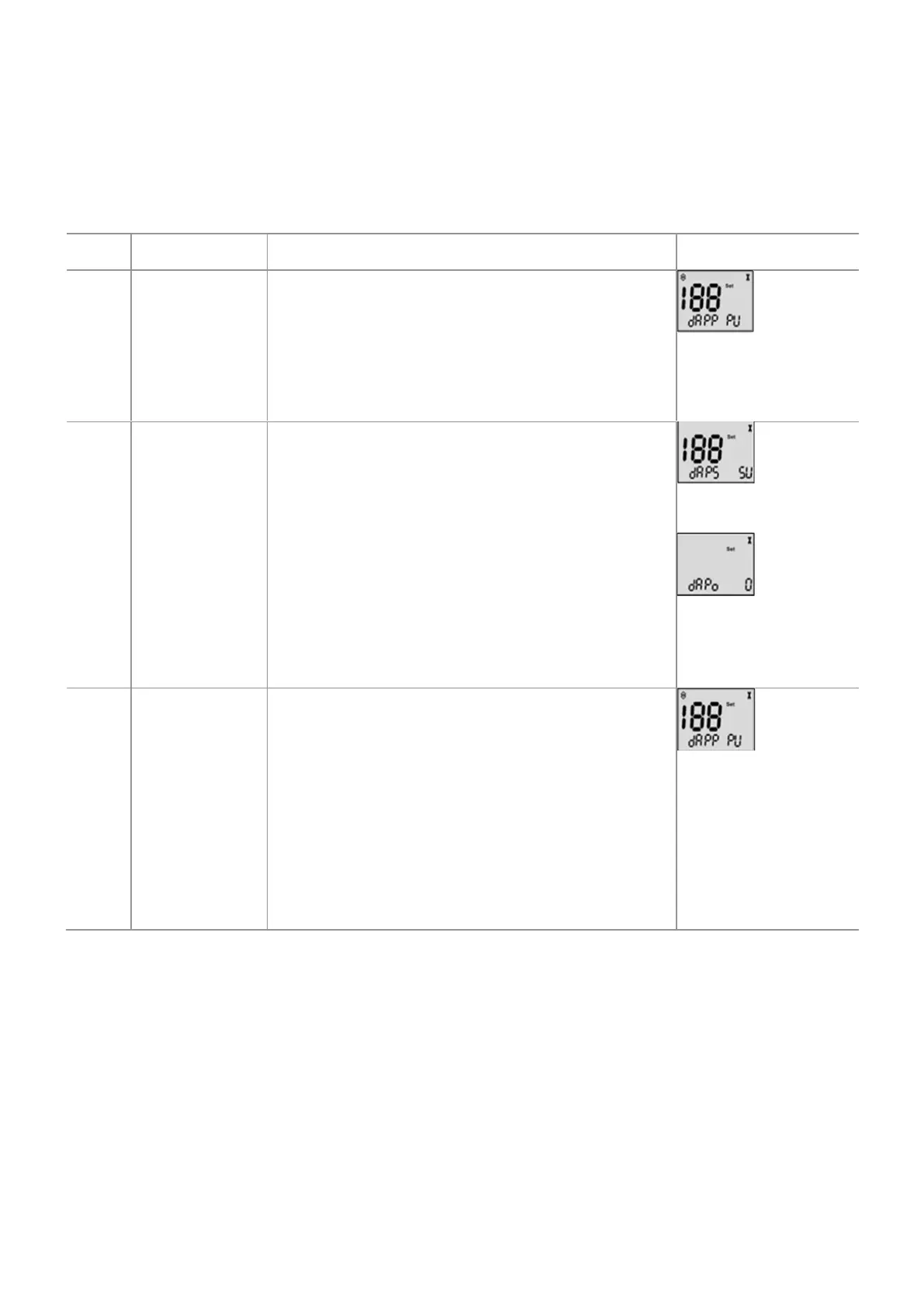

4.10 Configuring the Damper Position
The Damper position is used to measure airflow and commissioning. The damper position includes
the following functions:
1. View current damper position
2. Override current damper position
NO.
PROCEDURE
DETAIL STEPS
SENSOR DISPLAY
1
View current
Damper
Position
1. Use the arrow to “dAPP”. The value shown
is the current % of the damper position
2. Press the power button to select it
3. The number shown here is the damper
position in % value
DAPP on screen
2
Set Damper
position
1. Once you press the power button on the
“dAPP”, you should enter “dAPS”
2. Adjustable using “up” and “down” button
from 0 to 100 value. Value in %
3. Press power button to move on to double
confirm on the damper position override.
Press button after choosing your option
1 = Yes
0 = No
Damper position
Confirmation of set-
point
3
View Present
Damper
position value
1. After confirming the damper position
override, this function will let you see the
current value of the current damper
position
2. Press power button to cancel the airflow
override and move to next functions
3. Please take note that after this function,
ASV305BF7XXXW VAV actuators will move
back to its rightful position
View current Damper
Position
