Page 6 of 45
2.2.4 Communications to BACnet MS/TP
• BACNET MS/TP RS-485, 9600-76800 BPS, 1200M
• Removable terminal block
• Wire size recommended 22 – 24 AWG
• Dip Switches on end of line termination return
2.2.5 Air Flow Sensor Features
• CMOSens® Technology
• Configured as BACnet analog input object. Measuring Range up to ±500 Pa (±2 inH2O) Span
accuracy of 5%
• Zero-point accuracy 0.1pa
• Tube connections for 1/4-inch FR tubing
2.2.6 Memory
• Programs and program parameters are stored in non-volatile memory.
• Auto restart on power failure.
2.2.7 Certification
• Federal Communications Commission (FCC)
• CE Certified
• BACnet Testing Laboratory (BTL) listed as an application specific controller (B-ASC)

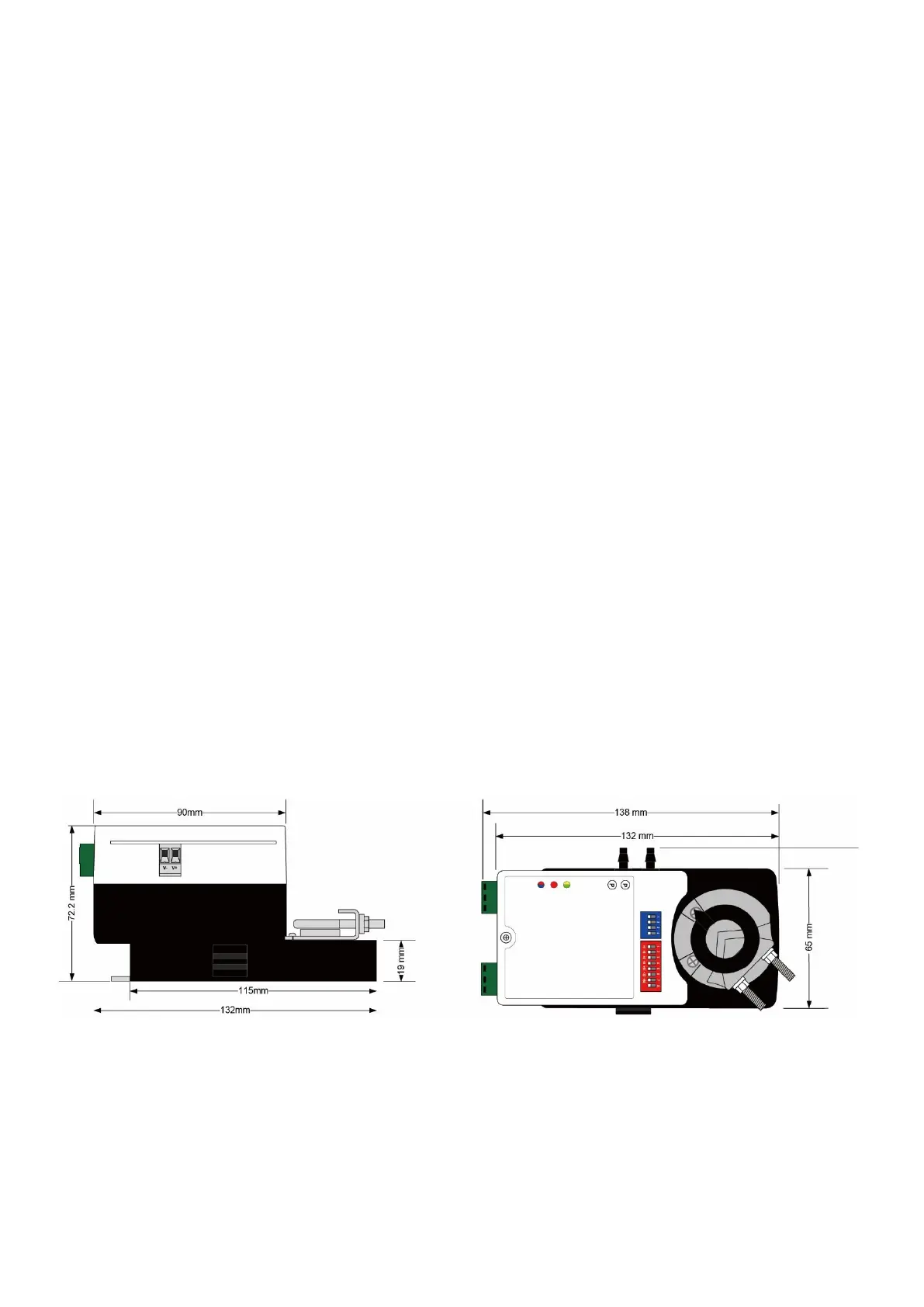

2.2.8 Actuator Specifications
Dimension (mm)
