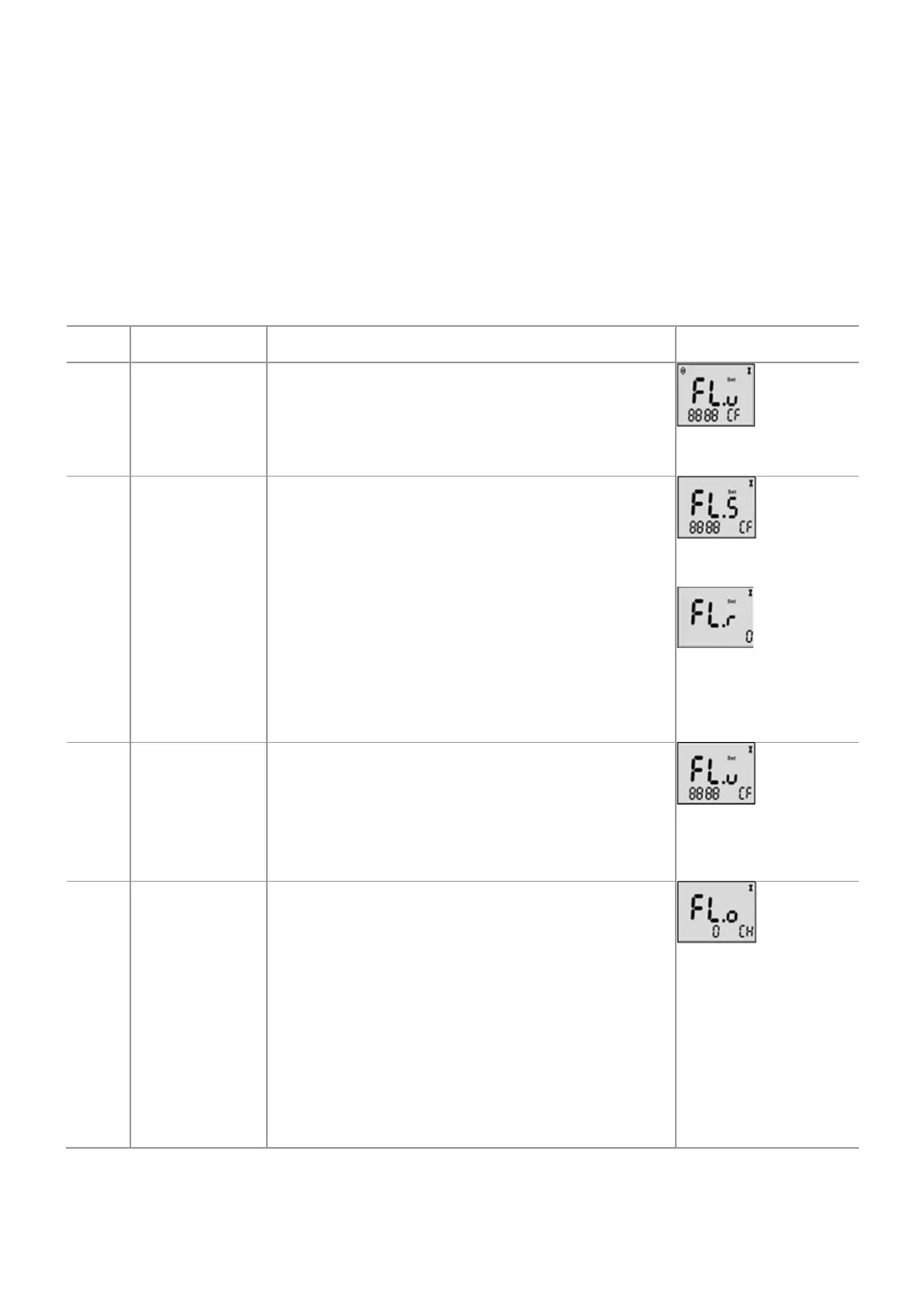

4.9 Configuring the Airflow Testing and Calibration
The airflow testing and calibration is testing of airflow and airflow zero calibration. The airflow
testing and calibration include the following functions:
1. Set Airflow control setpoint
2. View airflow present value
3. Set Airflow zeroing calibration
Once the following procedure is set, please select “Save” or else the controller will not capture
the configuration.
NO.
PROCEDURE
DETAIL STEPS
SENSOR DISPLAY
1
Enter flow
present Value
configuration
1. Use the arrow to “FL. u”. Press the power
button to select it the number shown here
is the actual airflow value
FL.u on screen
2
Set Air flow
control setpoint
1. Once you press the power button on the
“FL.u”, you should enter “FL.s”
2. Adjustable using “up” and “down” button
from 0 to 9999 value
3. Press power button to move on to double
confirm on the airflow override. Press
button after choosing your option
1 = Yes
0 = No
Airflow set-point
Confirmation of set-
point
3
View Present
airflow value
1. After confirming the airflow override, this
function will let you see the current value of
the present airflow
2. Press power button to cancel the airflow
override and move to next functions
View Present Airflow
Value
4
Flow Zeroing
Calibration
1. *Please ensure there no airflow before
doing this function
2. Once you press this button, the current
value of the airflow will be taken as 0
3. Press power button to move on to double
confirm on the zeroing process. Press
button after choosing your option
1 = Yes
0 = No
Flow Zeroing
