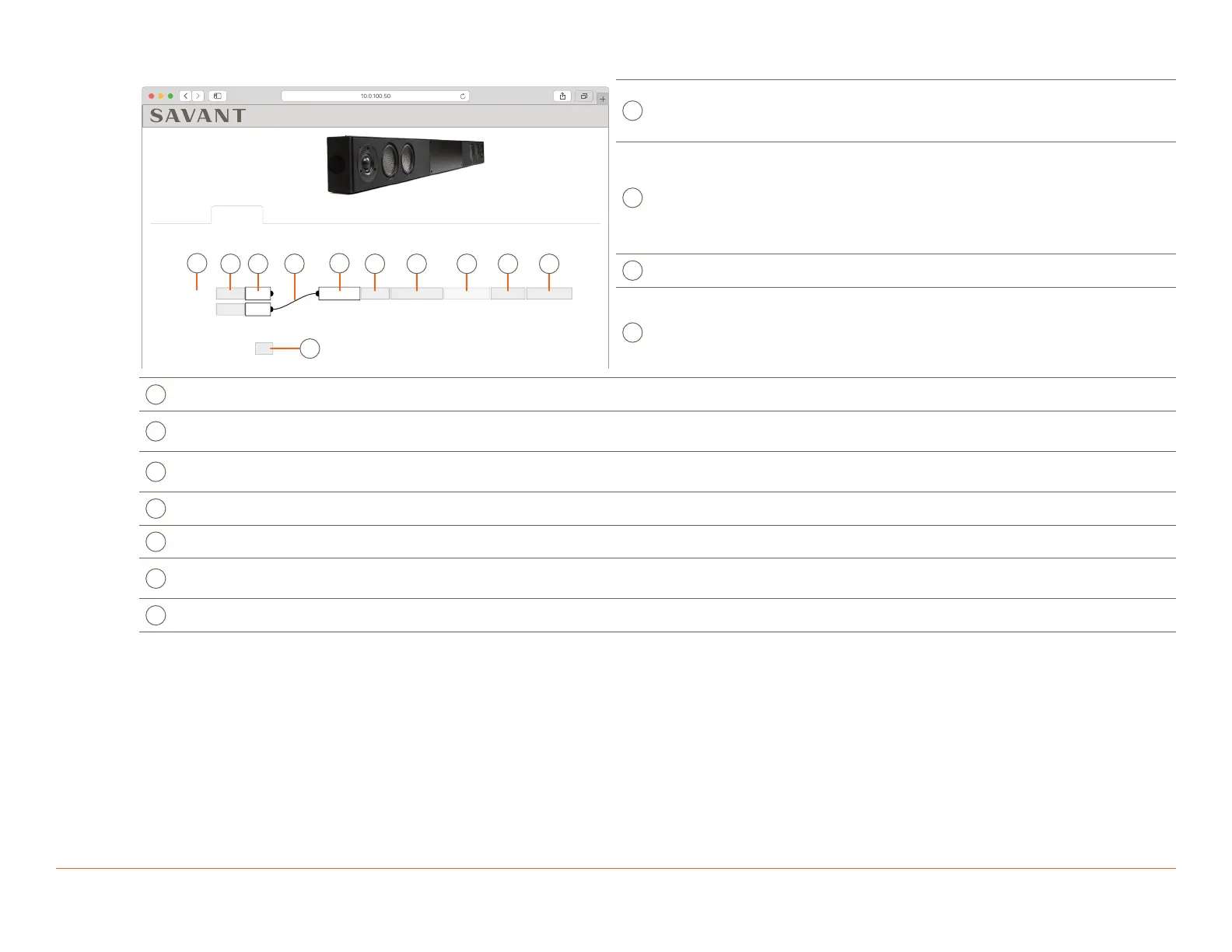

HST-STUDIOxx-2CH
10.0.100.50
46-Inch Host Soundbar, HST-STUDIO46-2CH
Status Network
Inputs & Outputs
Inputs & Outputs
Digital In
Media Server
0 dB
Subwoofer Configution
0 dB



Connector Trim
Sub
Stereo
LR Pass-Through 0/0 msProcess Volume -40
Delay
Firmware
K
JIHGF
E
DC
B
A
A
Connector Type
Digital Input (TosLink) or Media Server.
NOTE: Audio paths that originate from a dierent
AVB device do not show here.
B
Channel Trim
Adjusts the gain of the input from -10 dB to +10 dB.
For testing or troubleshooting use. Changes made
in the WebUI aect local outputs only, and are
overwritten during system startup. To permanently
adjust trim settings, apply the changes in System
Monitor.
C
Input List List of the inputs on the device.
D
I/O Connection
Indicator
Active connections are represented by a black line
between the input and output. To connect an input to
an output manually from the WebUI, click and drag to
draw the connection from the black dot on the input
to the black dot on the output.
E
Output List List of the outputs on the device.
F
Output Channels
Toggle between Stereo and Mono by clicking in this field. Mono Summing combines the left and right stereo
output channels into a single speaker channel output.
G
Left/Right Channel swap
Toggle between LR Pass-Through and LR Swap. If the Soundbar is mounted on top of a TV or is other wise
flipped over this will reverse the Left and Right Channels.
H
Process Toggle between Process or Pass-Through, this feature is disabled on the Speaker Out.
I
Delay Adjustable delay per channel from 0 - 160ms.
J
Volume
Adjusts the volume level of the output channel. For speaker outputs, the possible adjustment range varies
across dierent IP Audio devices. Changes are made in 1 dB increments.
K
Subwoofer Configuration Toggle on or o. If on it enables a fixed high pass filter at 80Hz.
