009-1839-04 | Savant IP Audio Products with Integrated Host Deployment Guide 45 Perseverance Way, Hyannis, MA 02601
200207 | © 2020 Savant Systems, LLC
9 of 25
Savant.com | 508.683.2500
4.2. HST-STUDIOxx
The IP Audio Studio Soundbar includes TV Mount Hardware. The Smart Audio WiSA Soundbar ship with only wall mount brackets. This section
illustrates installation using the TV Mount Hardware.
The TV Mount Hardware is designed to be used with the VESA Mounting points on Flat Panel Televisions. The Installer MUST verify that the TV
Mount/Stand can hold the excess weight of the Soundbar. The Soundbar can be mounted above or below a TV.
HELPFUL INFO: The slot that contains the mounting slides is the bottom of the soundbar. As long as this slot is facing down and the speakers
are facing the listener, The left/right channels will be assigned correctly by default.
Bracket Selection
The choice of bracket is based on the thickness of the TV. Ideally the Soundbar should be flush with the front of the TV.
TV Thickness Bracket Extension Minimum wall mount depth
0.9 - 1.2 in C-Shape None 1.1 in
1.8 - 2.8 in C-Shape 50 mm 1.1 in
2.7 - 3.6 in C-Shape 70 mm 1.1 in
2.1 - 2.5 in L-Shape None None
3.0 - 4.0 in L-Shape 50 mm None
3.8 - 4.7 in L-Shape 70 mm None

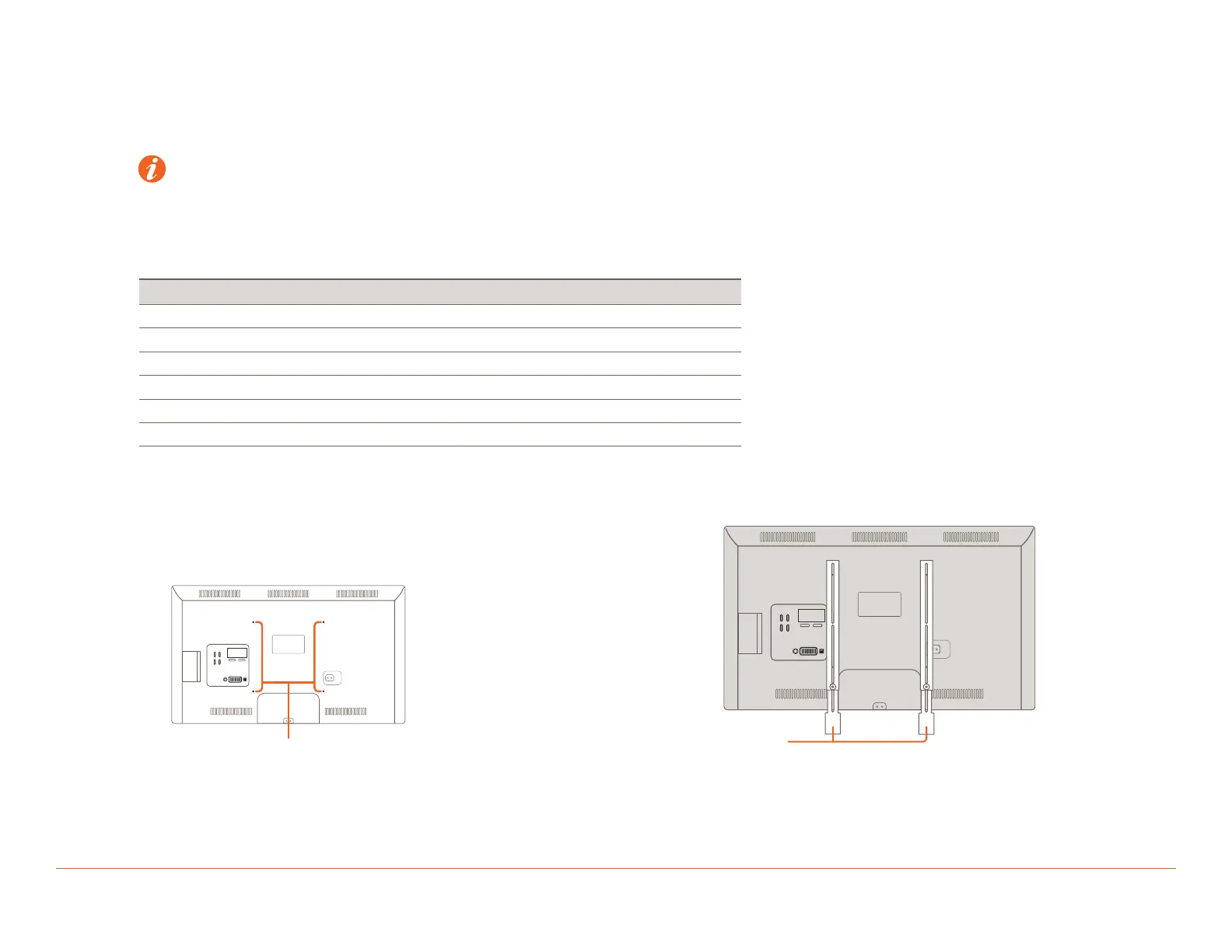

Bracket Installation
1. Remove the TV from the Mount/Stand.
NOTE: This may require two people.
2. Place the TV display side down on a soft non-abrasive surface.
3. Remove any existing Mounting bracket and screws from the
VESA mounting points.
VESA
4. Choose the desired Mounting Bracket (use the Bracket
Selection table on the previous page). Find the screws that fit
the TV’s VESA mounting points.
5. Attach the Mounting Bracket to the TV. The Soundbar brackets
should be between the TV and the TV mount.
Brackets
Aligned with the VESA mounting points
To Next Page
