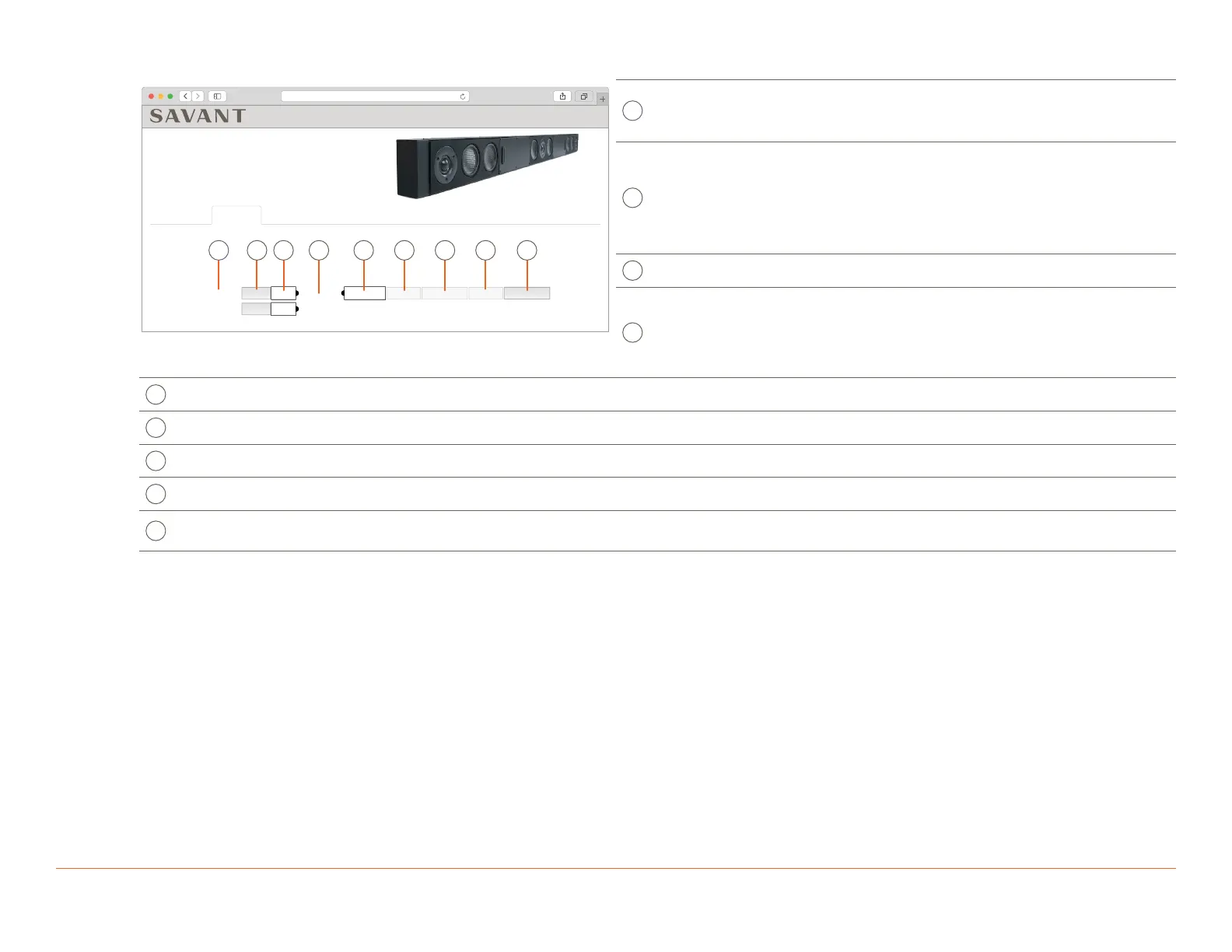

55-Inch Host Soundbar w/Surround Sound, HST-STUDIO55WS-SUR
Status Network
Inputs & Outputs
Inputs & Outputs
Calibration
Firmware
Digital In 1
DelayConnector Trim
0 dB
Media Server
0 dB
Surround Process 0/0 ms
Volume -33
IHGFEDC
A
Connector Type
Digital Input (TosLink) or Media Server.
NOTE: Audio paths that originate from a dierent
AVB device do not show here.
B
Channel Trim
Adjusts the gain of the input from -10 dB to +10 dB.
For testing or troubleshooting use. Changes made
in the WebUI aect local outputs only, and are
overwritten during system startup. To permanently
adjust trim settings, apply the changes in System
Monitor.
Input List List of the inputs on the device.
I/O Connection
Indicator
Active connections are represented by a black line
between the input and output. To connect an input to
an output manually from the WebUI, click and drag to
draw the connection from the black dot on the input
to the black dot on the output.
E
Output List List of the outputs on the device.
F
Output Channels Disabled on the soundbar set to Surround.
G
Process Toggle between Process or Pass-Through, this feature is disabled on the Speaker Out.
H
Delay Disabled on this tab. The Configuration Tab allows control of channel delay.
I
Volume
Adjusts the volume level of the output channel. For speaker outputs, the possible adjustment range varies
across dierent IP Audio devices. Changes are made in 1 dB increments.
