5. Blueprint Configuration
In order to configure the IP Audio Products with Integrated Host within Blueprint for use as both a Savant System Host and an IP Audio device, it must be
added to the configuration and Layout Window twice. Within the Component Profile Library, there are two Profiles for each component available. For
example the HST-SIPA1SM Profile should be added as the Savant Host, then dragged and dropped into the Layout Window to represent the device’s Host
function. The PAV-SIPA1SM Profile must then be added to the configuration and Layout Window for the component to function as an IP Audio device.

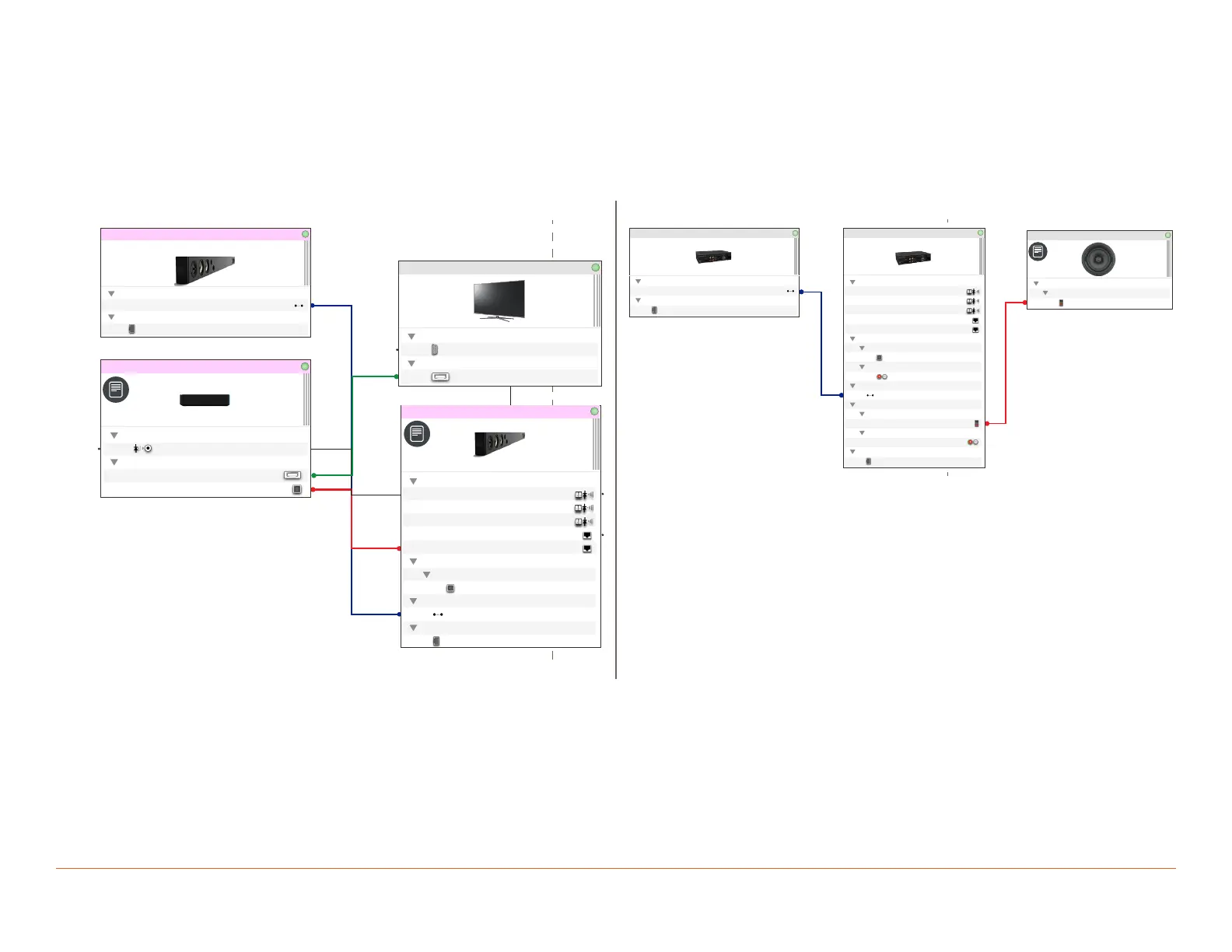

Both Profiles should be populated with the same Savant UID within Inspector. The example images below show simple Blueprint configurations with both
Host and IP Audio Profiles added as described:
Cable TV
IR
Control Ports
DIGITAL AUDIO OUT (Digital Optical)
HDMI OUT (HDMI)
Outputs
HD TV
Control Ports
Inputs
HDMI IN (HDMI)
RS232C IN
Savant Host
Outputs
Host-Device Connector (Host-Device Rela...
Data
Ethernet (Ethernet)
IP Soundbar
IR(Serial PWM) Output 1
Assigned Inputs
Host-Device Connector (Host-De...
Inputs
Data
Audio Input 1
IR(Serial PWM) Output 2
IR(Serial PWM) Output 3
RS-232 1
RS-232 2
Digital Audio In 1 (Digital Optical)
AVB_A Ethernet Port (AVB (A))
Control Ports
Speakers
Assigned Inputs
2.1 StandardWire (Stereo Speak...
SpeakerInput
Savant Host
Outputs
Host-Device Connector (Host-Device Rela...
Data
Ethernet (Ethernet)
SIPA1SM
IR(Serial PWM) Output 1
Assigned Inputs
Stereo Out 1 (Stereo Speakers)
Host-Device Connector (Host-De...
Inputs
Assigned Outputs
Data
Audio Input 1
Audio Input 2
Audio Output 1
Audio Output 2
IR(Serial PWM) Output 2
IR(Serial PWM) Output 3
RS-232 1
RS-232 2
Digital Audio In 1 (Digital Optical)
Stereo In 1 (Stereo RCA)
Stereo Out 1 (Stereo RCA)
AVB_A Ethernet Port (AVB (A))
Control Ports
