Savant IP Audio Deployment Guide Copyright © 2020 Savant Systems, LLC
009-1571-03 | 200224 26 of 39

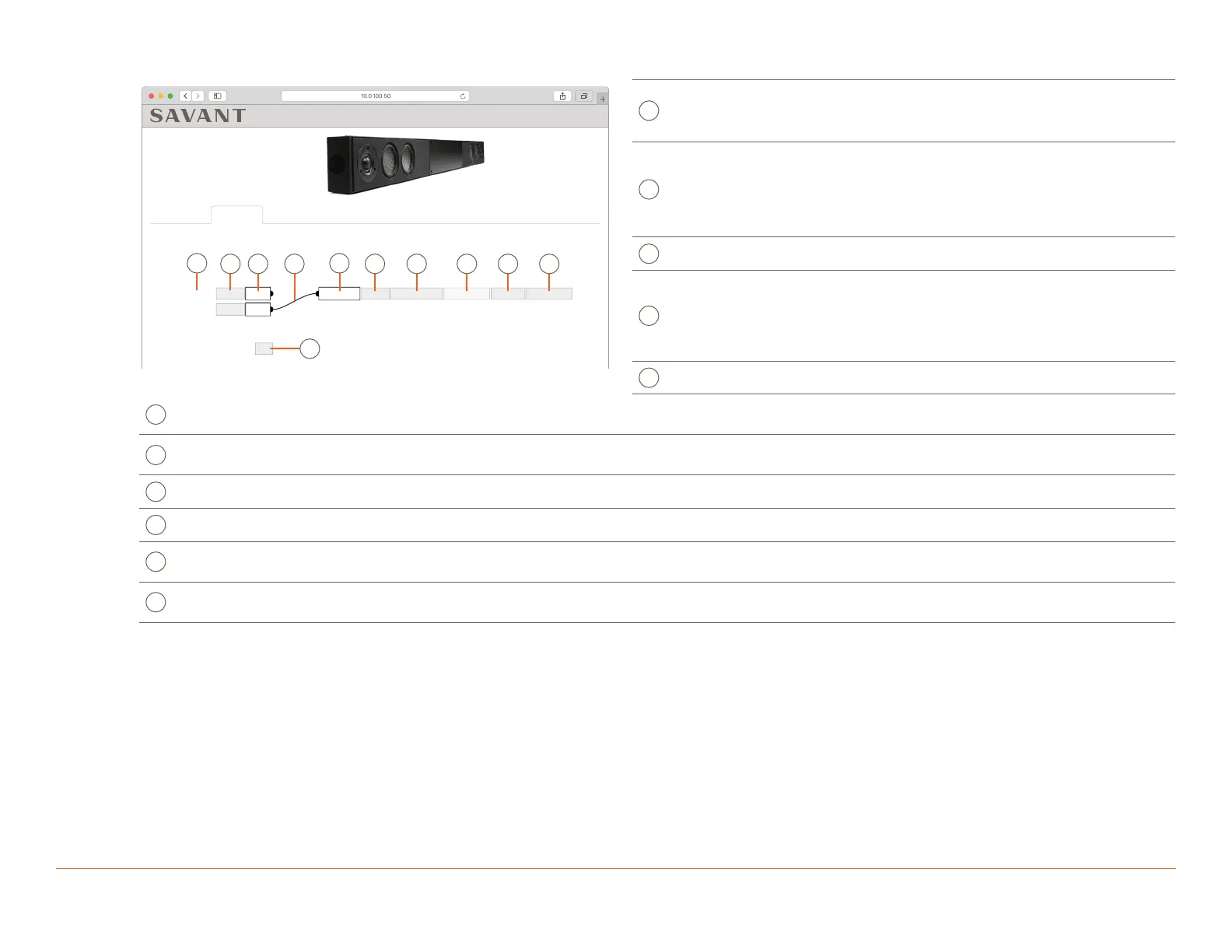

IP-STUDIOxx -2CH
10.0.100.50
46-Inch Soundbar, IP-STUDIO46-2CH
Status Network
Inputs & Outputs
Inputs & Outputs
Digital In
Media Server
0 dB
Subwoofer Configution
0 dB
Connector Trim
Sub
Stereo
LR Pass-Through 0/0 msProcess Volume -40
Delay
K
JIHGF
E
DC
B
A
A
Connector
Type
Digital Input (TosLink) or Media Server.
NOTE: Audio paths that originate from a dierent AVB
device do not show here.
Channel
Trim
Adjusts the gain of the input from -10 dB to +10 dB.
For testing or troubleshooting use. Changes made in the
WebUI aect local outputs only, and are over written
during system startup. To permanently adjust trim
settings, apply the changes in System Monitor.
C
Input List List of the inputs on the device.
D
I/O
Connection
Indicator
Active connections are represented by a black line
between the input and output. To connect an input to an
output manually from the WebUI, click and drag to draw
the connection between the black dot on the input to
the black dot on the output.
Output List List of the outputs on the device.
F
Output Channels
Toggle between Stereo and Mono by clicking in this field. Mono Summing combines the left and right input signal into
a single speaker channel output.
G
Left/Right
Channel swap
Toggle between LR Pass-Through and LR Swap. If the Soundbar is mounted on top of a TV or is other wise flipped
over this will reverse the Left and Right Channels.
H
Process Toggle between Process or Pass-Through, this feature is disabled on the IP Audio Studio devices.
I
Delay Adjustable delay per channel from 0 - 160ms.
J
Volume
Adjusts the volume level of the output channel. For speaker outputs, the possible adjustment range is dierent on the
various IP Audio devices these changes are made in 1dB increments.
K
Subwoofer
Configuration
Toggle on or o. If on it enables a fixed high pass filter at 80Hz.
