24
©
Scania CV AB 1997 01:01-02
Program 96

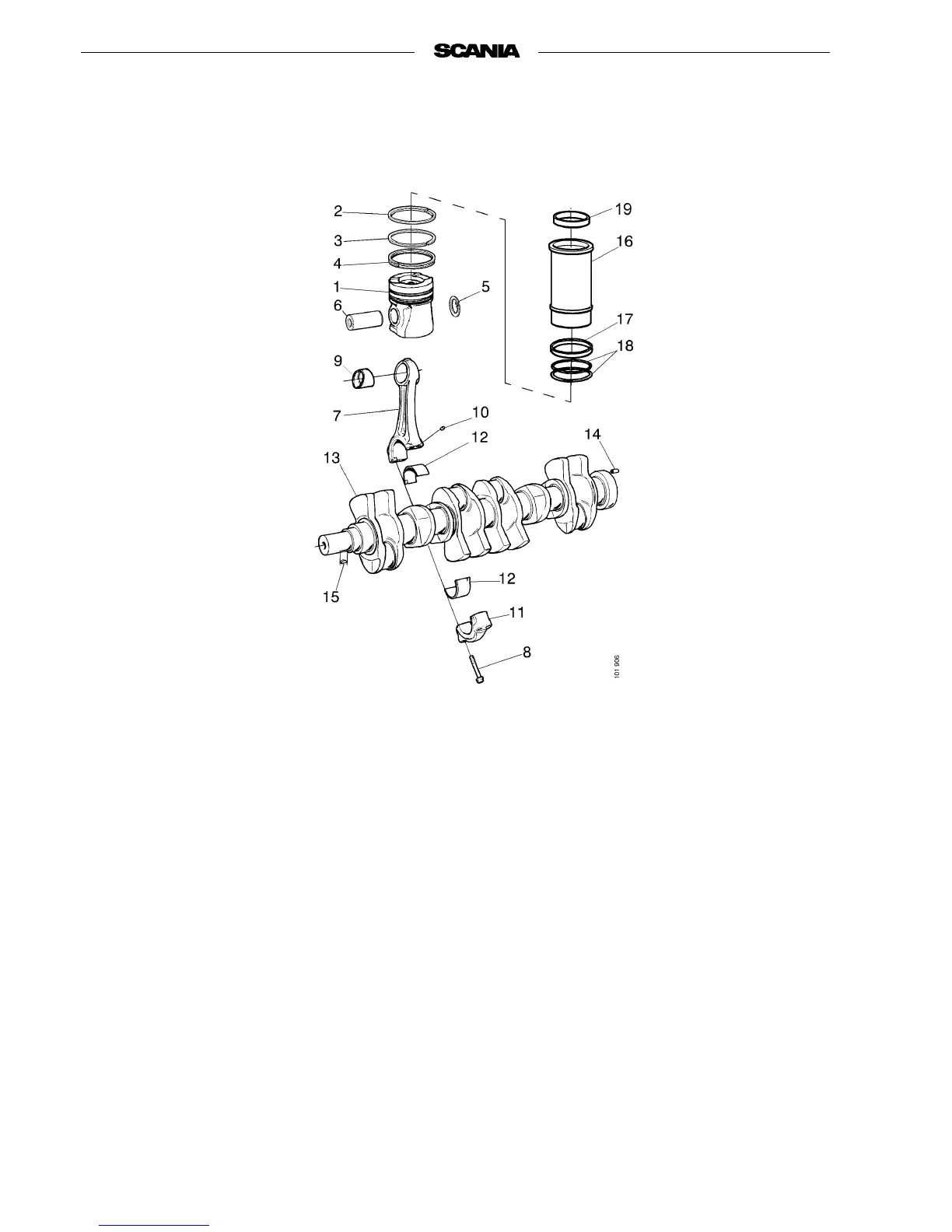

Pistons and cylinder liners
1. Piston
2. Compression ring
3. Compression ring
4. Oil scraper ring
5. Retaining ring
6. Gudgeon pin
7. Connecting rod
8. Flange bolt
9. Bushing
10. Pin
11. Bearing cap
12. Big-end bearing
13. Crankshaft
14. Pin
15. Key
16. Cylinder liner
17. Seal
18. O-ring
19. Loose ring
