Scania CV AB 1997 01:01-02
Program 96
Removing cylinder liner
1. Mark the liners with the numbers 1-6. Mark-
ing is essential to make it possible to fit the
liners in the same place and same position as
previously.
2. Extract the cylinder liner using puller
99 066 and support plate 99 007 with or with-
out hydraulic tool.
3. Remove seals from cylinder block.
Measuring cylinder liner height
- Insert the liner without seals and press it down
using two tension lugs 98 515. Tighten bolts to
50 Nm.
- The cylinder liner and mating surfaces in the
block must be carefully cleaned before taking
measurements. Use a wire brush and carefully
scrape of carbon deposits.
- Place straight edge 87 198 with dial gauge
98 075 on the liner and reset the dial gauge
against the liner (A).
- Slide the tip of the dial gauge across to the
block (B) and measure the height of the liner
(A-B) as shown in the figure.
- Measure each liner at two diametrically oppo-
site points.

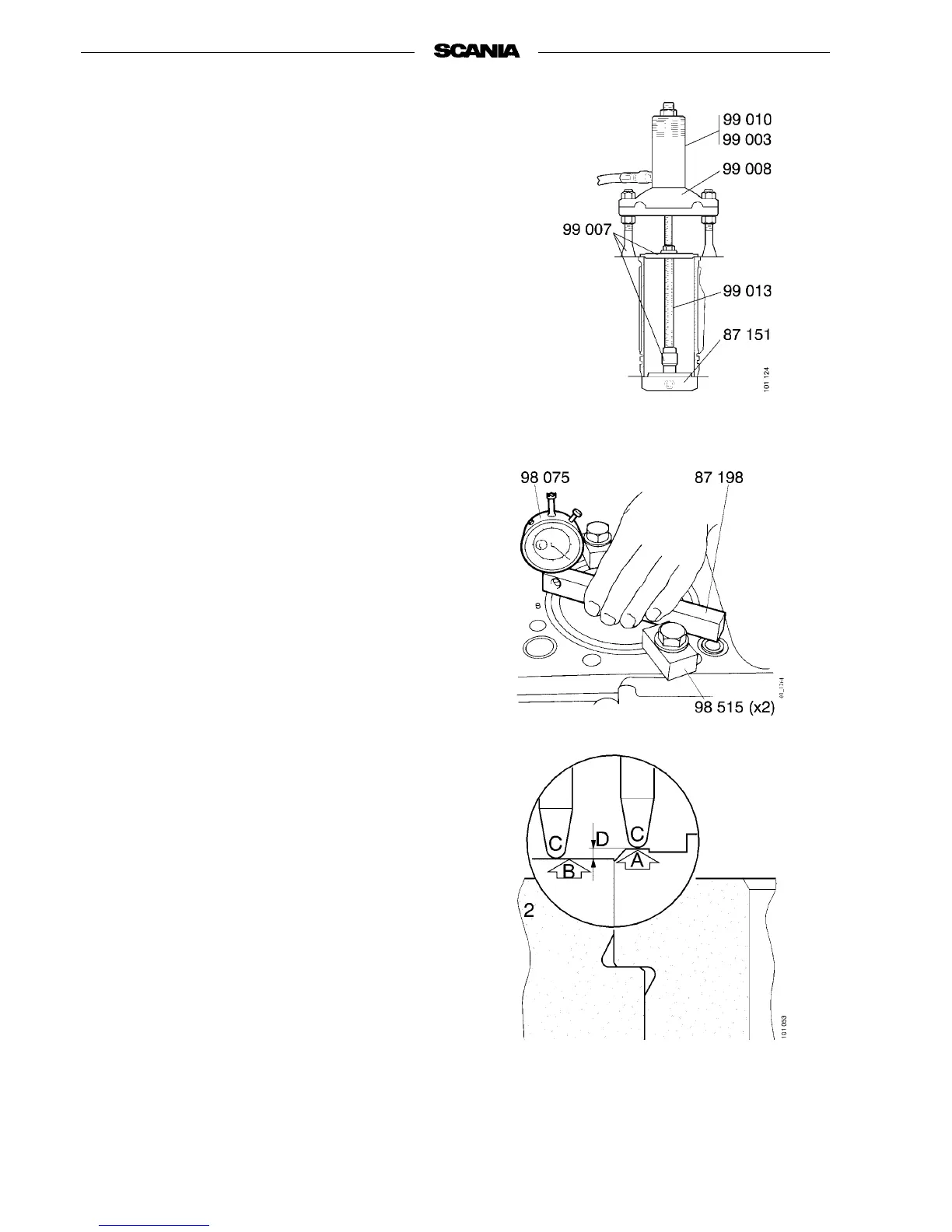

Puller for cylinder liner with
hydraulic hole cylinder
A Measuring surface on cylinder liner
B Measuring surface on cylinder
block
C Measuring tip
D Cylinder liner height D = A-B
