Timing gear cover
Removing
1. Remove components that are in the way:
radiator, fan ring, fan, belt guard, alternator,
V-belt, belt tensioner, tensioning rollers, fan
drive, alternator bracket.
2. Turn the engine over to the ignition position.
3. Undo the crankshaft damper bolts and those
for the belt pulley, if fitted. Remove the
crankshaft damper and belt pulley, if fitted.
Take care to avoid damaging the crankshaft
damper.

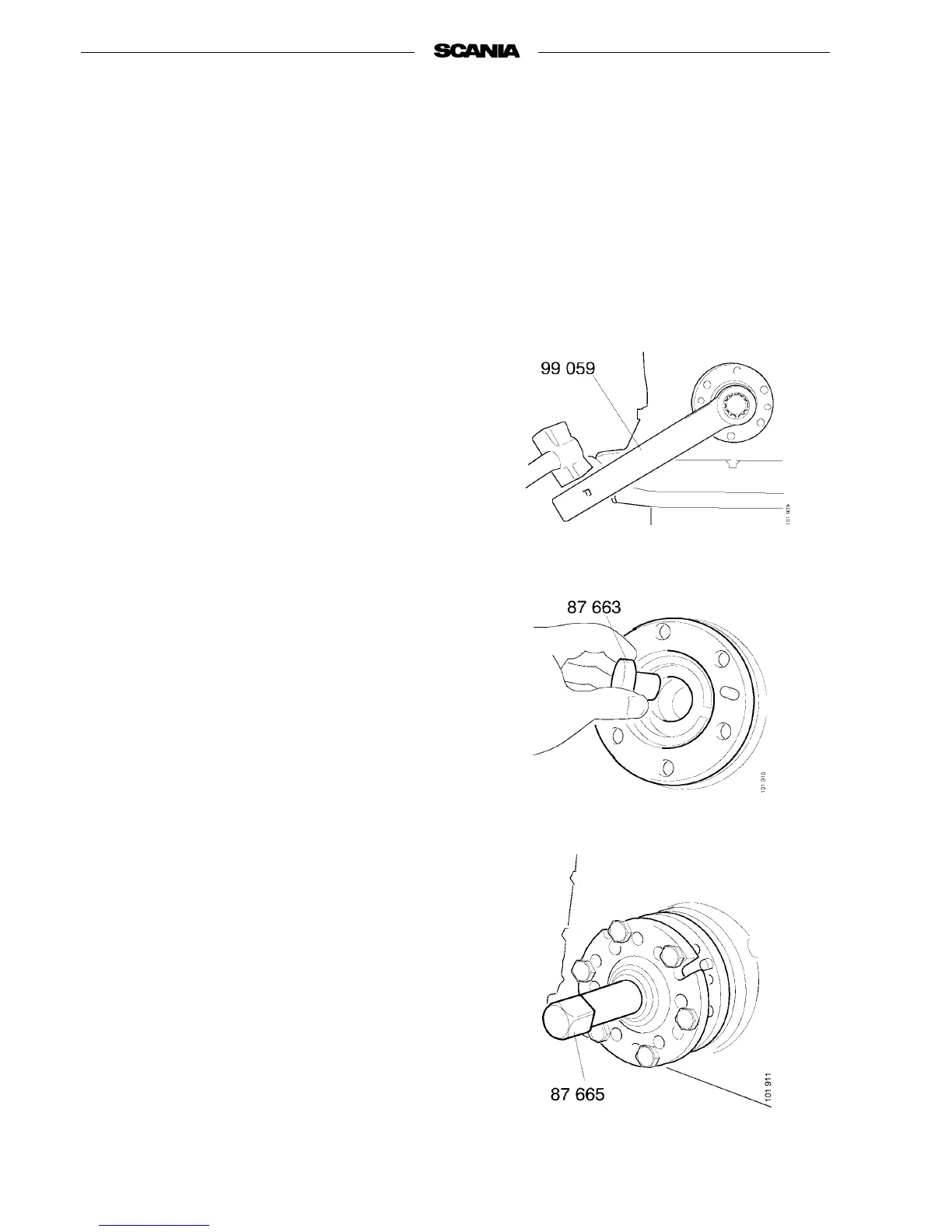

4. Remove the crankshaft bolt in front of the
damper hub.
Use slogging wrench 99 059.
5. Fit support drift 87 663 in the end of the
crankshaft.
6. Screw on puller 87 665 with all six bolts. Pull
the hub out 2-5 mm. Then unscrew the bolt a
few turns and tap the hub in to loosen the
cone.
7. Pull the hub off altogether.
8. Remove the seal using slide hammer 87 596.
Protect the end of the crankshaft against
scratches.
9. Engine equipped with compressor:
Remove the coolant manifold between the
coolant pump and compressor.
10. Undo the three compressor retaining bolts in
the timing gear housing. Extract the compres-
sor and gear.
