Scania 9-Series User Manual

38
©
Scania CV AB 1997 01:01-02
Program 96

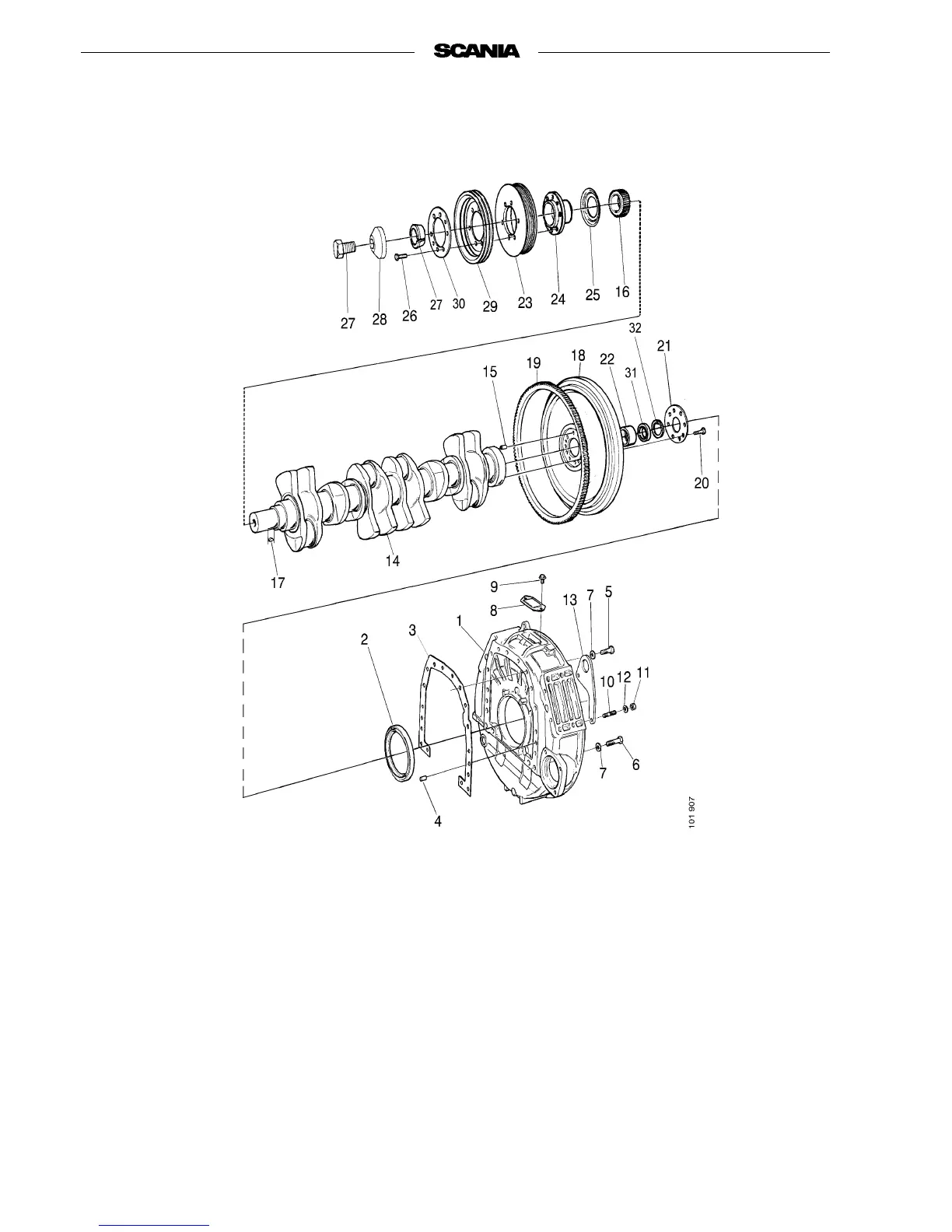

Flywheel and flywheel housing
1. Flywheel housing
2. Shaft seal
3. Gasket
4. Pin
5. Hexagon bolt
6. Hexagon bolt
7. Washer
8. Cover
9. Tapping screw
10. Stud
11. Locknut
12. Washer
13. Lifting eye
14. Crankshaft
15. Pin
16. Crankshaft gear
17. Key
18. Flywheel
19. Ring gear
20. Hexagon bolt
21. Washer
22. Guide sleeve (not stand-
ard)
23. Oscillation damper
24. Hub
25. Oil deflector
26. Bolt
27. Taper ring
28. Washer
29. Pulley (not standard)
30. Washer
31. Ball bearing (not stand-
ard)
32. Retaining ring (not
standard)
