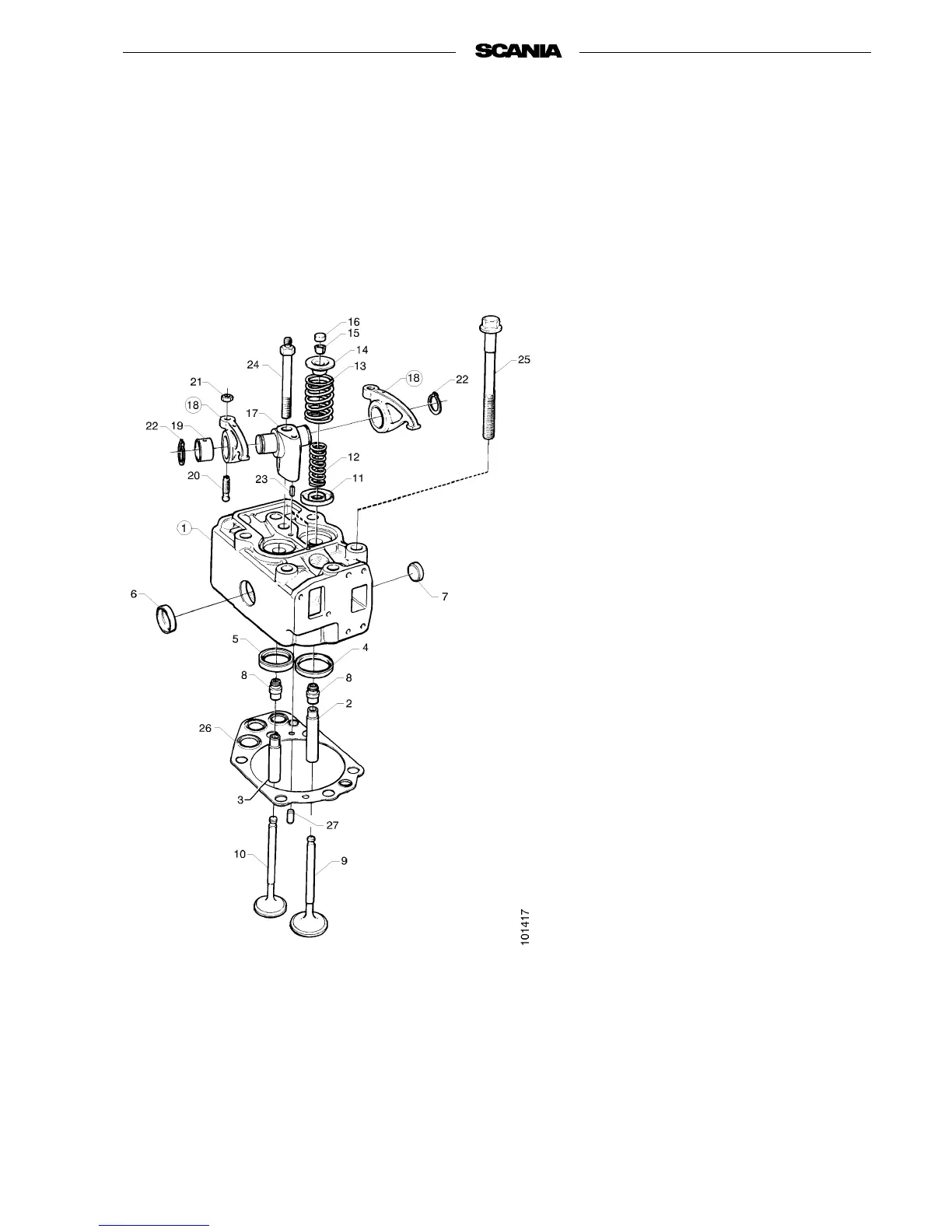

Cylinder head
1. Cylinder head
2. Valve guide
3. Valve guide
4. Valve seat ring
5. Valve seat ring
6. Core plug
7. Core plug
8. Seal (not standard)
9. Intake valve
10. Exhaust valve
11. Valve spring collar
12. Valve spring
13. Valve spring
14. Valve spring collar
15. Collet
16. Valve stem cap
17. Bearing bracket
18. Rocker arm
19. Bushing
20. Adjusting screw
21. Hexagon nut
22. Retaining ring
23. Spiral pin
24. Bolt
25. Flange bolt
26. Cylinder head gasket
27. Pin
