8
©
Scania CV AB 1997-05:2 01:01-02
Program 96
Removing
1. Remove the intake manifold, exhaust mani-
fold and turbocharger.
2. Remove the coolant manifold.
3. Remove the delivery pipes. Protect the con-
nections on the injection pump and injectors
with plastic plugs.

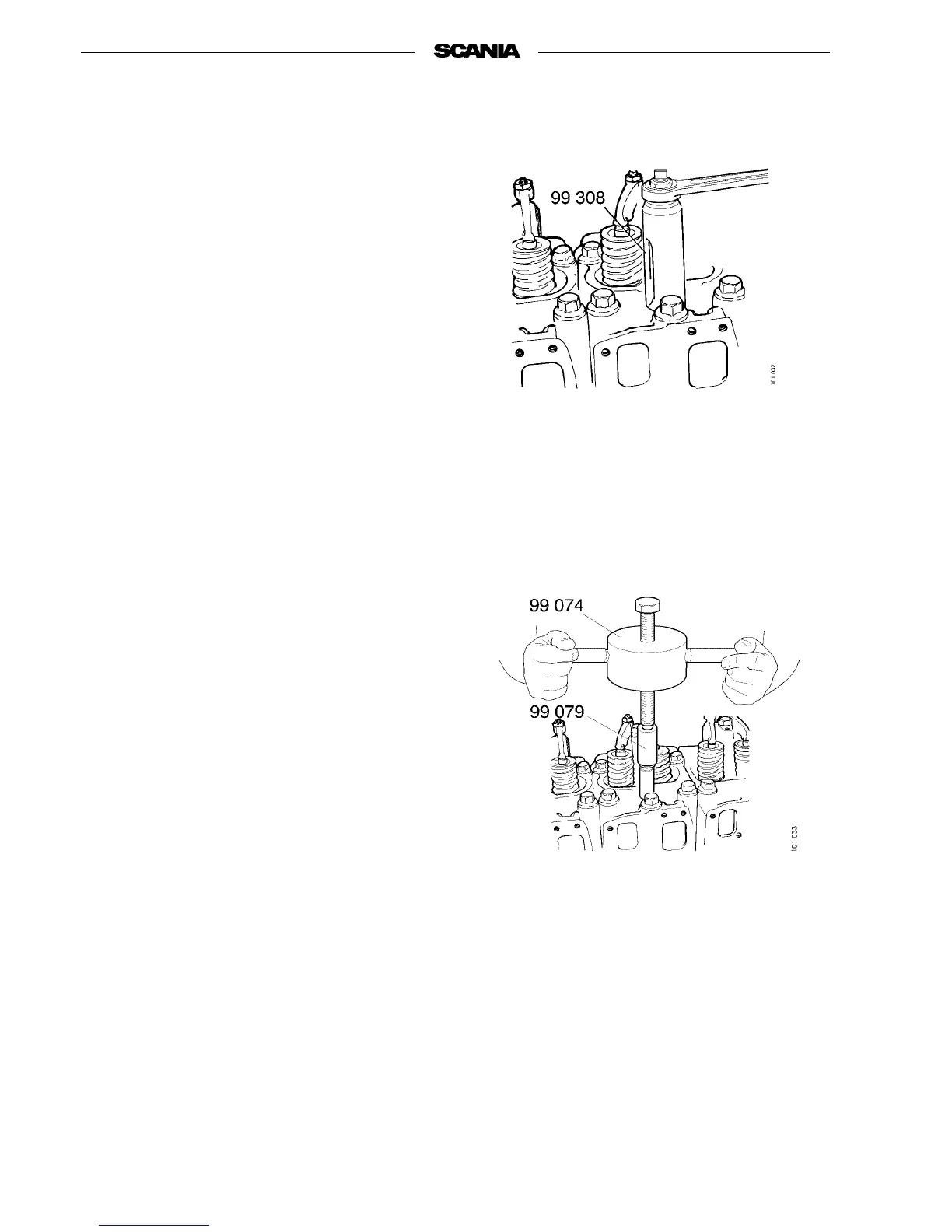

4. Undo the injector nut using socket 99 308.
5. Extract the injectors using tools 99 079 and
99 074. Remove the copper washers using
tool 87 125.
6. Insert protective plugs in the ends of the
delivery pipes and fit protective caps on the
injectors and injection pump.
Note All parts in the valve mechanism
should be refitted in the same posi-
tions. For this reason, mark all parts
that are removed.
7. Unscrew the rocker arm mechanism.
8. Lift out the pushrods.
9. Remove the cylinder head bolts. Lift off the
cylinder head.
Place it on a bench on a soft surface to avoid
damage to the mating surface.
