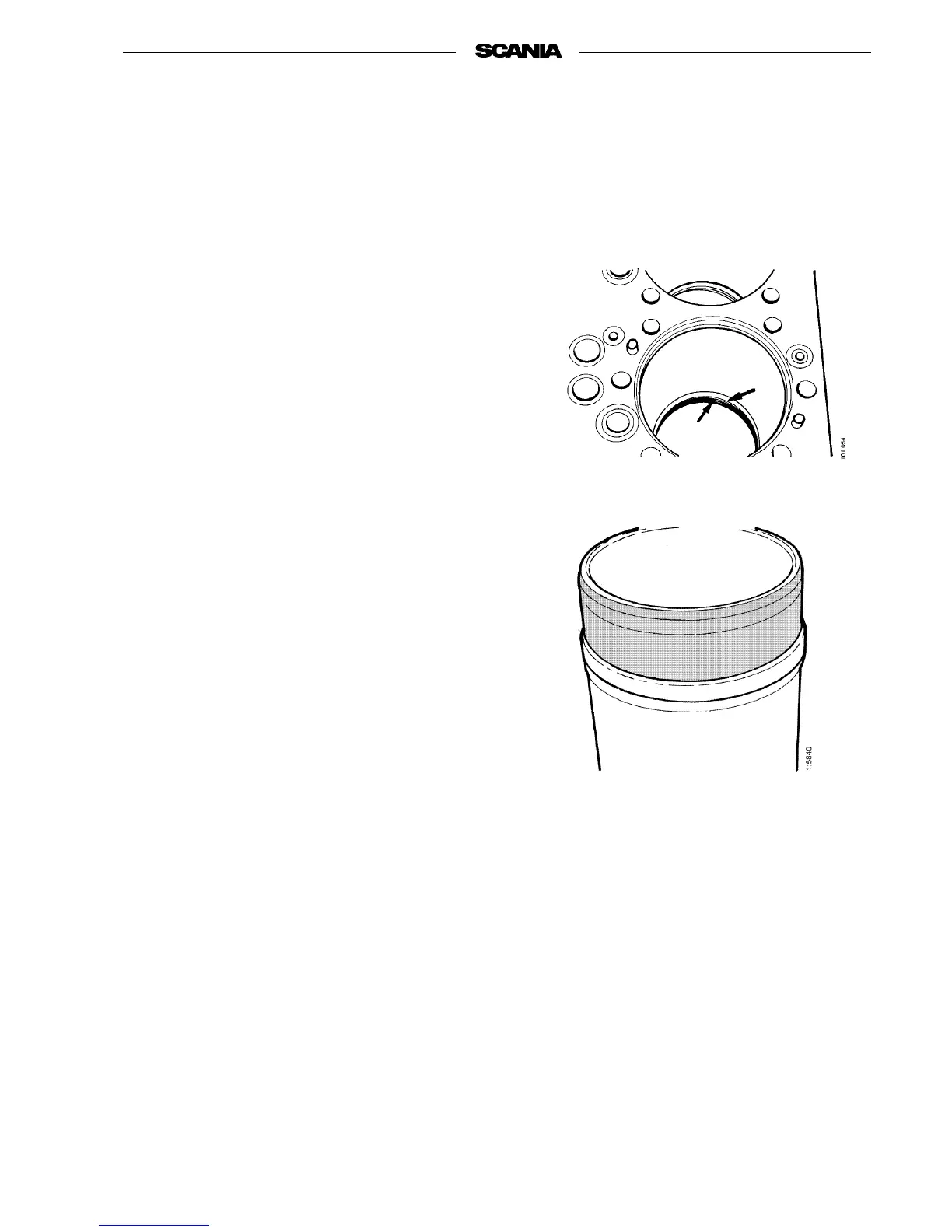

Fitting cylinder liner
1. Check that the inside of the cylinder block is
clean.
2. Carefully check the cylinder liners, both new
and old, for cracks which may have arisen
during transport or as a result of careless han-
dling.
3. Gently tap the liner with a metal object. It
should make a clean metallic ringing sound if
it is intact.
If it sounds cracked it should be changed.
4. Lubricate with glycerine the two seals which
are to be placed in the cylinder block and then
fit them in the cylinder block.
5. Fit the wide seal on the cylinder liner with the
text “out” facing outwards.
Note This seal is not oil resistance and
therefore must not be lubricated.
6. Lubricate the lower guide surface on the cyl-
inder liner with glycerine.
7. Turn the liner with the punched-in cylinder
numbering to the same position it was in
before removal and carefully tap it down
using a rubber mallet. Check that the O-rings
are intact.
8. Check and adjust cylinder liner height as
described in Measuring cylinder liner height
and Adjusting cylinder liner height
Lubricate the lower part of the
cylinder liner before fitting it in
place.
