34
©
Scania CV AB 1997 01:01-02
Program 96

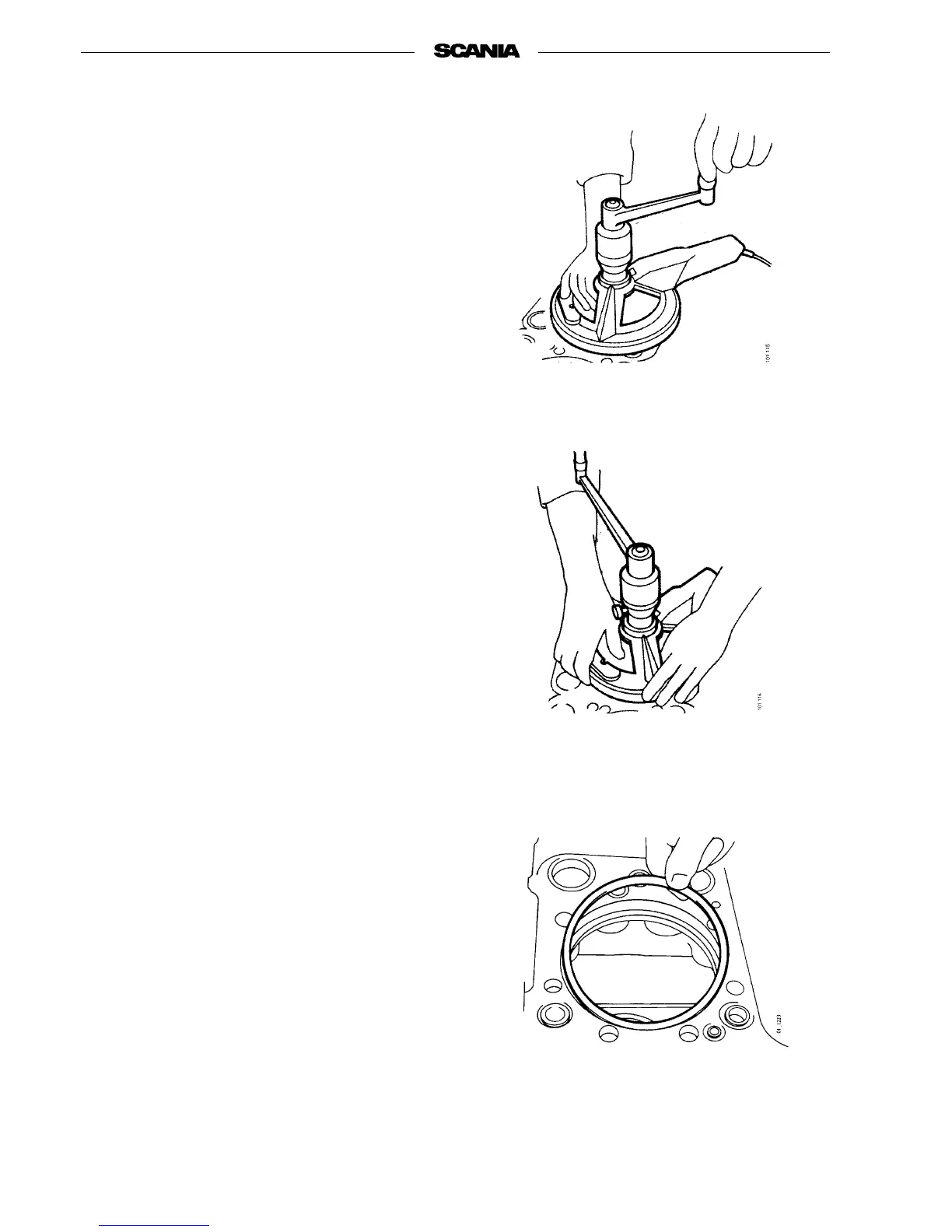

8. Crank clockwise with an even movement,
holding the horizontal feed screw with your
other hand at the same time. The bit is then
fed horizontally 0.13 mm per revolution.
9. Crank more carefully as the bit approaches
the outer edge of the cylinder liner and allow
the horizontal feed ring to slide round in your
fingers.
10. Release the ring fully as soon as the bit has
reached the outer edge so that feed ceases.
Do not move the vertical feed screw during
the machining process.
11. Move the bit back to the centre so that neither
bit nor engine block is damaged when the
tool is placed over the next liner seat.
Lift away the tool and place it over the next
liner seat.
12. Measure the thickness of the shim with the
tool’s micrometer.
13. Fit shim and cylinder liner.
14. Press down the cylinder liner with tension
lugs and check cylinder liner height as per
instructions.
