Scania CV AB 1997 01:01-02
Program 96

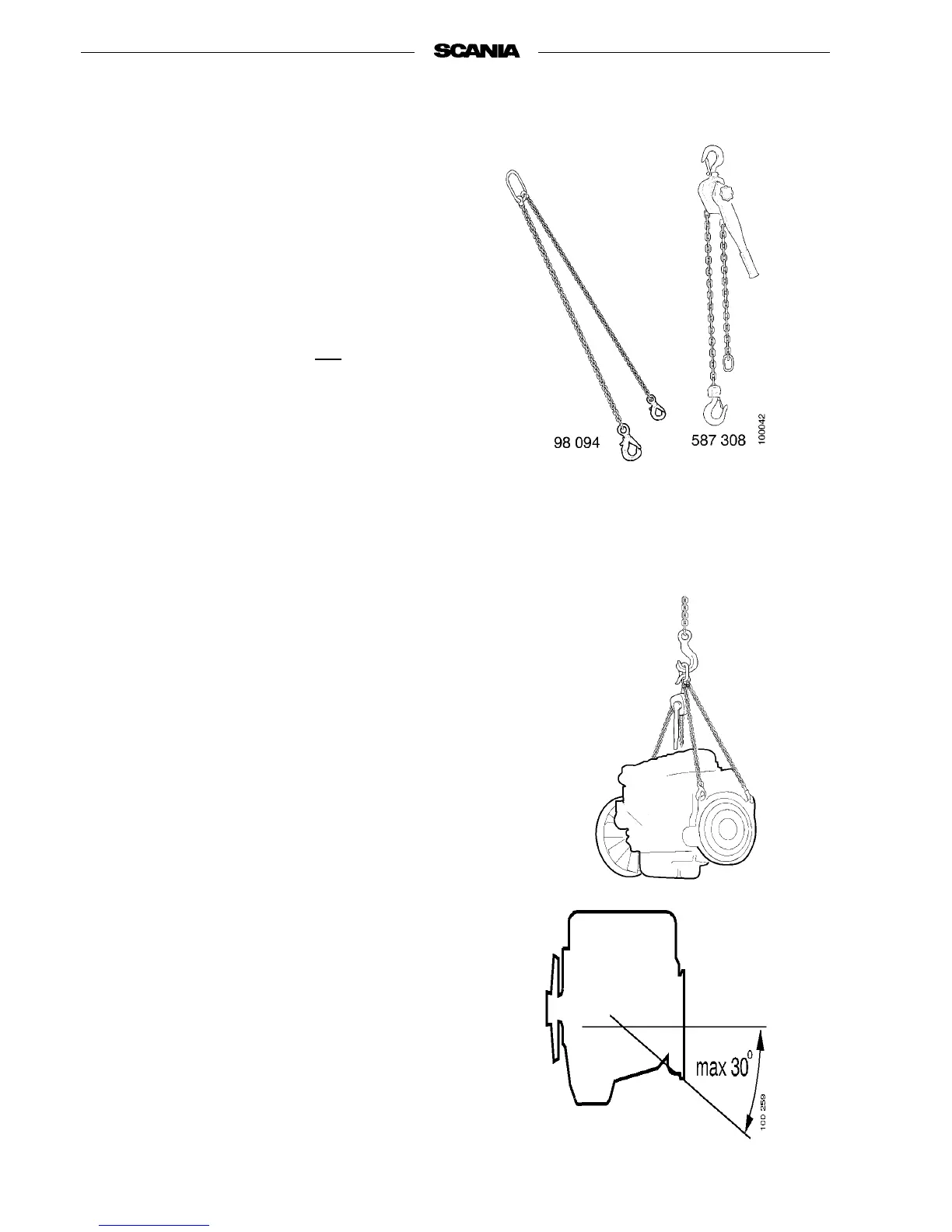

Lifting the engine
Special tools
Note The engine lifting eyes are sized for
lifting the engine only, not the engine
together with connected equipment
(alternator, gearbox, etc.) or frame.
- Fasten lifting chain 98 094 in the rear lifting
eyes.
- Fasten lever block 587 308 in the front lifting
eyes.
Important The lifting eyes are sized for a maxi-
mum lifting angle of 30°.
98 094 Lifting chain
587 308 Lever block
