01:01-02
©
Scania CV AB 1997 33
Program 96

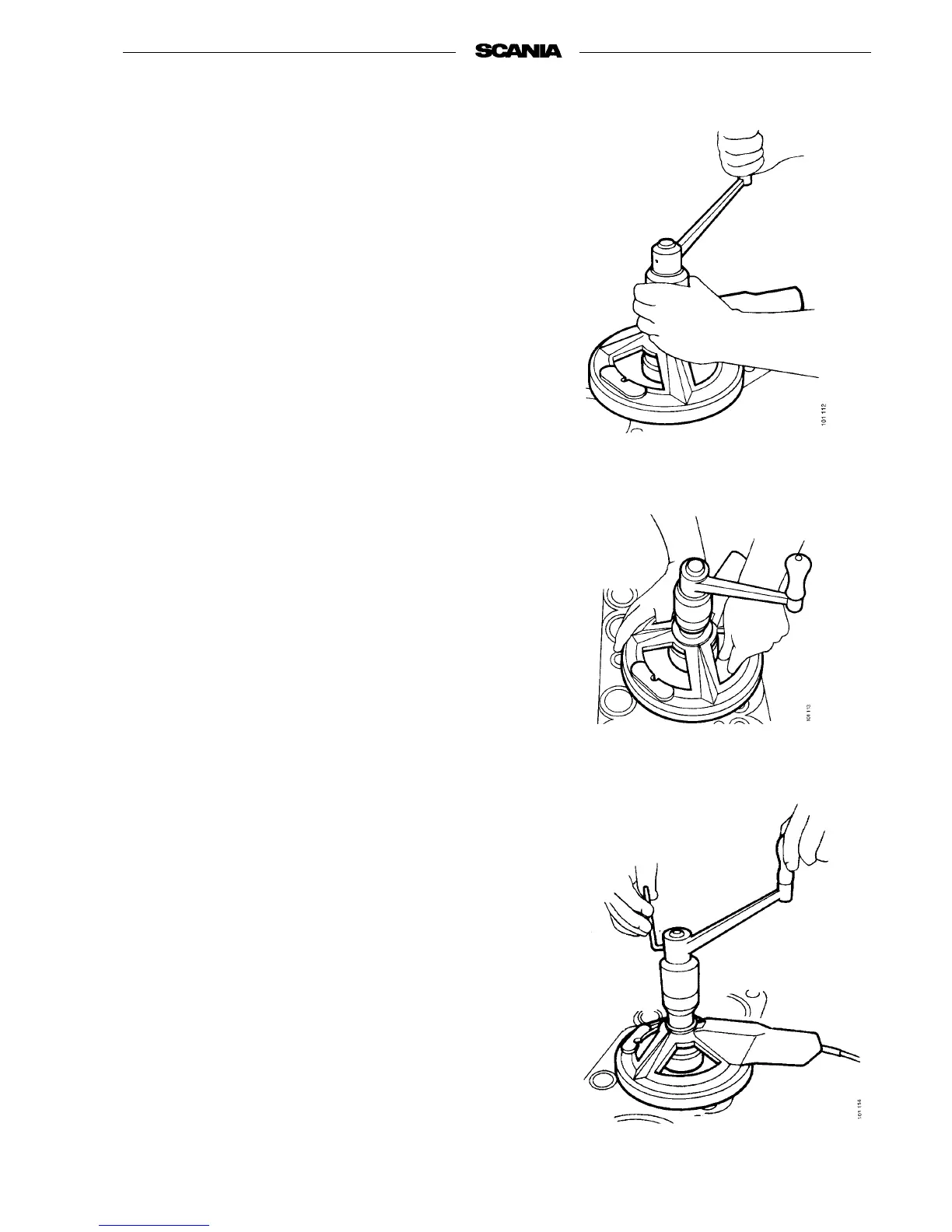

4. Raise the speed feed ring and move the cutter
forward so that the carbide tip is above the
liner seat level without touching the outer
edge.
5. Crank and, at the same time, turn the vertical
feed screw clockwise until the cutter just
comes into contact with the liner seat surface.
6. Lift the speed feed ring and withdraw the bit
until the point is just inside the liner seat sur-
face.
7. Set the vertical feed screw to required depth.
See point 1.
