2003-10:1 © Scania Industrial & Marine Engines 13

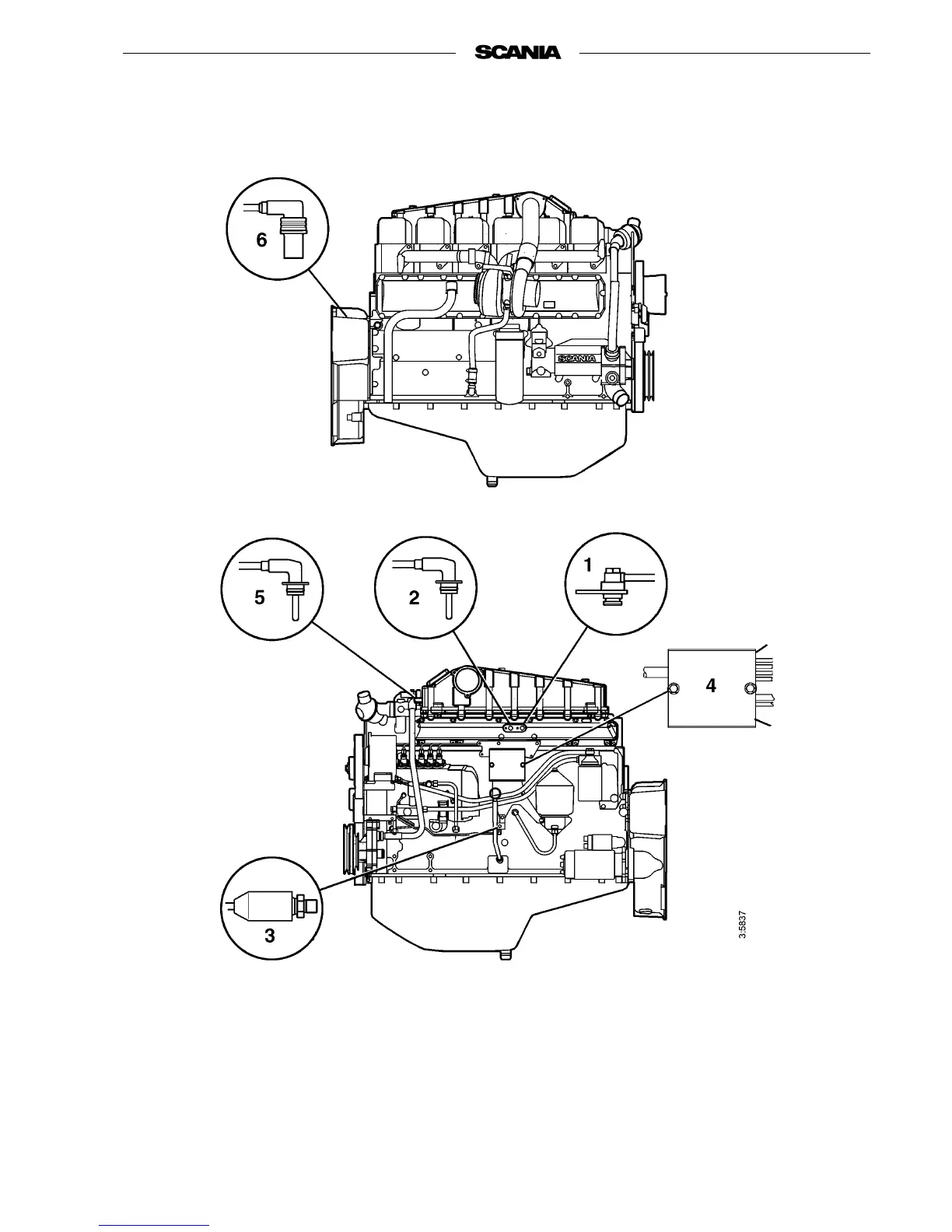

Location of sensors for DEC2 on DI9Location of sensors for DEC2 on DI9
1. Connection of lead to charge air
pressure sensor
2. Charge air temperature sensor
3. Oil pressure monitor
4. Connector panel
5. Coolant temperature sensor
6. Rotation speed sensors
