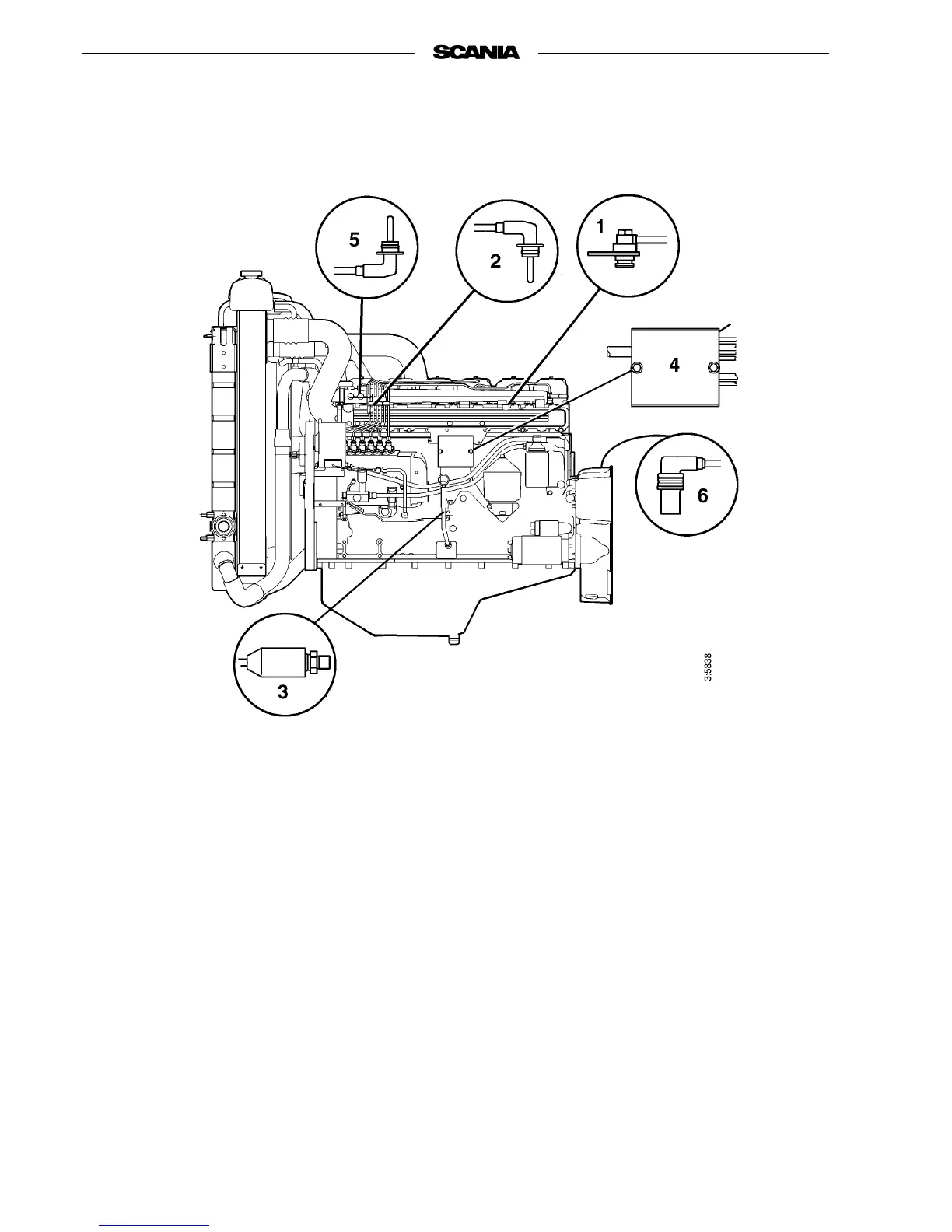

Location of sensors for DEC2 on DC9
1. Connection of lead to charge air
pressure sensor
2. Charge air temperature sensor
3. Oil pressure monitor
4. Connector panel
5. Coolant temperature sensor
6. Rotation speed sensors
