Cooling system
OPM 360 en-GB 52
© Scania CV AB 2017, Sweden

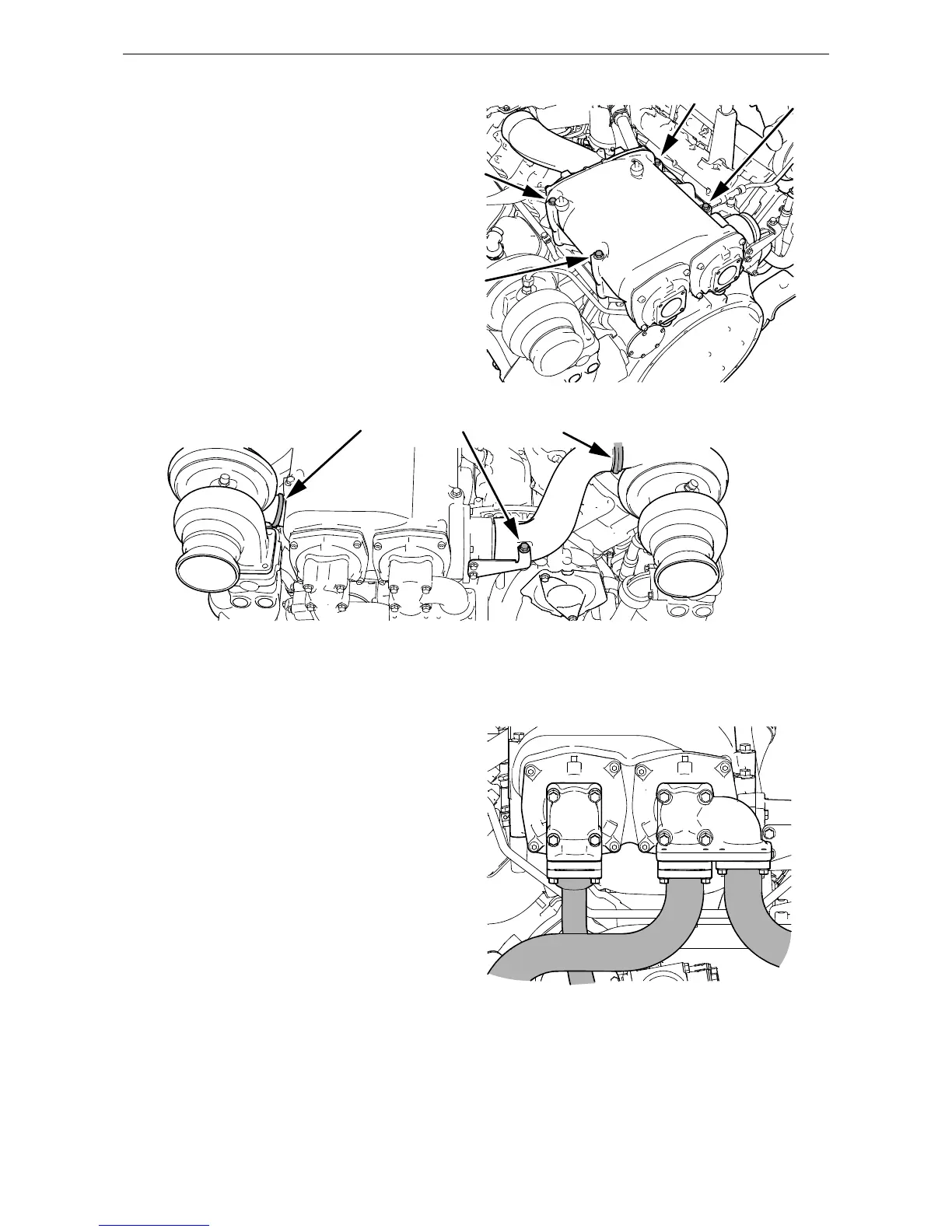

Fitting the charge air cooler
1. Fit the charge air cooler. Tighten the 4
screws to 50 Nm (37 lb-ft).
2. Carefully fit the charge air pipe from the left-
hand turbocharger and tighten the V-clamp
to 20 Nm (15 lb-ft).
3. Fit the charge air pipe from the left-hand tur-
bocharger. Fit the V-clamp first and then the
screw on the bracket.
4. Fit the sea water pipe from the sea water
pump, first to the charge air cooler (the inner
pipe) and then from the charge air cooler to
the heat exchanger (the outer pipe).
