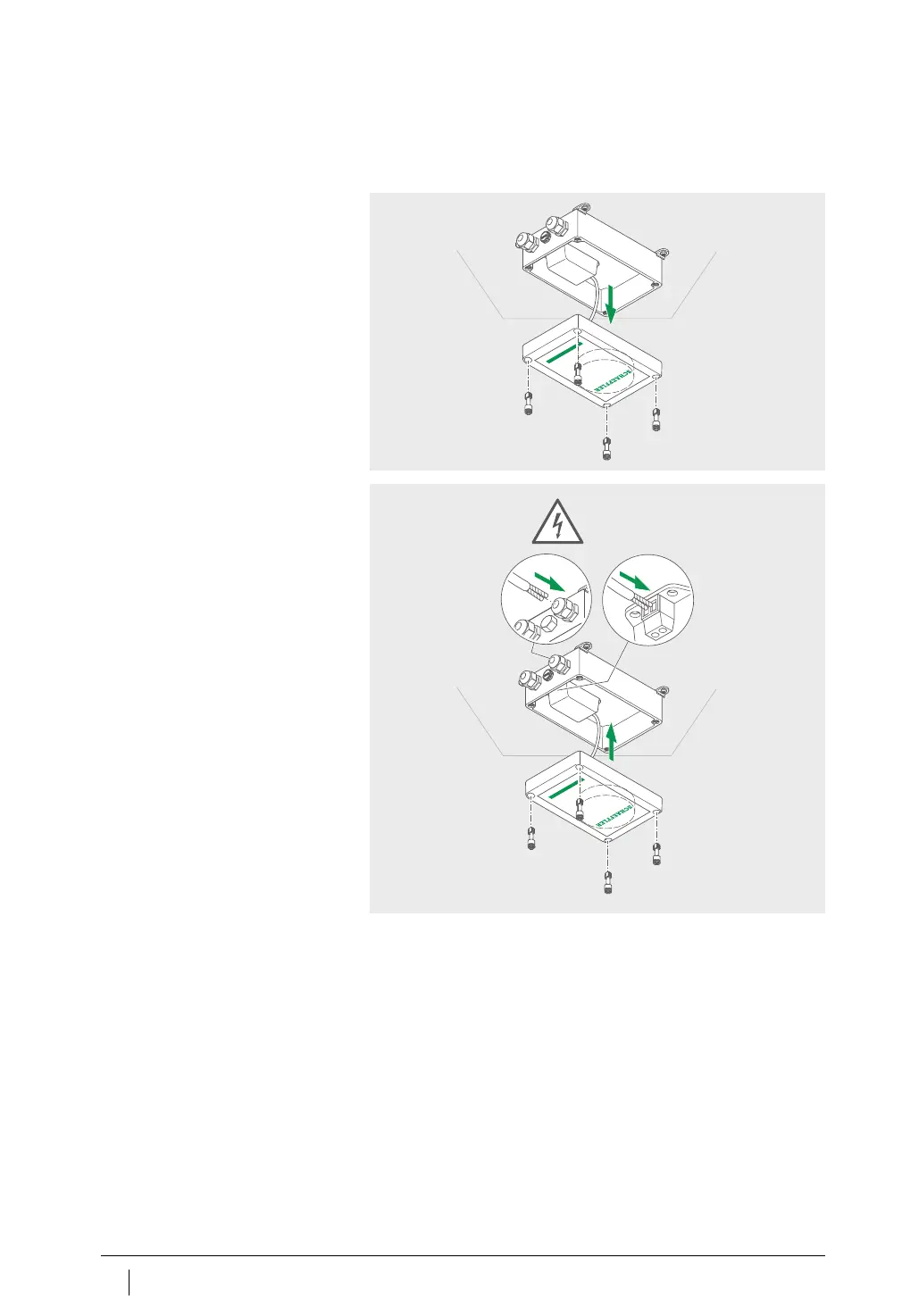

 Proceed as shown, Figure 17 and Figure 18 .
Figure 17
Open cover
OP
TI
M
E
0017069900170699
Figure 18
Complete the electrical
connections to the gateway
3.
O
P
TIME
1. 2.
AC
AC 85 V – 264 V,
47 Hz – 440 Hz
001706A1001706A1
