Schaeffler Technologies
BA 68
35
Mounting a sensor
into a thread
Mounting a sensor into an existing thread on the machine requires
a flat surface and an M6 screw-in thread,
Figure 20
:
Clean the machine surface.
Insert the threaded bolt into an M6 screw-in thread.
Tighten the threaded bolt with a maximum torque of 5 Nm.
There is a risk of damage if the specified tightening torque is not
adhered to. Too low a torque can lead to a weak connection between
sensor and machine, while too high a torque can damage the sensor
and the threaded bolt.
Mounting a sensor
into a thread
Mounting a sensor
using the mounting plate
Further option:
with adapter M6 on M8 (accessory)

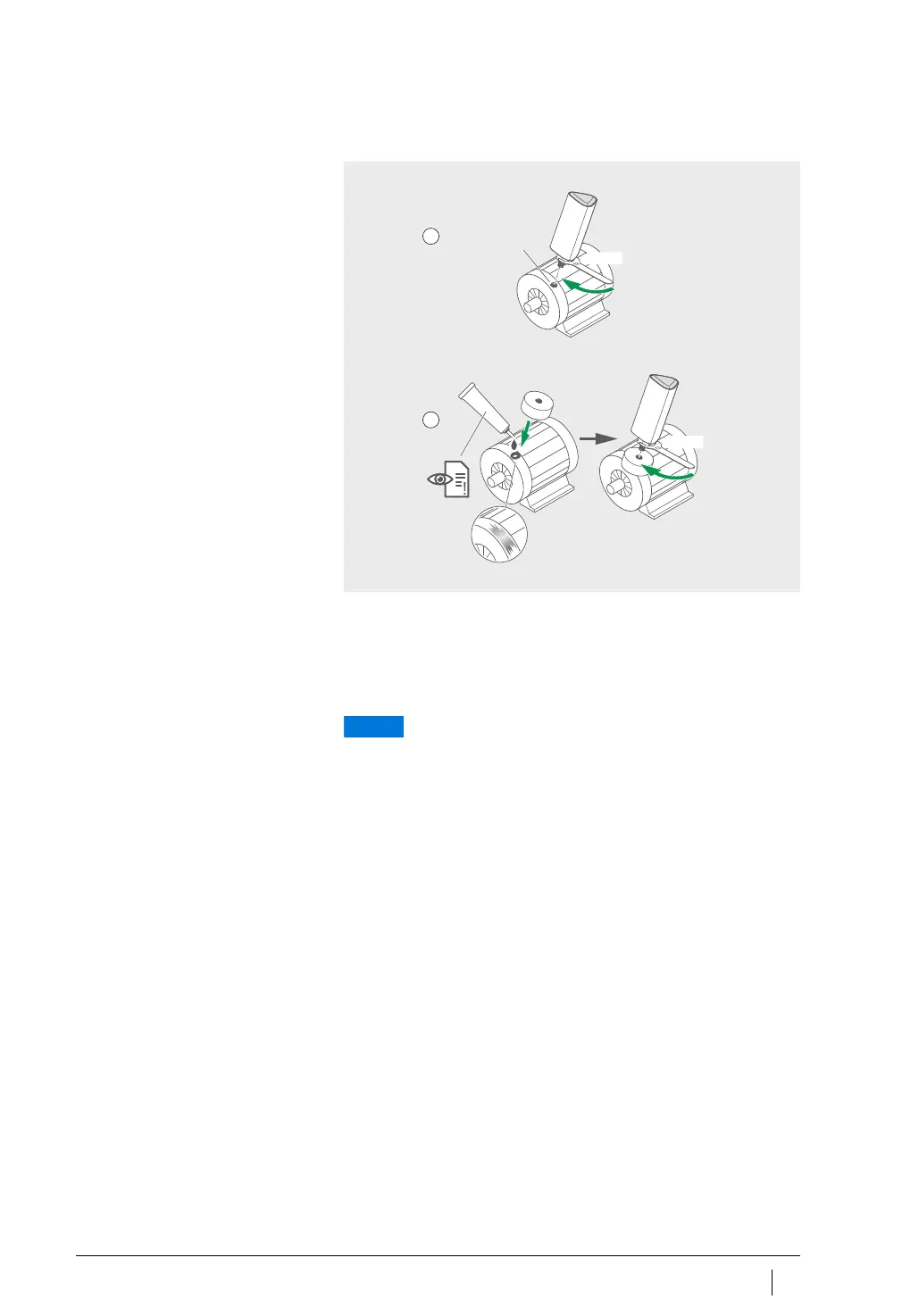

Figure 20
Mounting variants
5 Nm
5 Nm
M6
1
2
