Installation and commissioning www.schaerer.com

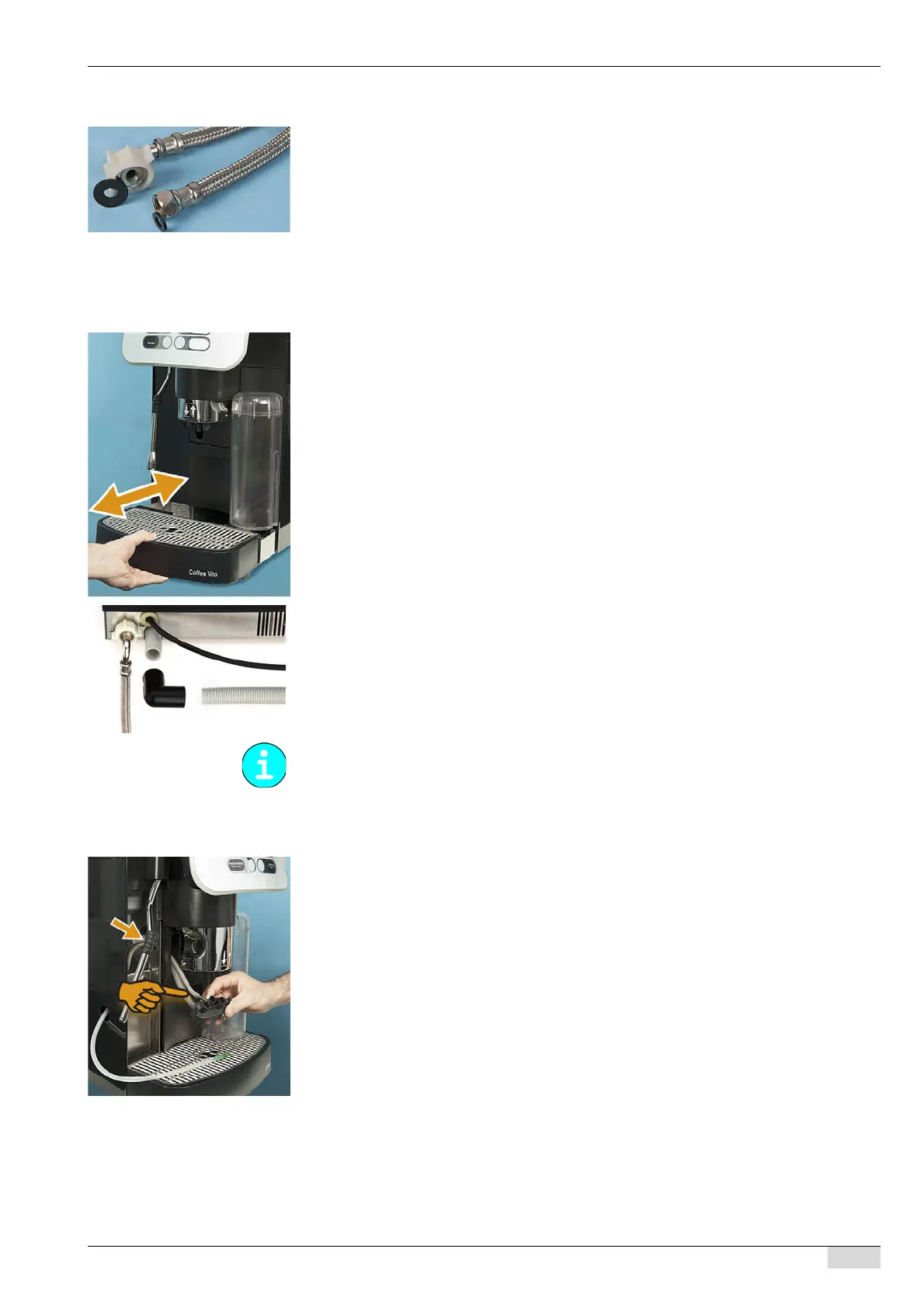

Installing the mains water supply (Option)
► Insert the seals carefully (attached to the hose).
► It is imperative that you check the connections for seal tightness.
► Attach the hose to the connector on the back of the machine and to the on-site angle valve
(3/8").
► Open the main water valve.
Installing a waste water outlet
Option 1: Inserting a drip tray without an opening
► Insert the drip tray.
Option 2: Drip tray with opening
► Insert the drip tray.
► Assemble the waste water connection (see below).
Option 3: Waste water connection
► Connect the waste water hose and elbow to the hose end on the back of the machine.
► Connect the drain hose to the waste water system.
► Make sure that the hose does not sag (shorten it if necessary!).
With the "Aquaflex" option, a selection can be made from the options indicated above.
Connecting the milk system
► Slide the beverage outlet into its highest position.
► Press the release on the rear side of the beverage outlet and pull the foamer head down-
wards.
► Pass the milk hose through the opening (arrow) and fit it onto the foamer head (see figure).
► Reinsert the foamer head upwards into the beverage outlet guide from below until the head
engages.
