6 Installation Instructions
Operating Manual Linear ACTUSAFE CMFS(L)
OM-ENGLISH-Failsafe-Linear-16xx-V2.00-2022.03.03
6.2 Mounting of Linear Failsafe actuator
NOTE: In general stem of actuator is at failsafe position at delivery!
General: Schiebel CM Failsafe actuators move the stem of valve to the failsafe position in case of failsafe event. De-
pending on valve has to be closed or opened by force (sealing force is required in Failsafeposition) or by travel (actuator
shall stop before touching the seat), mounting procedure has to be done different:

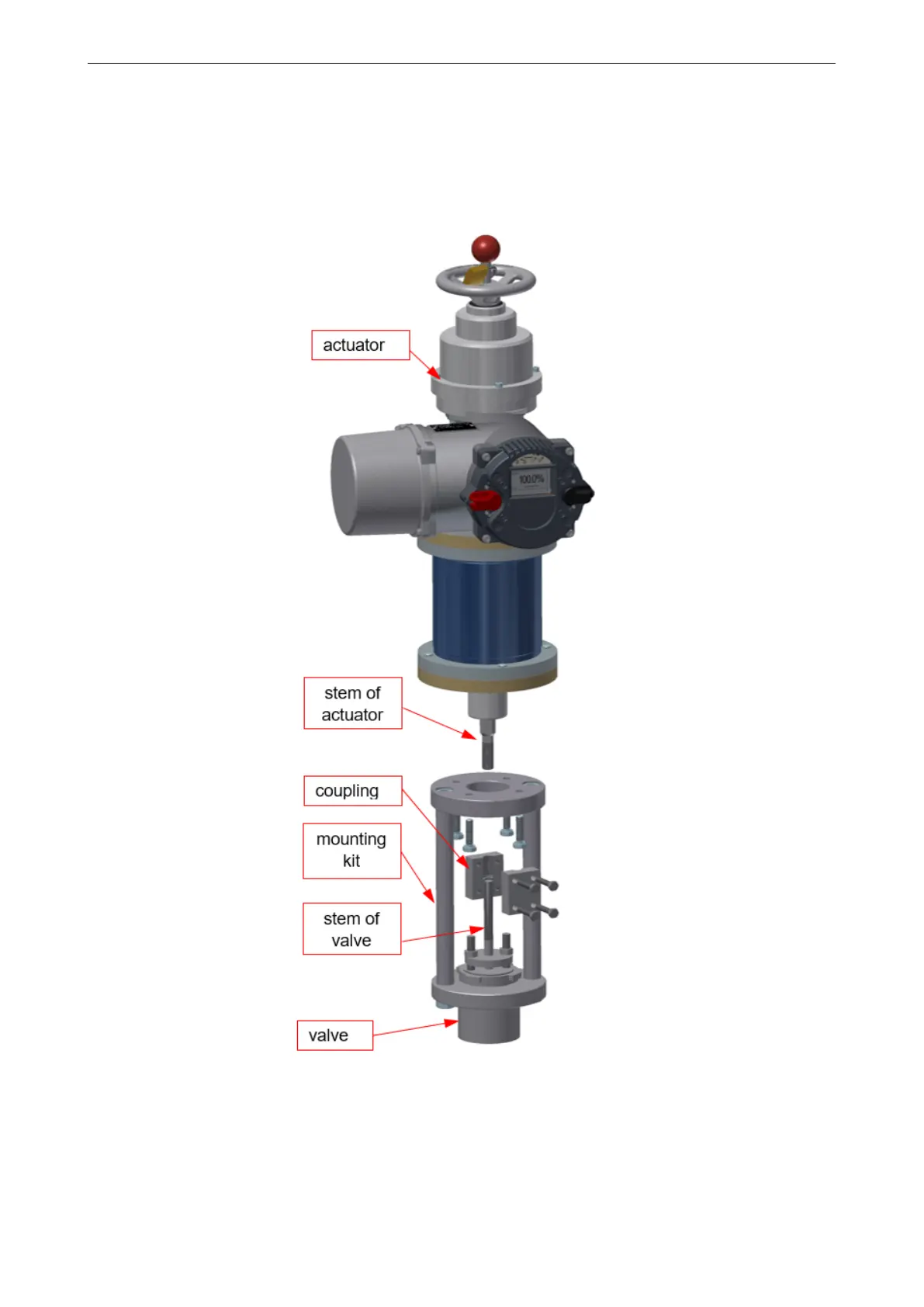

Figure 3: Mounting Linear Failsafe with Linear Adapter
10
