Operating Manual Linear ACTUSAFE CMFS(L)
OM-ENGLISH-Failsafe-Linear-16xx-V2.00-2022.03.03 6 Control Unit
6.2 Display elements
6.2.1 Graphic display
The graphic display used in the controller allows text display in different languages.

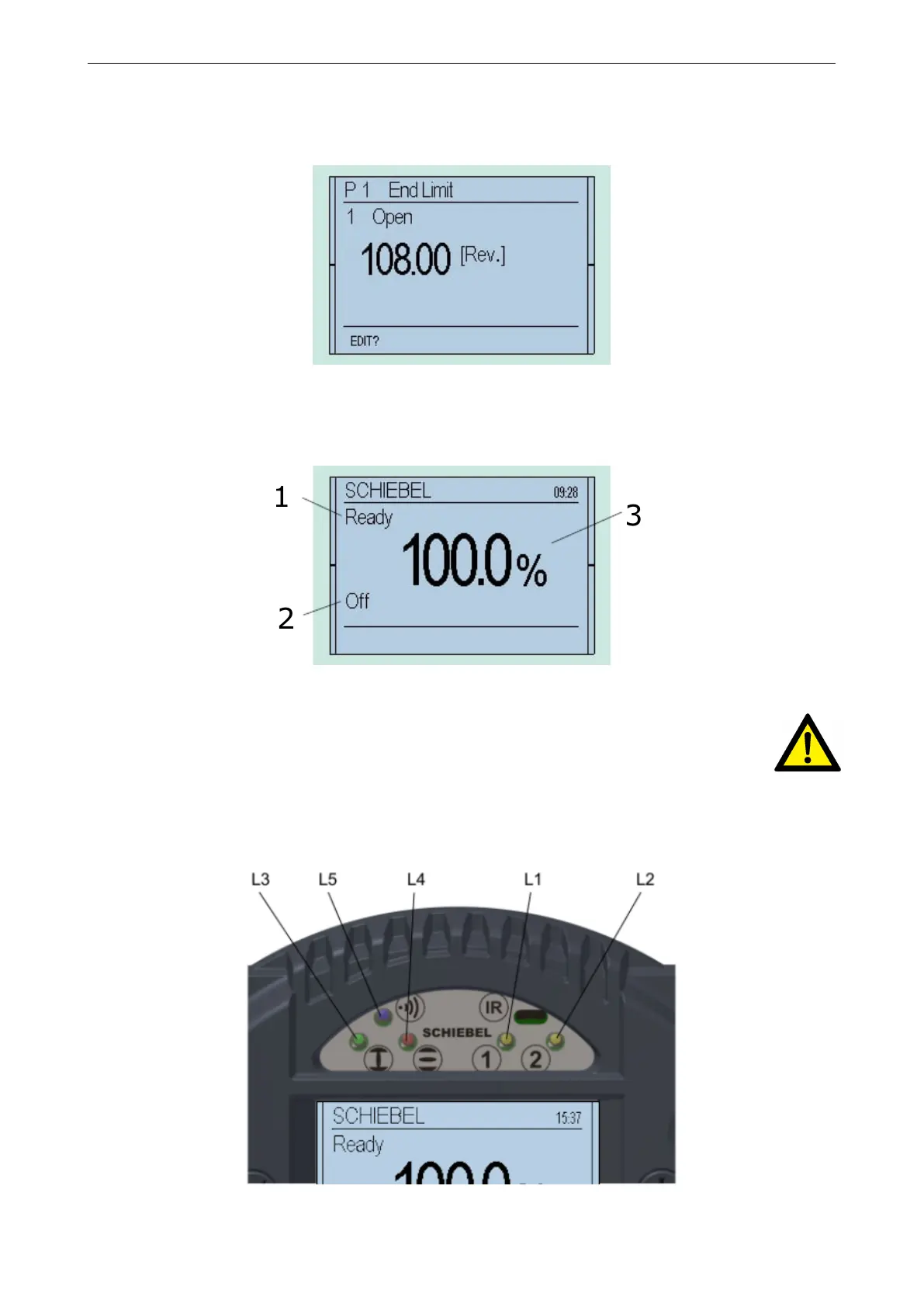

Figure 41
During operation, the displays shows the position of the actuator as a percentage, operation mode and status.
When using the option "identification", a customer-specific label is shown at the bottom of the display (e.g., PPS Number).
1
2
3
Figure 42: 1. . . Status, 2. . . Operation mode, 3. . . Position
CAUTION: The display should not be exposed to direct sunlight over a long peroid - risk of a defect in combi-
nation with very high temperatures.
6.2.2 LED Display
To provide users with better status information, basic status data is displayed using 4-colour LEDs.
As the device powers up, it undertakes a self-test whereby all 4 LEDs briefly lit up simultaneously.
Figure 43
