2 Introduction
Operating Manual Linear ACTUSAFE CMFS(L)
OM-ENGLISH-Failsafe-Linear-16xx-V2.00-2022.03.03
2 Introduction
NOTE: Also consider the Operating manual for ACTUSMART CM.V1.2 starting at page 22!
Linear Actusafe actuators are designed to operate appropriate valves when a fail-safe functionality is required.
Appropriate valves are all kind of valves that require a lineare movement to operate(valves, gate valves, etc.).
In the event of a power failure or if the fail-safe function is triggered deliberately, the linear Actusafe actuator shifts the
valve to the fail-safe position, using the built-in energy storage device to do so.

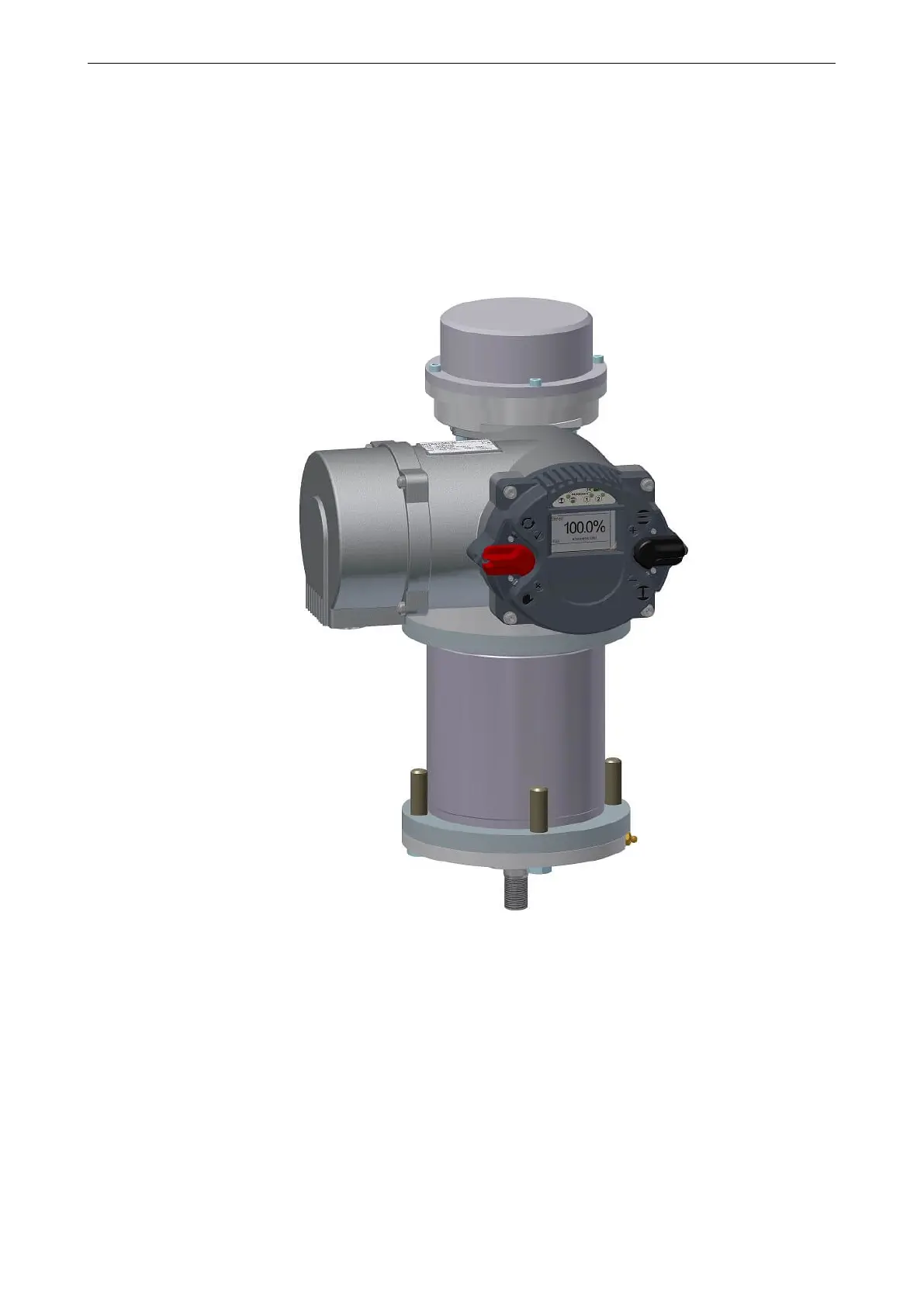

Figure 1: CMFS(L) - Actuator
