7.15 Parameter group: Characteristic curves (optional)
With this option, customers can enable travel-dependent torque, speed and valve characteristic curves.
7.15.1 Torque characteristic
With this characteristic curve, torque limits already set under menu item P2-torque (see section 7.2, page 43) can be
further reduced depending on travel. Characteristics can be configured via the SMARTTOOL software (see Figure 71,
page 61).

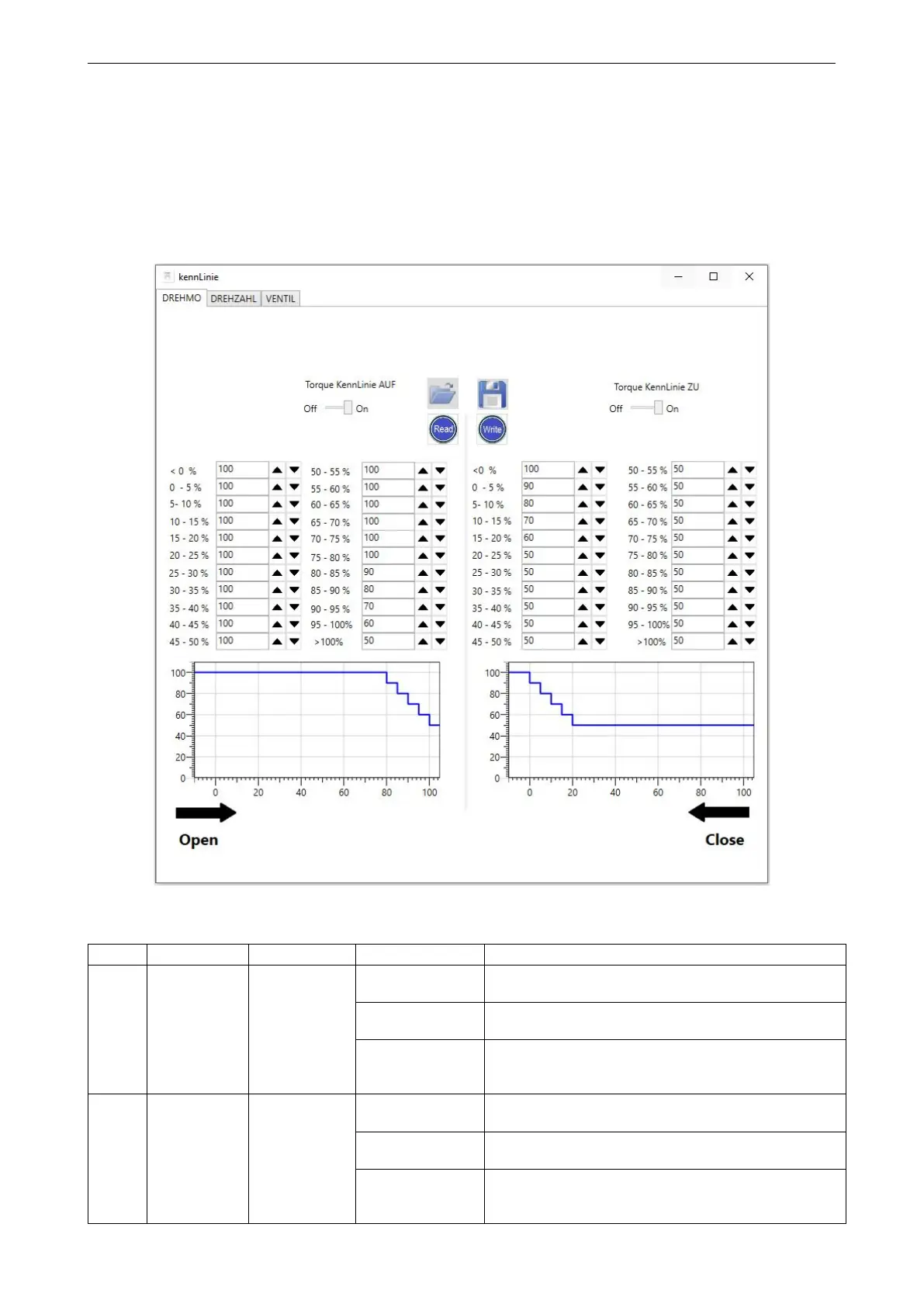

Figure 71: Torque characteristic
Menu item Sub-menu item poss. setting Notes / comments
P17.1 Characteristic Torque Open 0: Off
The torque characteristic curve is disabled for the OPEN
direction.
1: On
The torque characteristic curve is enabled for the OPEN
direction.
2: Local + Remote
only
The torque characteristic curve is enabled for the OPEN
direction only in LOCAL and REMOTE mode (while
disabled in the EMERGENCY mode).
P17.2 Characteristic Torque Closed 0: Off
The torque characteristic curve is disabled for the
CLOSED direction.
1: On
The torque characteristic curve is enabled for the
CLOSED direction.
2: Local + Remote
only
The torque characteristic curve is enabled for the
CLOSED direction only in LOCAL and REMOTE mode
(while disabled in the EMERGENCY mode).
