SCHIEBEL ACTUSAFE CMFS - Status - Analog Values; Status - Absolute Values

8 Status area
Operating Manual Linear ACTUSAFE CMFS(L)
OM-ENGLISH-Failsafe-Linear-16xx-V2.00-2022.03.03
1
2

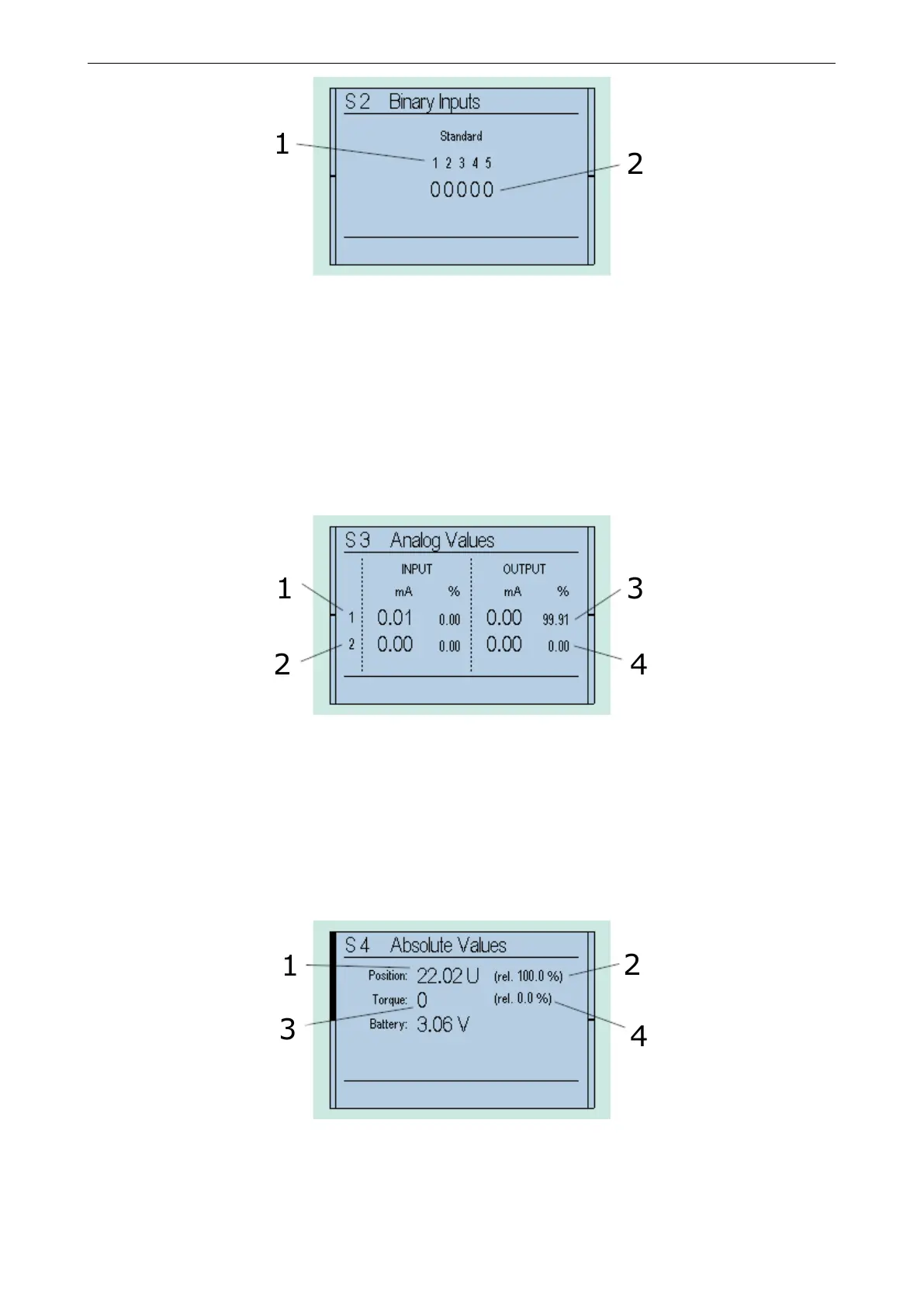

Figure 75: 1. . . Input number, 2. . . Signal (0 = LOW; 1 = HIGH)
8.1.3 Status – analog values
Display of analogue values: Input 1 (In1) is used by the positioner as the setpoint; Input 2 (In2) serves as an external value
for the optional PID controler. In the analogue output (out), only the control signal is shown, regardless of whether the
output current actually flows or not (interruption of the current loop).
1
2
3
4
Figure 76: 1. . . Input 1, 2. . . Input 2, 3. . . Output, 4. . . All values in mA
8.1.4 Status – absolute values
This status displays the absolut position of the actuator.
1
2
3
4
Figure 77: 1. . . Absolute value of the position unit, 2. . . Relative value of the position unit 3 and 4 . . . Absolute and elative
value for the torque unit (calibrated in factory)
