24 Characteristic curves
Operating Manual Linear ACTUSAFE CMFS(L)
OM-ENGLISH-Failsafe-Linear-16xx-V2.00-2022.03.03
24 Characteristic curves
24.1 Characteristic curves - CM03

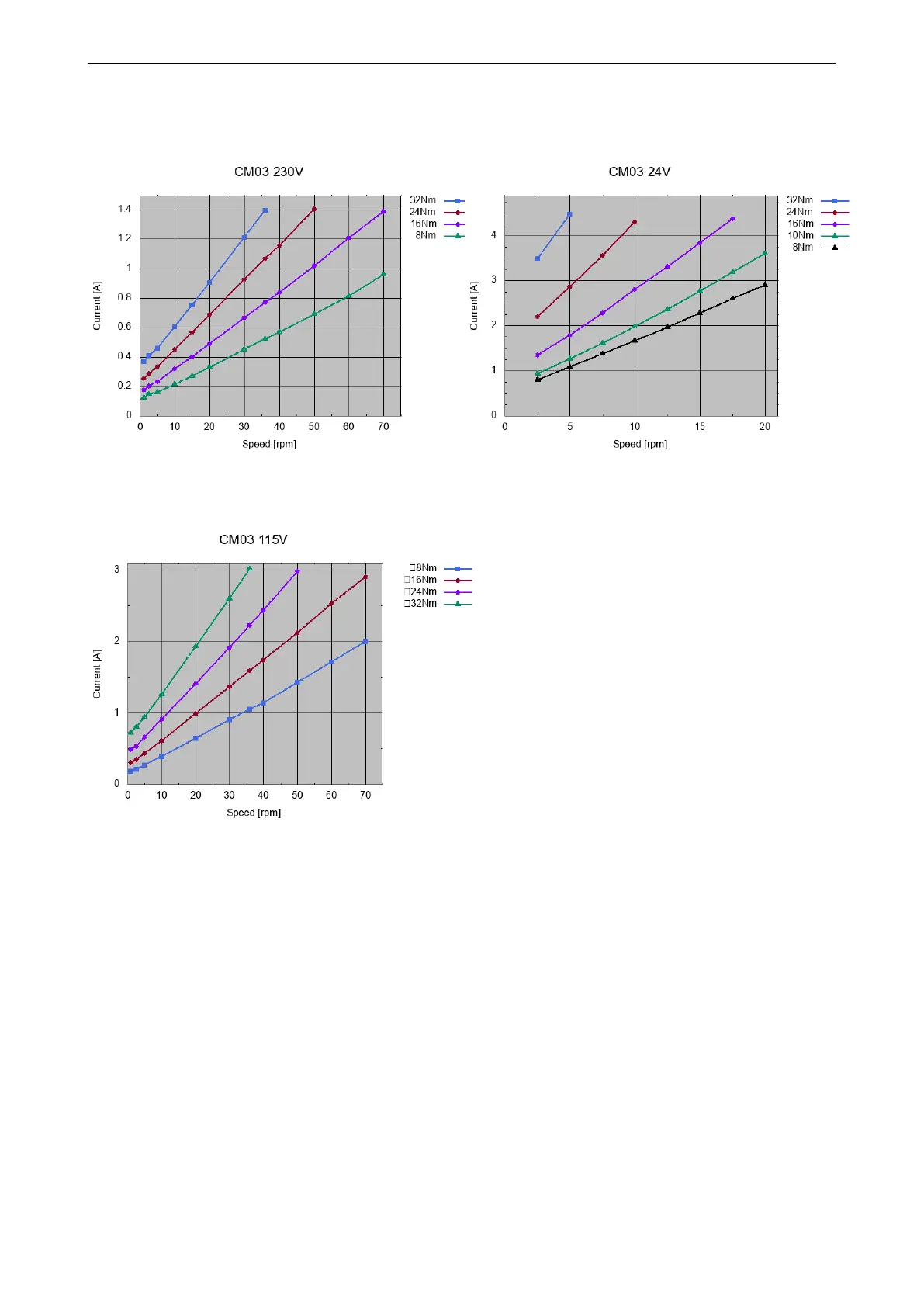

Figure 101: Current draw of the standard version Figure 102: Current draw of the 24 VDC version
Figure 103: Current draw of the standard version
94
