Operating Manual Linear ACTUSAFE CMFS(L)
OM-ENGLISH-Failsafe-Linear-16xx-V2.00-2022.03.03 7 Commissioning

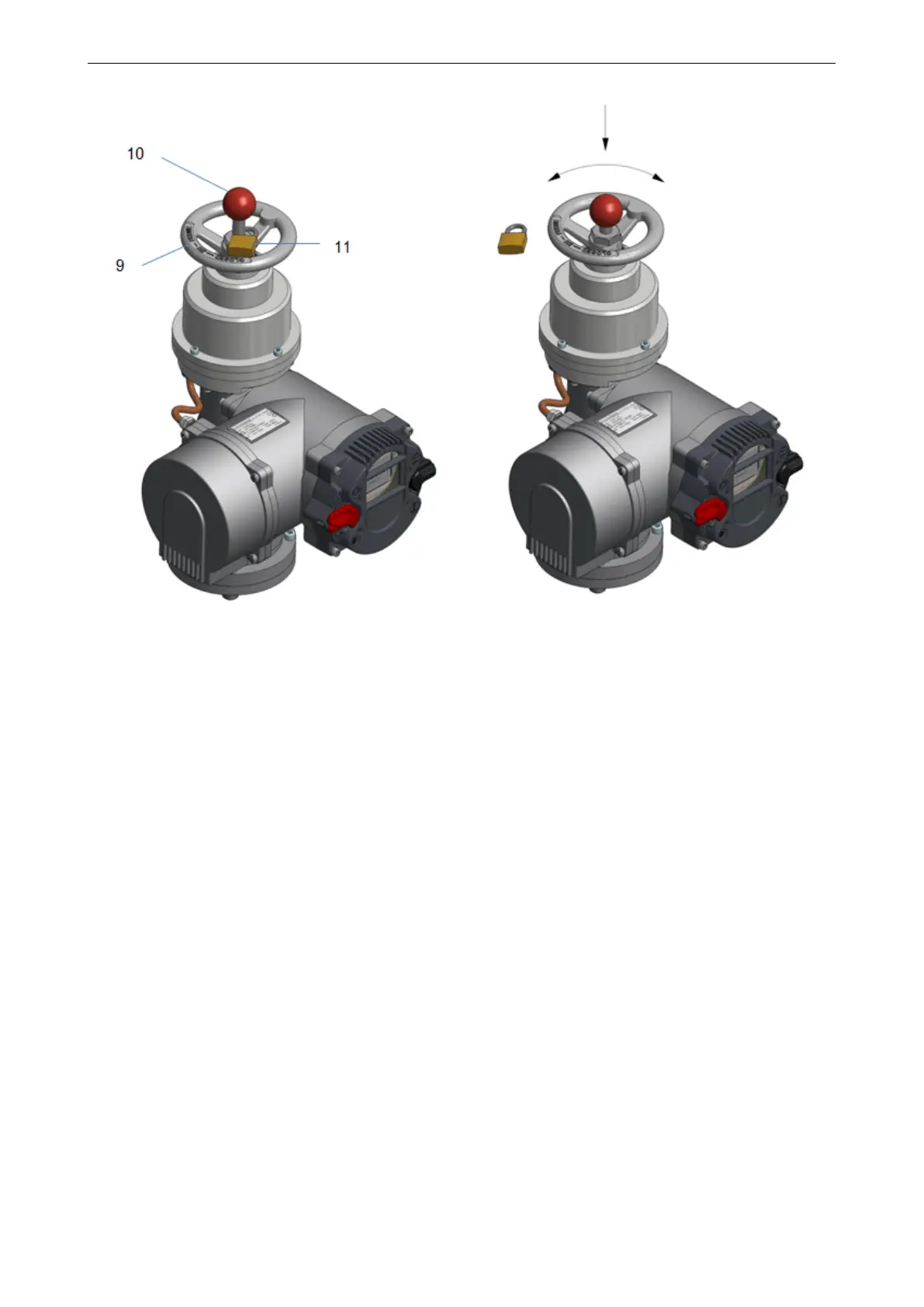

Figure 4: 9. . . Handwheel, 10. . . coupling rod, 11. . . padlock
7.2.1 Activate manual operation
To activate manual mode:
• the padlock has to be removed
• the coupling rod has to be be pushed all the way into the actuator.
For easier clutch engagement move the hand wheel easily back and forth.
Through the engagement the actuator is automatically electrically disabled and the display shows „manual operation“.
7.2.2 Deactivate manual operation
To exit the manual mode and enable the actuator again for the automatic mode must:
• the actuator be driven in the failsafe position by handwheel.
• the coupling rod be pulled up to the stop of the actuator.
• the coupling rod again secured with the padlock.
13
