Operating Manual Linear ACTUSAFE CMFS(L)
OM-ENGLISH-Failsafe-Linear-16xx-V2.00-2022.03.03 5 Commisioning

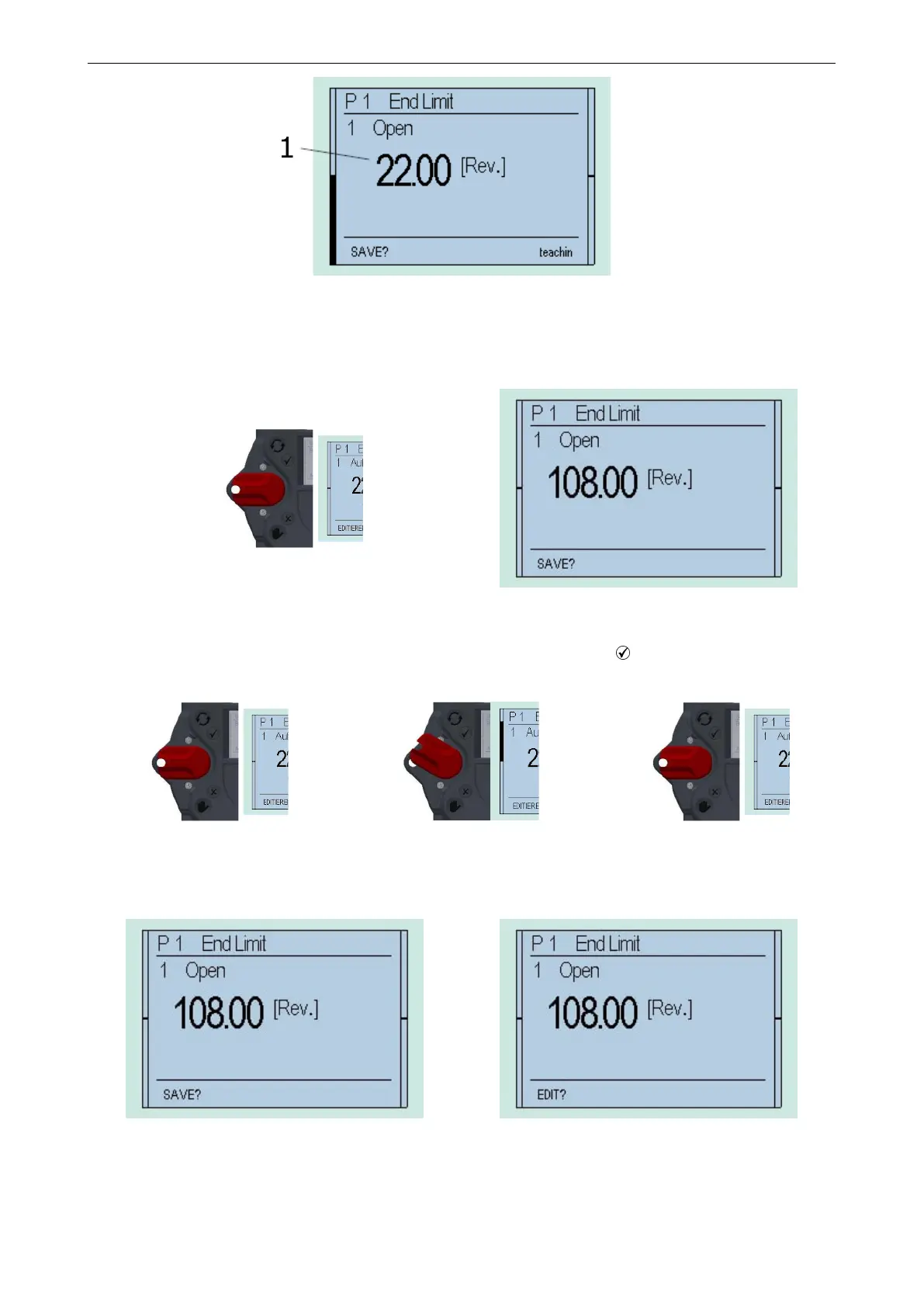

Figure 32: 1. . . Absolute value
When the desired end position OPEN of the valve is reached, move the selector switch back to the middle position. Thus,
the line "TEACHIN" disappears.
Figure 33
Figure 34
In order to confirm the end position (save), slightly flip up the selector switch towards and let it snap back to its neutral
position.
Figure 35
⇒
Figure 36
⇒
Figure 37
This changes the bottom line of the display for "SAVE?" to "EDIT?" and the end position is stored.
Figure 38 Figure 39
5.5.2 End limit CLOSE
Use menu item "P 1.2 End limit - End limit CLOSE" as for End limit OPEN
