SCHIEBEL ACTUSAFE CMFS - Page 84

20 Technical data
Operating Manual Linear ACTUSAFE CMFS(L)
OM-ENGLISH-Failsafe-Linear-16xx-V2.00-2022.03.03

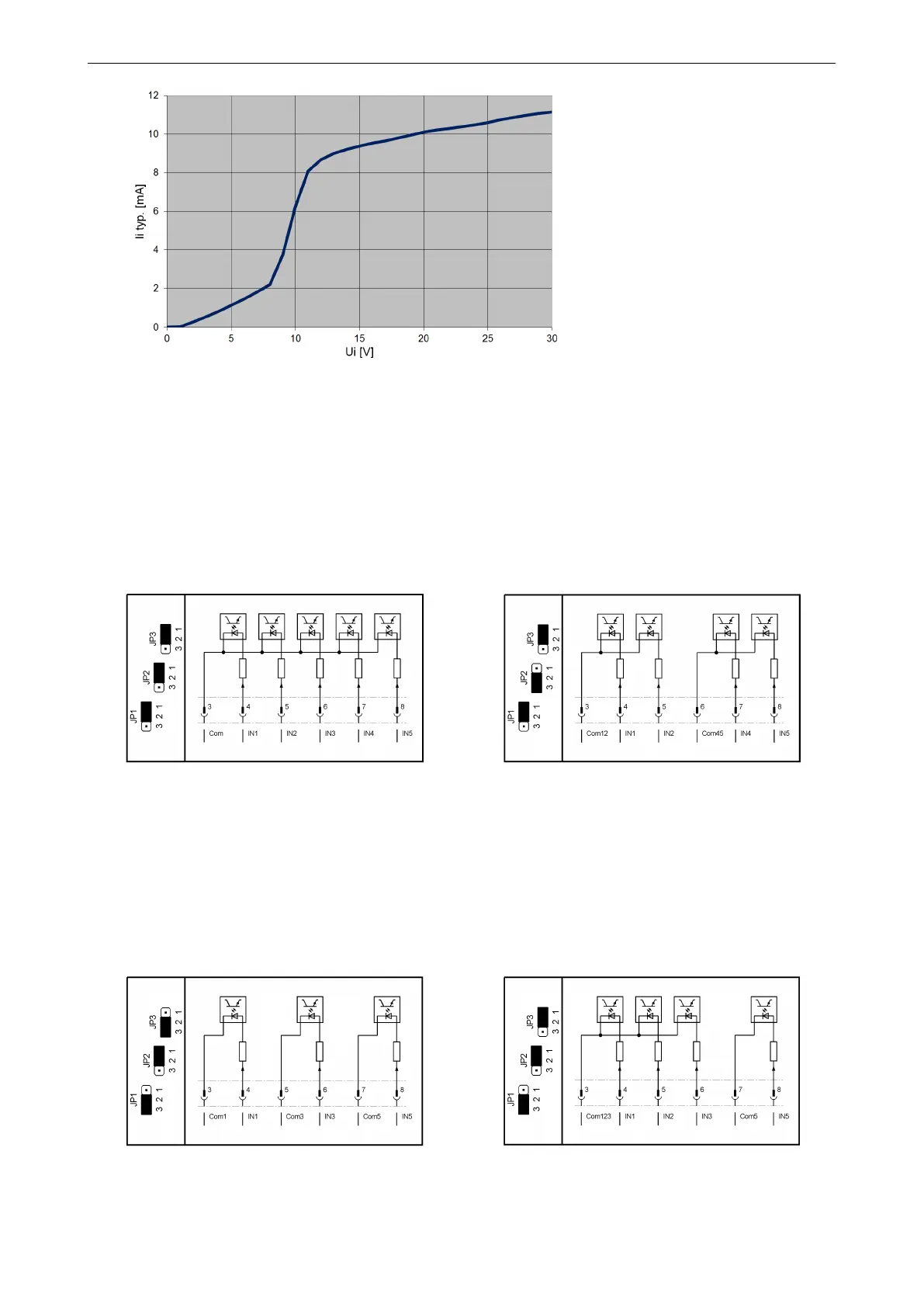

Figure 87: Binary inputs, input characteristic
Ui . . . Input voltage
Ii . . . Input current
Jumpers JP1 . . . JP3 can be used to interconnect the binary inputs to groups with separate earths:
Figure 88: 5 inputs with same common Figure 89: 2 separated groups of 2 inputs with same
ground
Input IN3 is disabled.
Figure 90: 3 separated inputs
Inputs IN2 and IN4 are disabled.
Figure 91: 3 inputs with same common and 1 separated
input.
Input IN4 is disabled.
84
