Overview
The Schlage AD-400 is an open architecture Wireless Access Point Module (WAPM)
designed to interface with third-party panels through a PIM400.
The Schlage AD-402 is a certied Wireless Access Point Module (WAPM).
• The AD-400/AD-402 communicates with the PIM400 via RF (radio frequency).
• The AD-400/AD-402 may be battery powered or connected to external power using
a UL294 or ULCS318/ULCS319 listed power supply. See Batteries on page 12 or
External power supply on page 13 for more information.
• The outside lever is normally locked.
• The inside lever always allows egress.
• The AD-400/AD-402 normally operates in on-line mode. Information contained in
the user credential is passed to an access control panel (ACP), which controls lock
functions. The ACP maintains the audit trail.

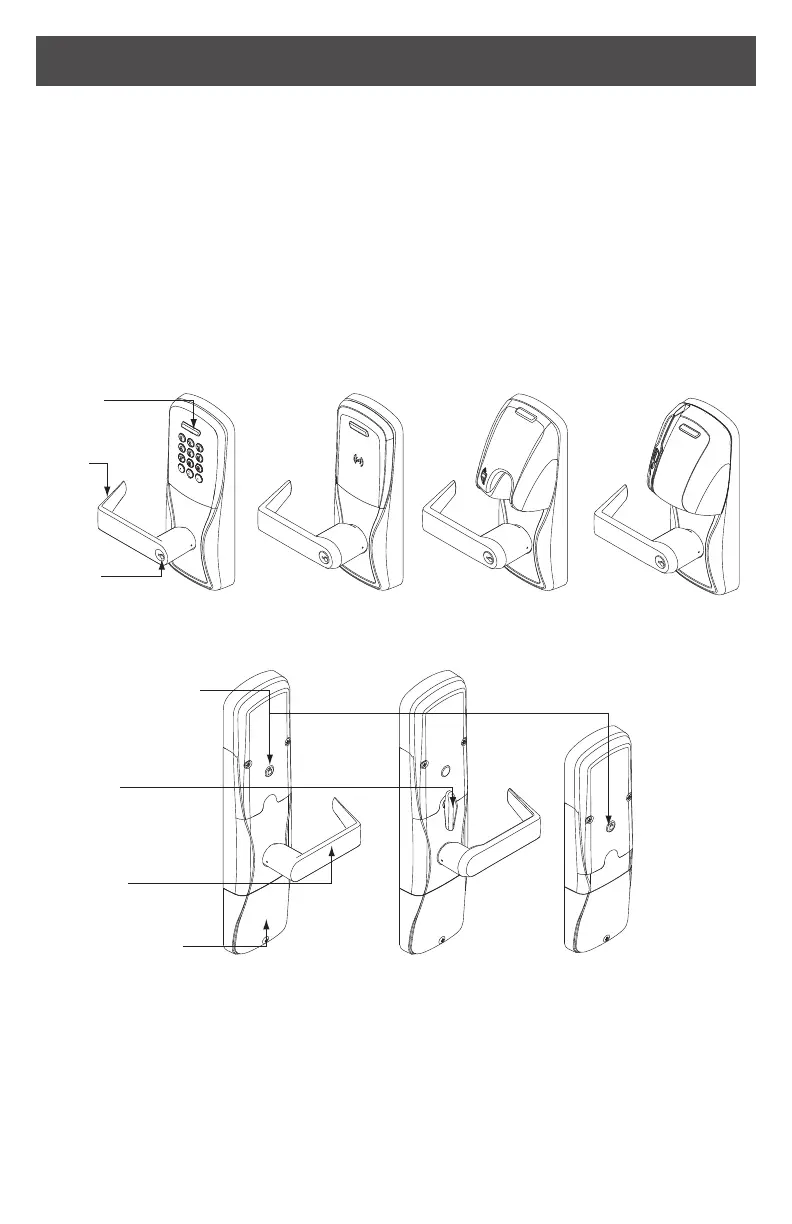

Outside
Schlage
Button
Outside
Lever
Keyway
Inside
Inside Push Button (IPB)
Optional
Thumbturn
Inside Lever
Battery Compartment
Keypad Multi-Tech Reader
AD-400/AD-402-CY
AD-400/AD-402-MS
AD-400/AD-402-MD AD-400/AD-402-993
Mag Card
(Insert) Reader
Mag Card
(Swipe) Reader
Additional AD-400 Reader options: Mag + Keypad, Multi-Tech + Keypad.
Note: Proximity card (PR, PRK) ONLY and Smart card (SM, SMK) ONLY reader have been discontinued and
replaced by the Multi-Tech (MT, MTK) readers that provide all the same funcionality as the original Proximity and
Smart card readers in a single credential reader.
The AD-402 reader is a FIPS-201-2 certied Multi-Tech + Keypad (FM2) reader.
