3 Assembly and startup
SCHMIDT
®
PressControl 3000 – V1.3
13

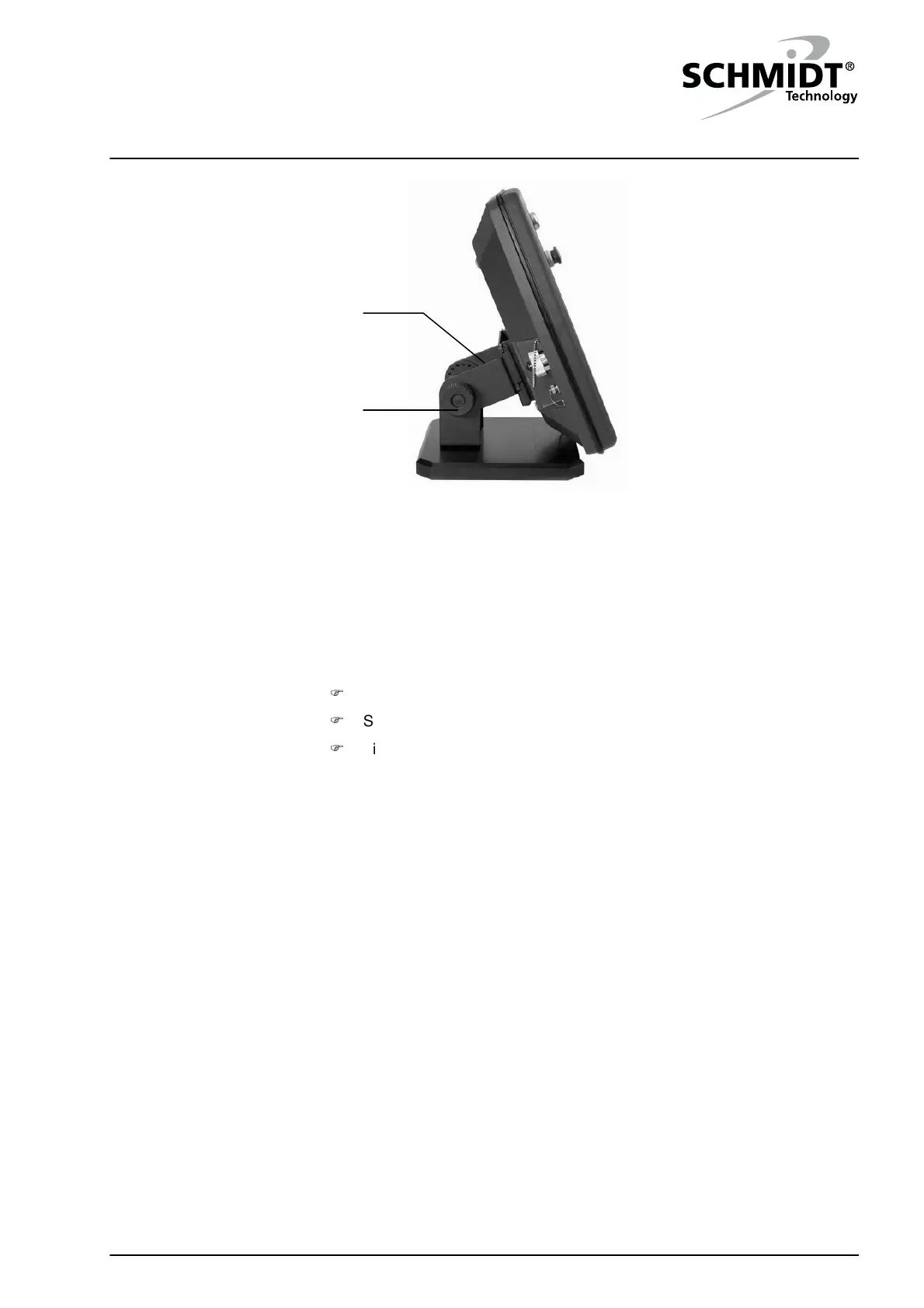

Figure 3-2: Control unit holder
1 Fastening screw (hidden in the figure)
2 Screw for inclination adjustment (on both sides)
The holder adapter in the control unit must not be removed.
The holder allows the control unit to be swivelled by 70°.
Loosen the screw connections for the inclination adjustment (2).
Set the desired control unit inclination.
Tighten the screw connections for the inclination adjustment (2) again.
1
2
Setting the inclination
