Schmidt PressControl 3000 User Manual

2 PressControl 3000
SCHMIDT
®
PressControl 3000 – V1.3
9
2 PressControl 3000
2.1 Function
The SCHMIDT
®
Press System with force/stroke monitoring and SCHMIDT
®
PressControl 3000 operates according to the following principle:
The sequence control of the press process is done via a PLC program. The
PLC program carries out the following functions:
• Control of the process data acquisition sequence
• Monitoring of the press process on the basis of the set quality
parameters
• Plain text output on the display.
Additional functions (e.g. feeds, workpiece detection, sorting of OK and Not
OK parts, etc.) are effected via the PLC program.

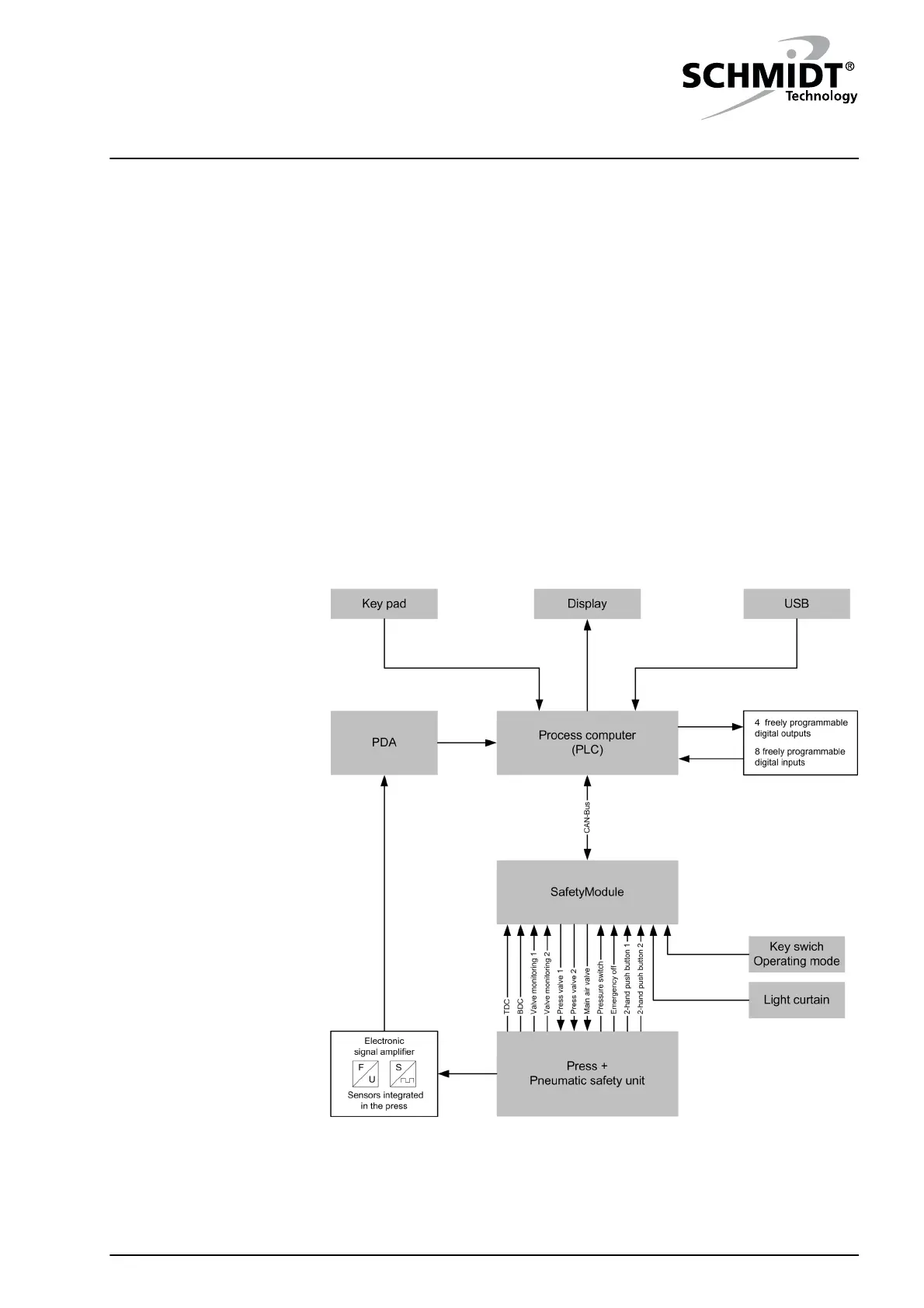

Figure 2-1: Block circuit diagram
Sequence control
