5 Data Input
SCHMIDT
®
PressControl 3000 – V1.3
19

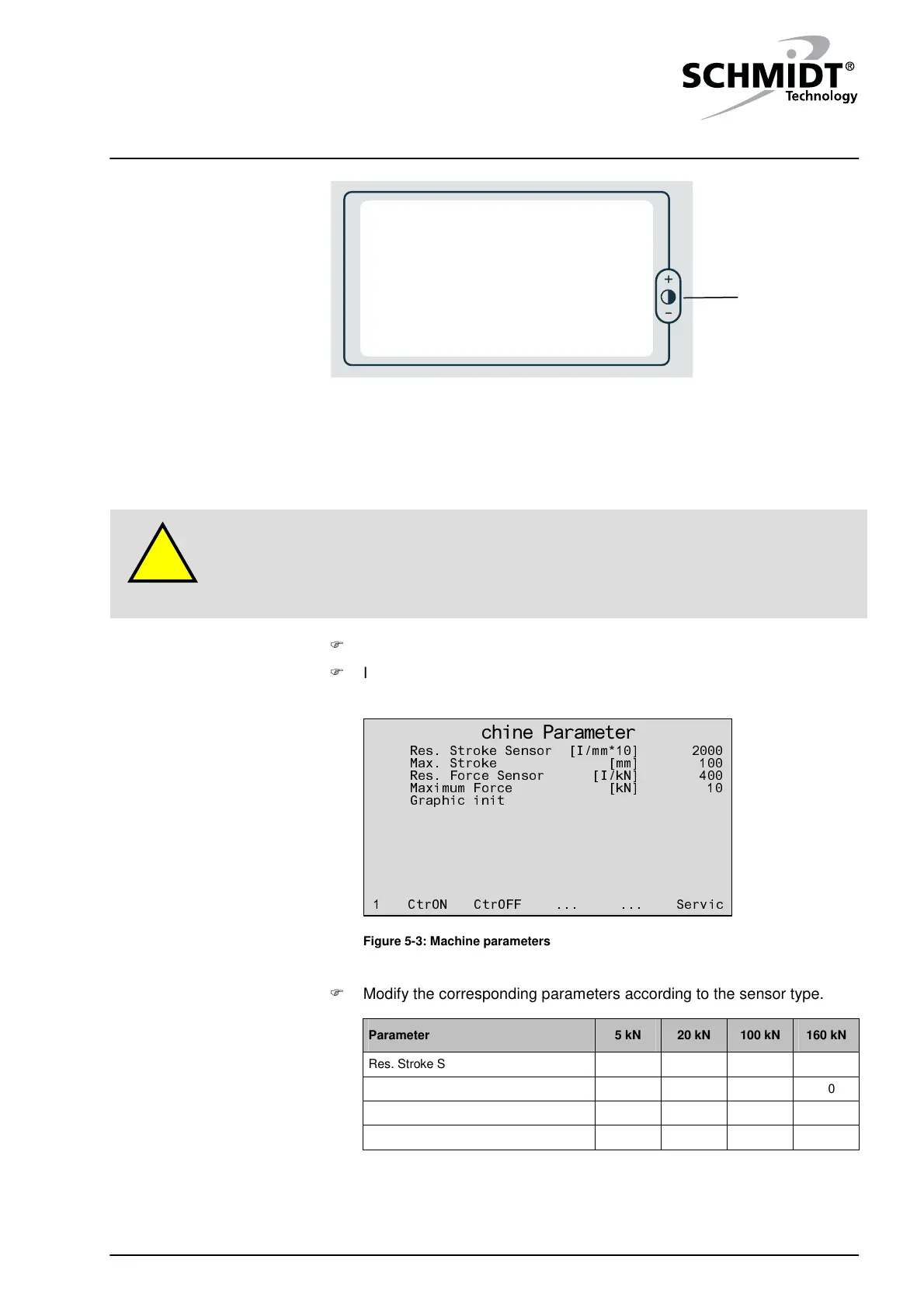

Figure 5-1: "Contrast setting" keys
1 "Contrast setting" keys
Machine parameters
Wrong evaluation of the quality parameters
The sensitivity of the sensors of the connected press is set by the machine
parameters. The set parameters have been tested and should only be
changed by experts.
Select the "System Options" system function key.
In the "System Options" submenu, select the "Machine Parameter"
selection.
1 CtrON CtrOFF ... ... Servic
Graphic init
10Maximum Force [kN]
400Res. Force Sensor [I/kN]
100Max. Stroke [mm]
2000Res. Stroke Sensor [I/mm*10]
Machine Parameter
Figure 5-3: Machine parameters
Modify the corresponding parameters according to the sensor type.
Parameter 5 kN 20 kN 100 kN 160 kN
Res. Stroke Sensor 2000 2000 2000 2000
Max. Stroke 100 100 100 100
Res. Force Sensor 400 100 20 16
Maximum Force 10 20 100 125
Please refer to chapter “5.1 Press data” in the operating manual of the
press to find out which force sensor is integrated in which press.
1
To Next Page
