7 Press processes
SCHMIDT
®
PressControl 3000 – V1.3
28
Enter deflection

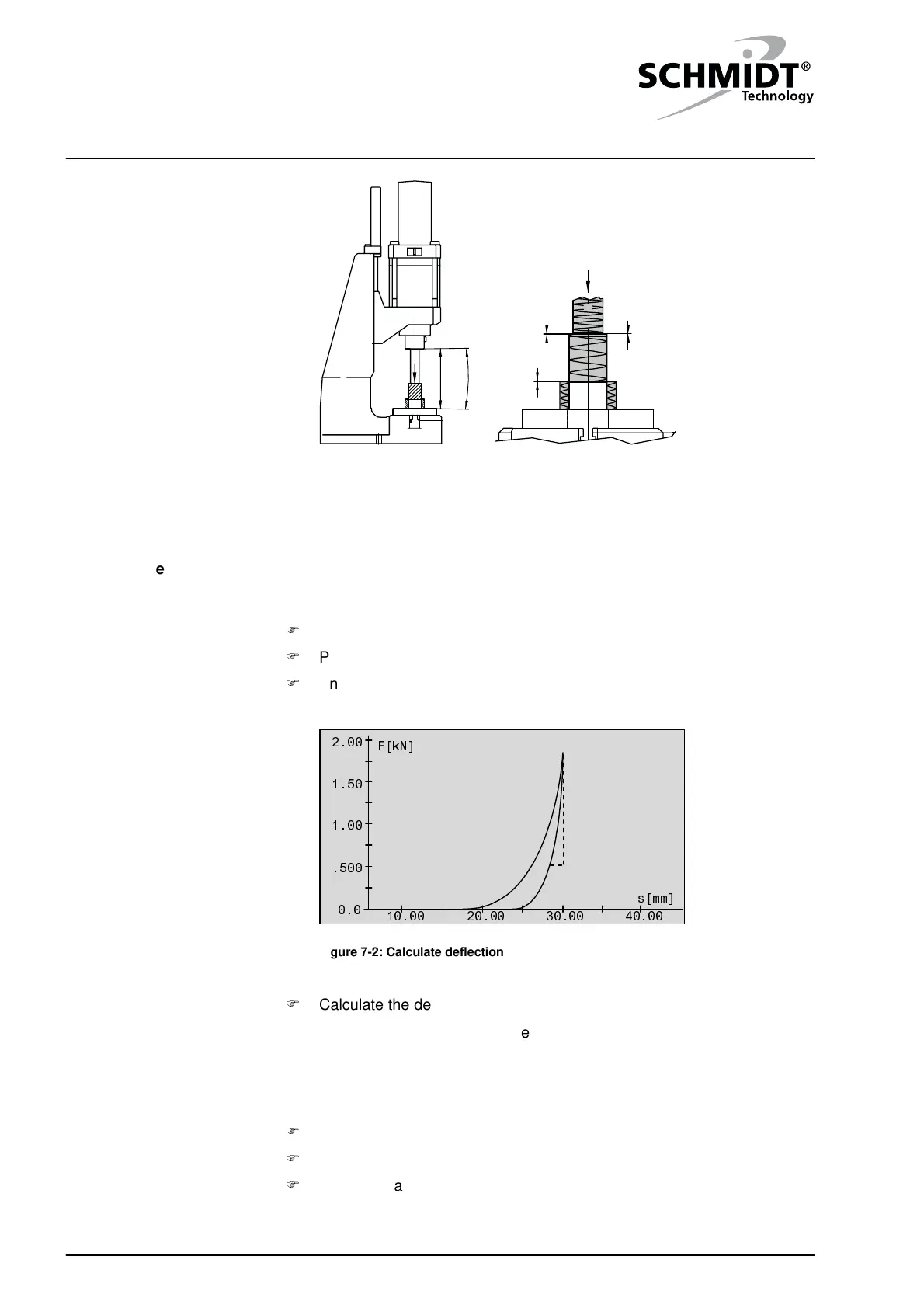

Figure 7-1: Positioning error due to deflection or compression
1 Deflection
2 Compression
After you have completely set up the press system (with tools), you can
calculate the deflection. This can be done based upon a normal press
sequence.
 Select the "Curve Output" system function key.
 Press a workpiece and record the force/stroke curve.
 Enlarge the curve section so that the press start and press end are
visible.
2.00
1.50
1.00
.500
0.0
F[kN]
s[mm]
10.00 20.00 30.00 40.00
Figure 7-2: Calculate deflection
 Calculate the deflection.
Sample calculation: Stroke difference ∆s = 2 mm
Force difference ∆F = 1,7 kN
Deflection ∆s/∆F = 1,176 mm/kN
 Select the "Data Input" system function key.
 Select the "Bend up [mm/kN]" parameter.
 Enter the calculated value
F
F
1
2
2
2
∆F
∆s
Calculate deflection
