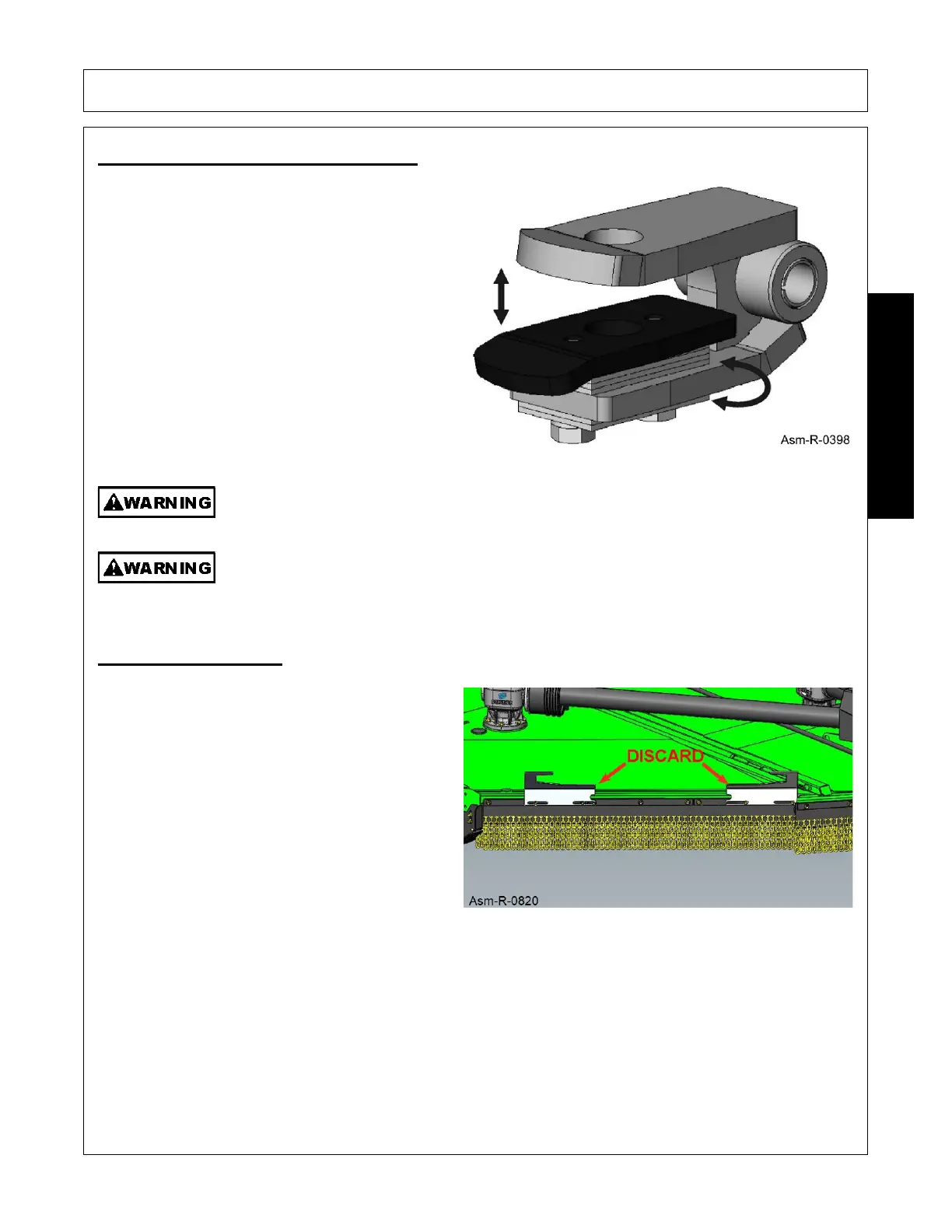

PRECISION CLEVIS - C000-360
Adjust the opening of the precision clevis by
shimming the wear plate with the spacers.
Remove the two 5/8” bolts and lockwashers and
stack the spacers betwee.n the wear plate and the
hitch block until the opening measures less than
1/8” taller than the drawbar. Replace unused
spacers under the hitch block and reinstall the
lockwashers and bolts.
NEVER USE YOUR HANDS TO STEADY THE HITCH BLOCK WHILE THE TRACTOR IS
BEING BACKED INTO THE HITCH.
NEVER STAND BETWEEN THE TRACTOR AND THE ROTARY CUTTER WHILE THE
TRACTOR IS BEING BACKED INTO THE HITCH.
TRACTOR SHAFT
After the wings are lowered to the ground, remove
the tractor shaft from shipping brackets on the
wing. Attach the tractor shaft to the divider
gearbox. See Driveline Attachment in the
Operation Section.
After the wings are lowered to the ground, remove
the tractor shaft from shipping brackets on the
wing. Attach the tractor shaft to the divider
gearbox. See Driveline Attachment in the
Operation Section.
