ASSEMBLY
XH1500/XH1000 06-24 Assembly Section 3-8
ASSEMBLY
© 2024 Alamo Group Inc.

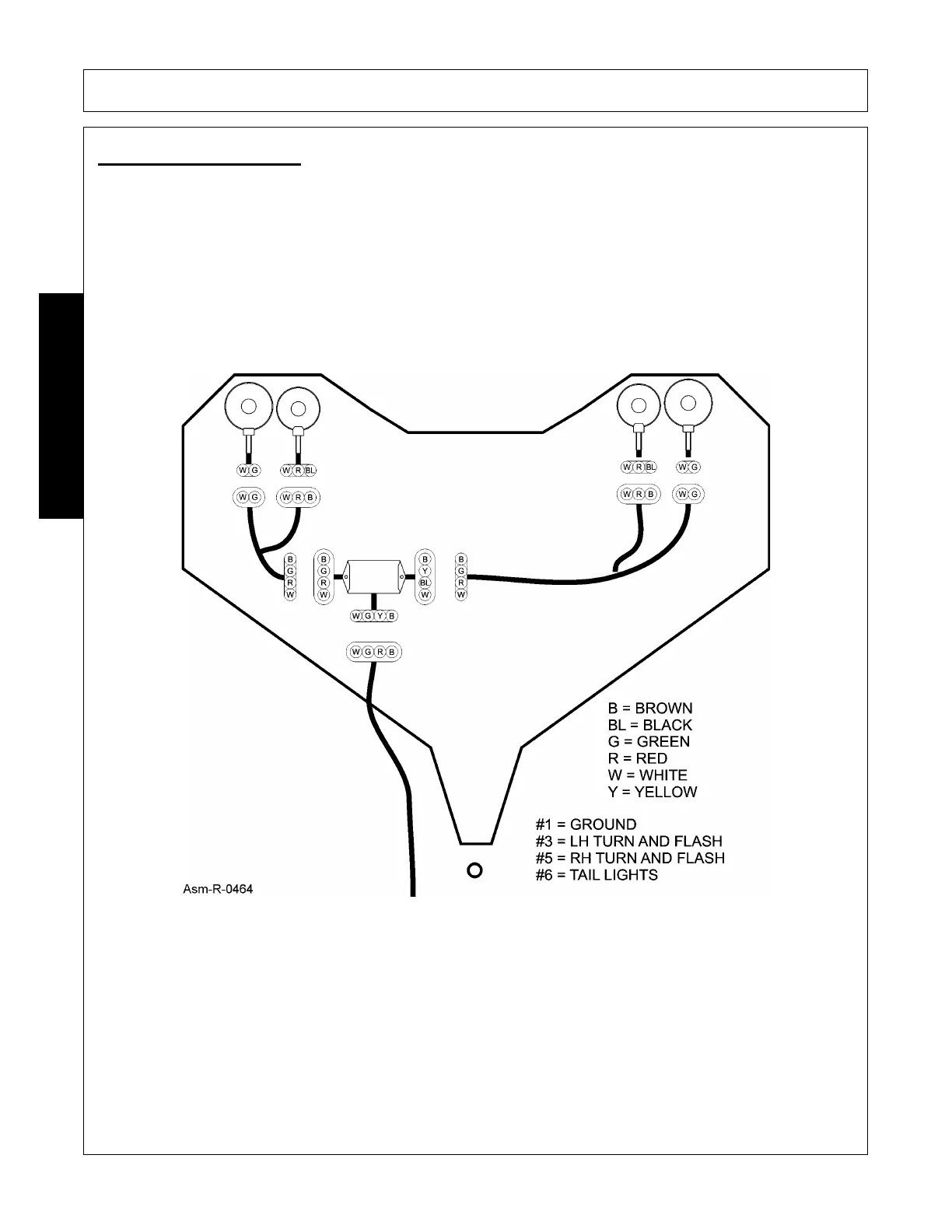

WIRING OF LIGHTS
From the light module, plug the 4-pin right signal output plug to the 120” (304 cm) extension harness. Plug the
3-pin plug to the red lamp and the 2-pin plug to the amber plug. Repeat for the other wing.
Plug the main harness to the input end of the light module. Using plastic wire ties, route the harness along the
hydraulic hoses to the front of the rotary cutter. Allow enough slack in harness for turning.
Test the circuit. The lights should operate in unison with your tractor lights. If the turning lamps are opposite to
the tractor, reverse the output to extension harness connections. If the lights do not work at all, check that all
connections are snug.
