6. SETTING THE MOWER
Properly setting the cutting height is essential for efficient and safe operation. A properly set mower will make
a more uniform cut, distribute clippings more evenly, require minimal tractor work, and follow the contour of
uneven terrain. NOTE: Avoid very low cutting heights, striking the ground with the blades gives the most
damaging shock loads and will cause damage to the mower and drive. Blades contacting the ground may
cause objects to be thrown out from under the mower deck. Always avoid operating the mower at a height
which causes the blades to contact the ground. OPS-U- 0010 str
Never work under the Implement, the framework, or any lifted
component unless the Implement is securely supported or blocked up to
prevent sudden or inadvertent falling which could cause death or
serious injury.
(SG-14)str

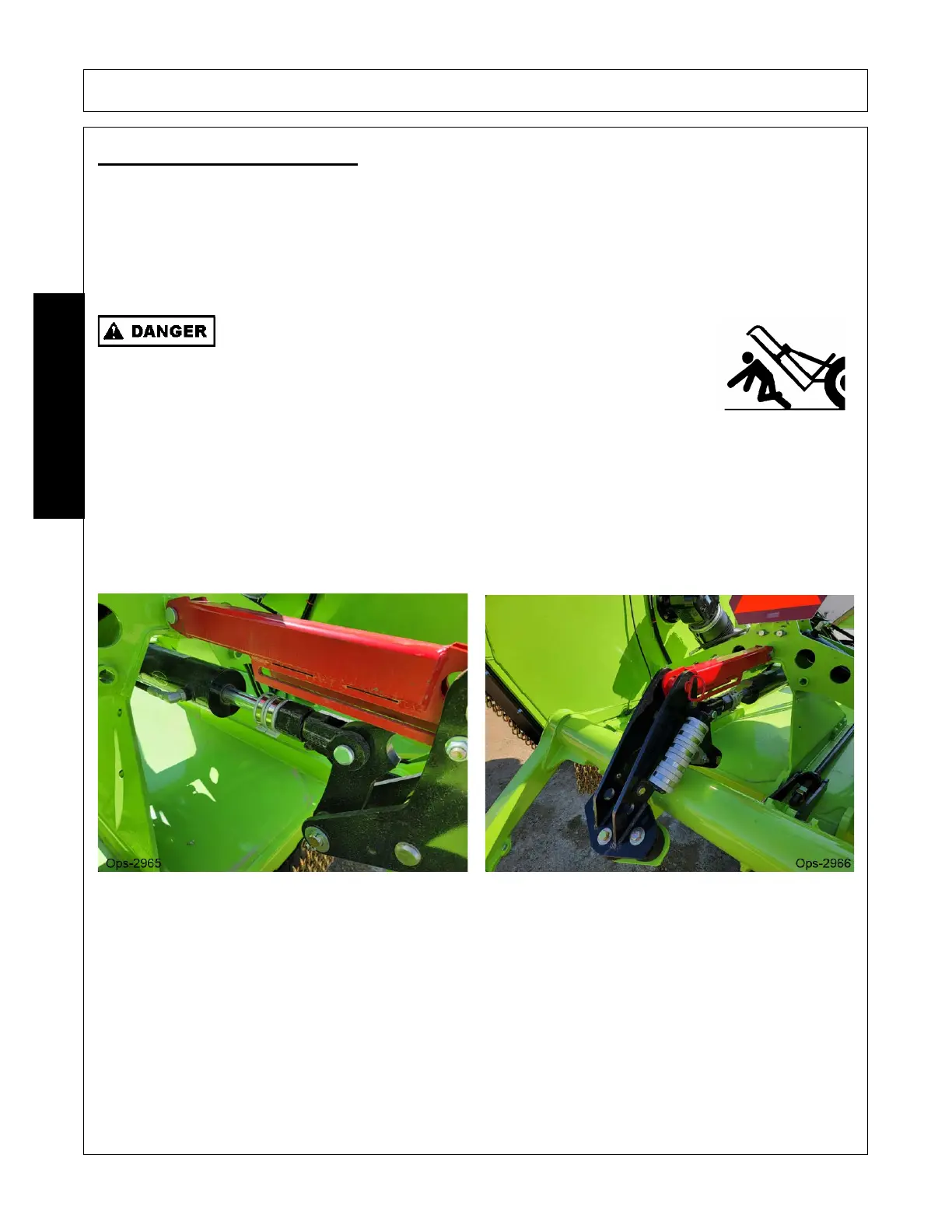

Setting Cutting Height
The cut height for the center section is set by extending or shortening the depth collar
located on the center lift cylinder. Additional Depth Stop Spacers can be used. Unused Depth Stop Spacers can
be stored on right hand of suspension link. Cutting height for the wing cylinders will be automatically controlled
by the hydraulic phasing system.
NOTE: Additional Depth Stop Spacers are not supplied with unit.
The cutter should always be operated in the highest position that will produce the desired cutting results.
Operating at increased heights will minimize the chances of blades contacting the ground and discharging
debris.
1. Place the tractor and cutter on a level surface and lower wing sections.
2. Extend or retract the center section main hydraulic lift cylinder to the desired cutting. A depth stop collar,
provided on the cylinder, will be used to maintain a set cutting height.
3. Shut down the tractor, place the transmission in park, and set the parking brake before dismounting.
4. Adjust the center section hydraulic cylinder depth stop collar to set the cutting height, so that the cylinder
returns to the preset cutting height each time the mower is lowered. It may be necessary to use spacer ring
with the depth stop collars in order to preset the cutter for higher cutting heights.
