OPERATION
XH1500/XH1000 06-24 Operation Section 4-15
OPERATION
© 2024 Alamo Group Inc.

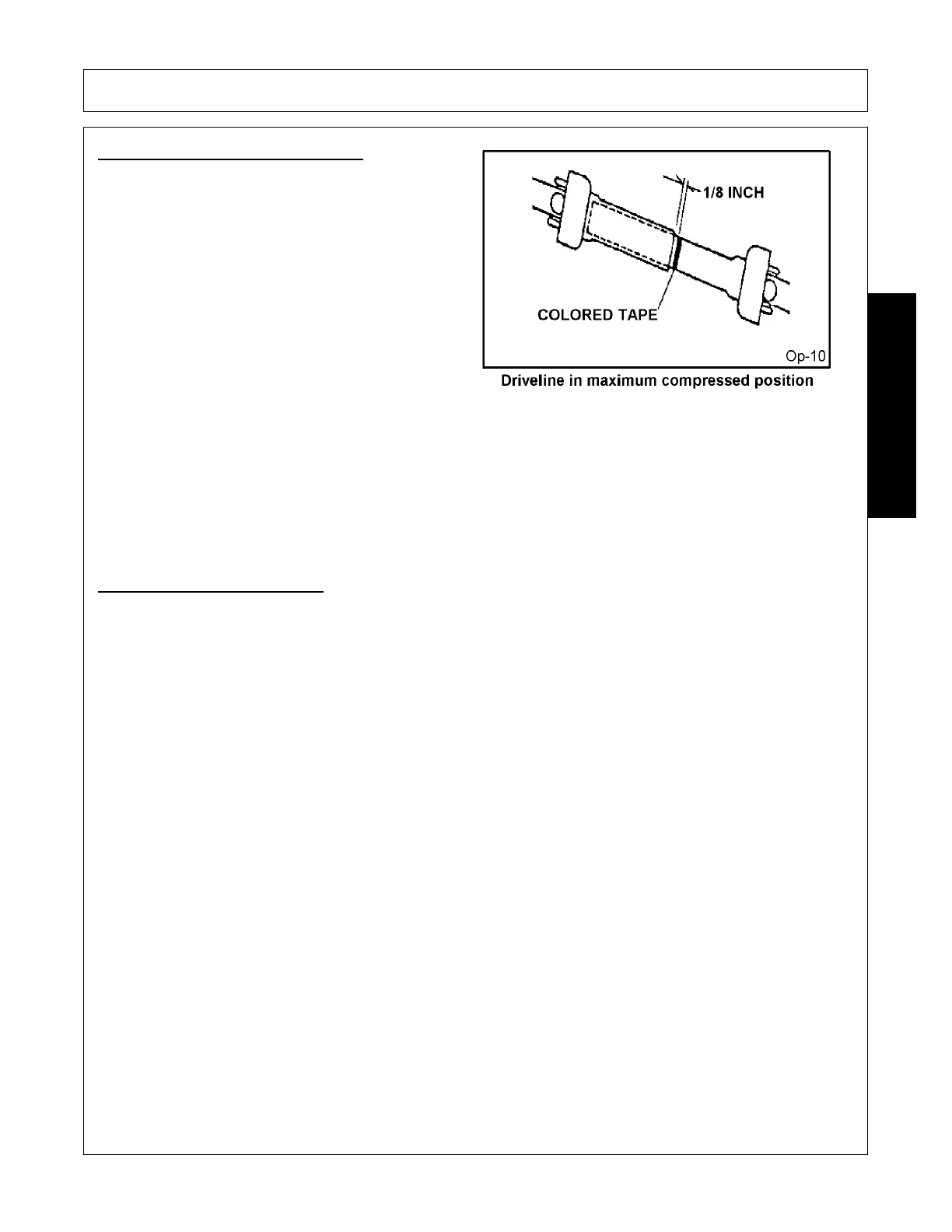

“Bottoming Out” Check Procedures
Disconnect driveline from the tractor and slide
the profiles together until fully compressed.
Place a mark on the inner shield 1/8” from the
end of the outer shield and reattach the driveline
to the PTO shaft.
With the PTO NOT TURNING, slowly drive the
tractor with mower attached through the sharp-
est turn possible and watch shaft movement.
With the PTO NOT TURNING, slowly drive the
tractor with the mower attached through the
most severe terrain conditions expected and
watch shaft movement.
If the distance between the mark and the outer
shield becomes less than 2” at any point there is
a potential problem bottoming out the driveline
and the driveline should be replaced with shorter
driveline. Contact your local dealer or Technical
Service for proper directions. OPS-R-0004_J str
NOTE: If tractor has a 540 RPM PTO, adjusting to a 16 inch position will gain additional 2 inches of telescoping
length.
Engagement Check Procedure
With the driveline attached, position the mower to the point where the telescoping driveline is at its maxi-
mum extension. Completely shut down the tractor and secure in position.
Mark the inner driveline shield 1/8” from the end of the outer shield.
Measure the distance from the mark to the end of the inner profile. This length is the amount the driveline
profiles were engaged.
Disconnect the driveline from the tractor and separate the two driveline halves.
If the engaged length is less than 6”, the shaft is considered too short and should be replaced with a longer
shaft. Consult an authorized dealer to purchase the required driveline length.
NOTE: If the driveline cannot be shortened and still maintain the required profile engagement, the operator
must be made aware of terrain conditions and avoid situations which pose a potential problem to avoid
damaging the driveline or move drawbar to 16” or 20” position for required clearance.
