Assembly
03.00 | MEG 50 EC | Assembly and Operating Manual | en | 389201
17
4 Assembly
4.1 Mechanical connection
4.1.1 Gripper

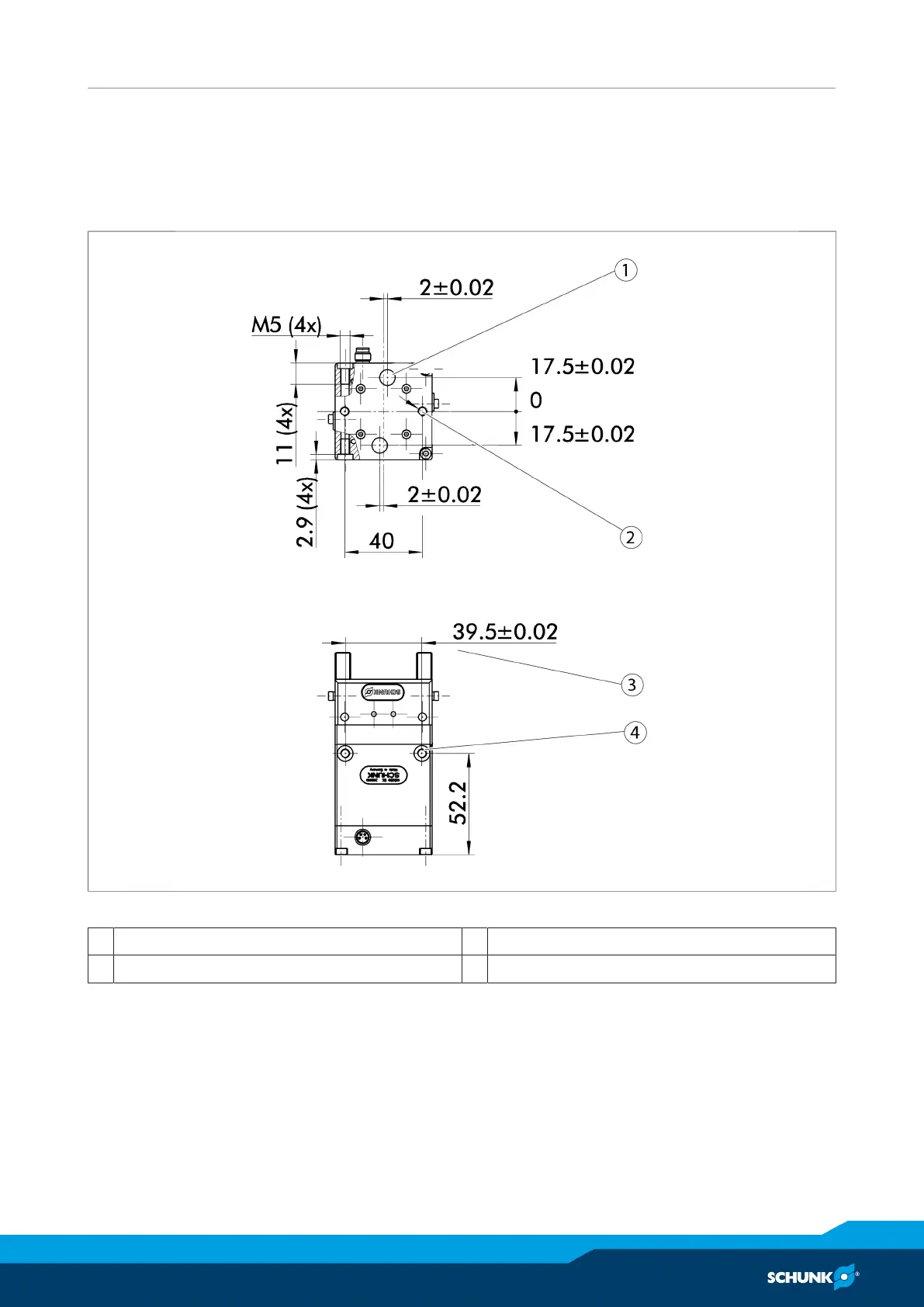

Connection dimensions MEG 50 EC
1 for centering ∅8 ± 0.1 for M5 thread 3 for bore hole ∅8 ± 0.1 for M5 thread
2 Centering Ø8 (2x) 4 Centering ∅8 (4x)
The gripper is mounted to the base or side via M5 threads. The
centering is performed via the centering sleeves contained in the
accessory kit.
