Assembly
18
03.00 | MEG 50 EC | Assembly and Operating Manual | en | 389201

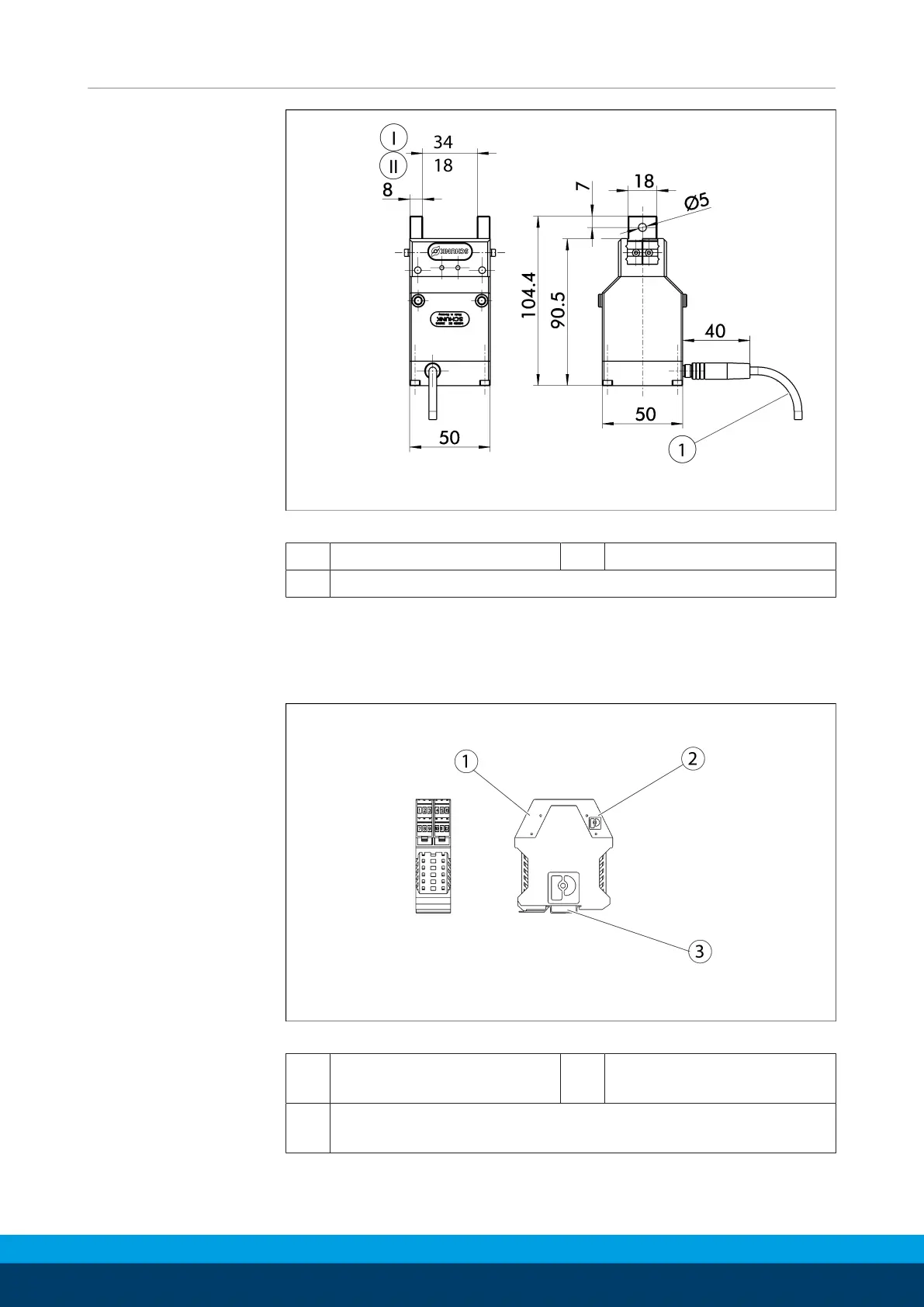

Dimensions MEG 50 EC (5xD bending radius applies to SCHUNK connection cables)
I OPEN II CLOSED
1 5xD bending radius
4.1.2 Controller
The MEG C controller is mounted to a mounting rail as per EN
50022 via the metal foot locking device.
Mounting MEG C 50
1 Terminals for PLC 3 Assembly on mounting rail
as per EN 50022
2 Terminals for MEG-EC assembly on mounting rail as per EN
50022
