Assembly
05.00 | PGN-plus-P | Assembly- and Operating Manual | en | 0389753
23
Item Mounting PGN-plus-P
40 50 64 80 100 125 160 200 240
1 Thread in the
main air connec-
tions
M3 M5 M5 M5
G1/8 G1/8 G1/8 G1/8 G1/8
Max. depth of
engagement
from locating
surface [mm]
4 5 6 6 7 7 7 7 7
2 Thread in the air
purge connec-
tion
M3 M3 M5 M5 M5 M5 M5 M5 M5
Max. depth of
engagement
from locating
surface [mm]
3.9 5 6 6 6 6 6 6 6
Air purge connection
The air purge is used in order to make it more difficult for dirt and
dust to penetrate into the product and the guiding areas. With the
dust-tight variant (SD), it is necessary to use the air purge connec-
tion in order to achieve the specified protection class.
5.3 Attaching additional structure
NOTE
With the dust-tight variant (SD), no additional structure can be at-
tached.

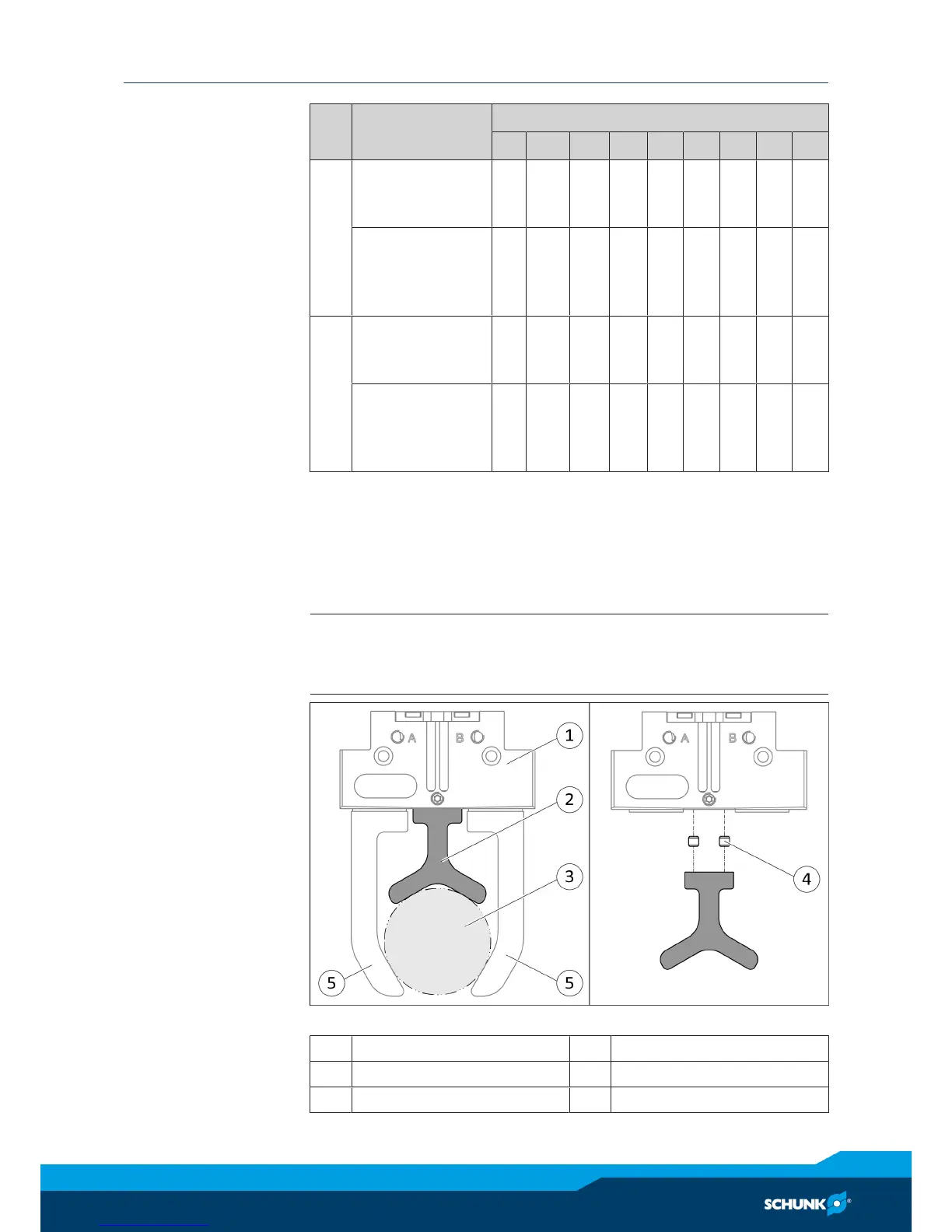

Gripper with additional structure
1 Gripper 4 Centering sleeve
2 Additional structure 5 Gripper fingers
3 Workpiece
