SCHUNK PGN-plus-P 64 - Mounting MMS 22-PI1 Programmable Magnetic Switch

Assembly
34
05.00 | PGN-plus-P | Assembly- and Operating Manual | en | 0389753
5.4.9 Mounting MMS 22-PI1 programmable magnetic switch
NOTICE
Material damage due to an incorrect tightening torque!
If the threaded pin is tightened with an incorrect tightening
torque, the product may be damaged.
• Observe a maximum tightening torque of 10 Ncm for the set-
screws.
NOTE
If there is no T-nut available, slide the sensor according to dimen-
sion I1 into the groove (2), Setting dimensions [
}
26].

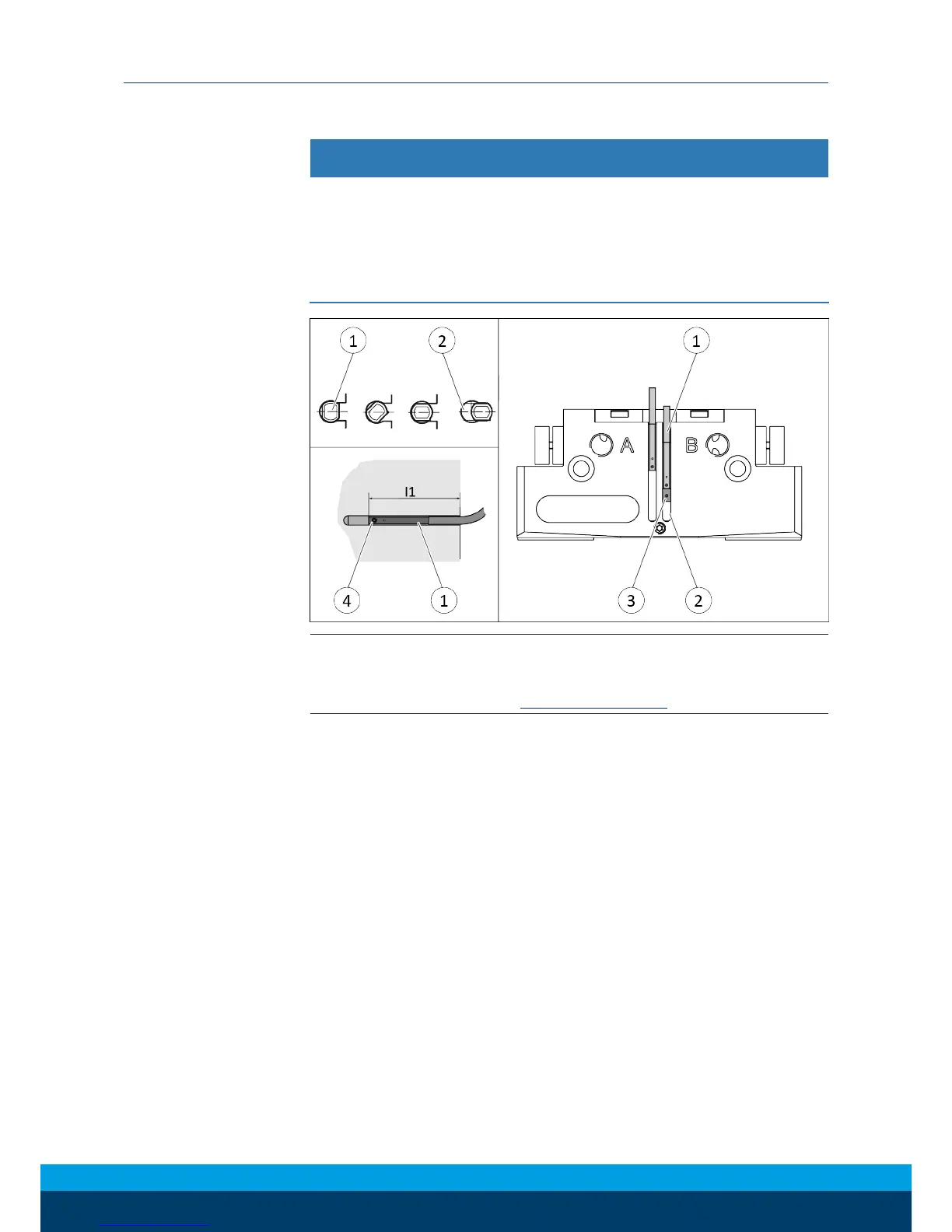

Ø Turn the sensor 1 (1) into the groove (2).
OR: Slide the sensor 1 (1) into the groove (2) until the sensor 1
(1) stops at the T-nut (3).
Ø Secure the sensor 1 (1) using the set-screw (4).
Tightening torque: 10Ncm
Ø Adjust sensor 1 (1), see sensor assembly and operating manual.
Ø Repeat steps for sensor 2.
